iming
The time between the start of exposure and the rise of the Integrate Enabled (Int-En)
signal will be less than 10 nanoseconds. The time between the end of exposure and
the fall of Int-En signal will also be less than 10 nanoseconds. This is very good
performance, and is due to the design of the camera output port circuitry.
1.6 Integrate Enabled Signal T

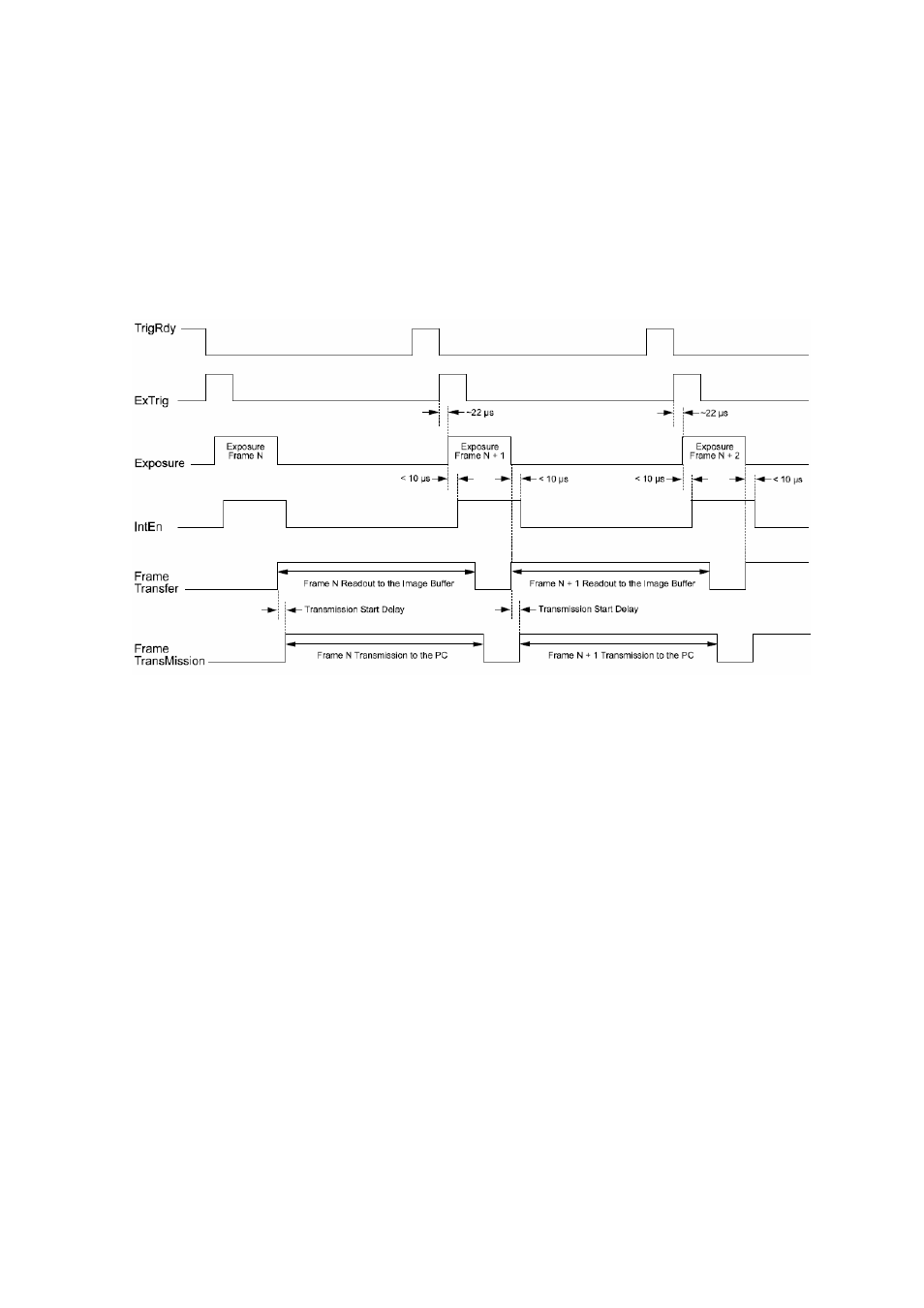

Figure 1-12: MAVIS IM-30/IM-100 Camera Timing Chart
- 19 -
