global enable bit. It can only be enabled or disabled
using the EPFW bit.
Simulated Interrupts
Except for PFW, any interrupt can be forced by setting
the corresponding flag to a logic 1 in software. This
causes the code to jump to the appropriate interrupt
vector. Clearing the appropriate flag manually will clear
a pending interrupt. Note that the PFW flag can not be
written by software.

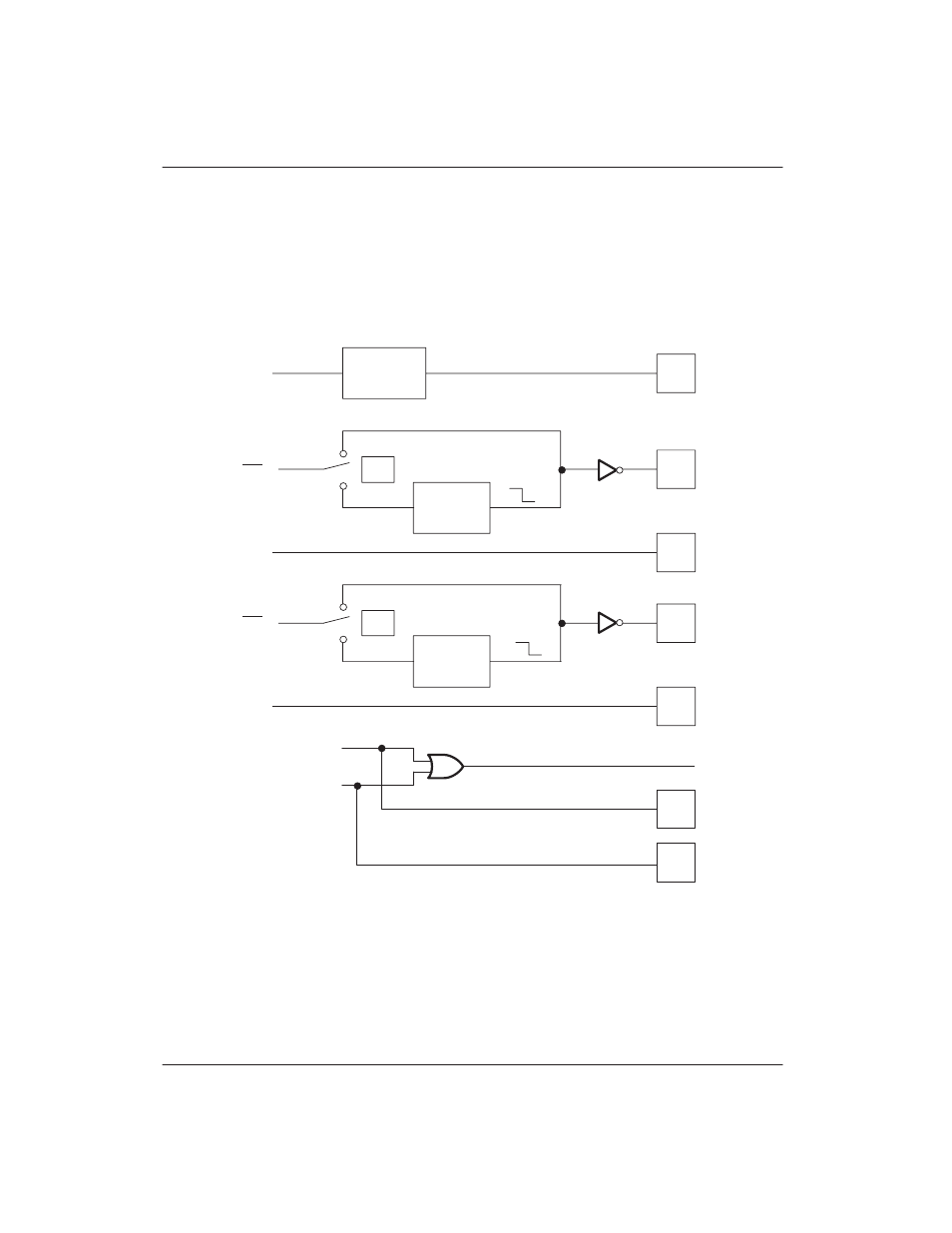

INTERRUPT REQUEST SOURCES Figure 11–1
PFW
IEO
TFO
IE1
TF1
0
1
0
1
V PFW
THRESHOLD
DETECTOR
1 TO 0
TRANSITION
DETECTOR
1 TO 0
TRANSITION
DETECTOR
IT0
IT1
V
CC
TIMER 0
OVERFLOW
TIMER 1
OVERFLOW
INT0
INT1
TI
RI
SERIAL WORD TRANSMIT
SERIAL WORD RECEIVED
SERIAL INTERRUPT
