8
ASSEMBLY - Pedals

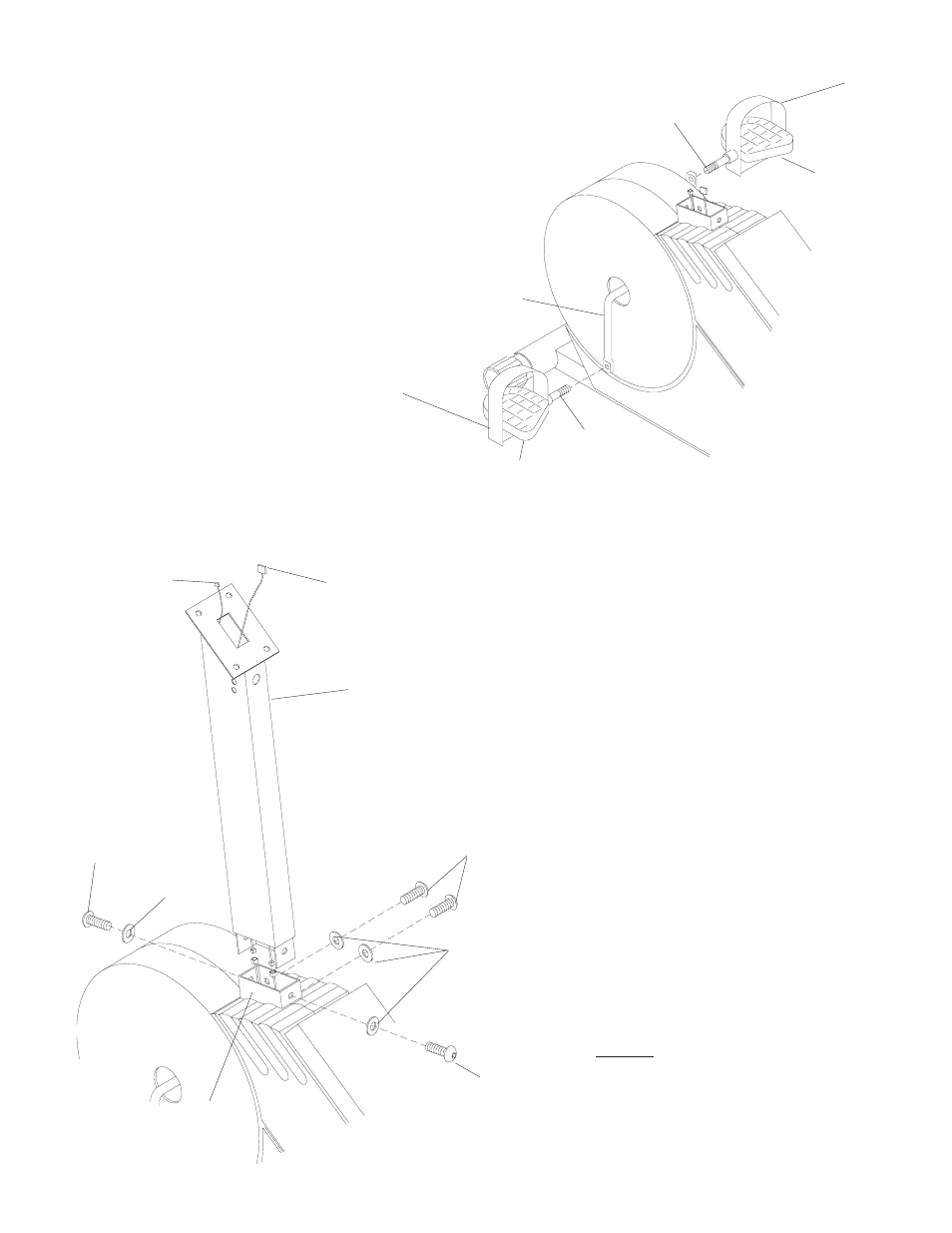

FIGURE 6
FIGURE 6
Step 13. Thread SHAFTS of PEDALS (34 RIGHT and
35 LEFT) into CRANK (36) and tighten with
wrench.
Step 14. Select desired slot and attach PEDAL STRAPS
(37) to PEDALS (34 & 35).
35
LEFT
PEDAL
SHAFT
36
CRANK
FIGURE 7
Step 15. Remove BUTTON HEAD SCREWS
(24) and M8 WASHERS (4) from
FRAME (3).
Step 16. Connect the PICKUP WIRE and
EXTENSION WIRE to WIRES in
FRAME (3).
Step 17. Slide CONSOLE TUBE (39) over
WIRES and into FRAME (3). Fasten
with hardware removed in Step 15.
NOTE: DO NOT pinch wires while at-
taching CONSOLE TUBE.
37
PEDAL
STRAP
PICKUP
WIRE
4
M8
WASHER
3
FRAME
39
CONSOLE
TUBE
SHAFT
34
RIGHT
PEDAL
4
M8
WASHER
24
BUTTON
HEAD
SCREW
24
BUTTON
HEAD
SCREW
24
BUTTON
HEAD
SCREW
FIGURE 7
37
PEDAL
STRAP
ASSEMBLY - Console Tube
EXTENSION
WIRE
