7
ASSEMBLY - Seat

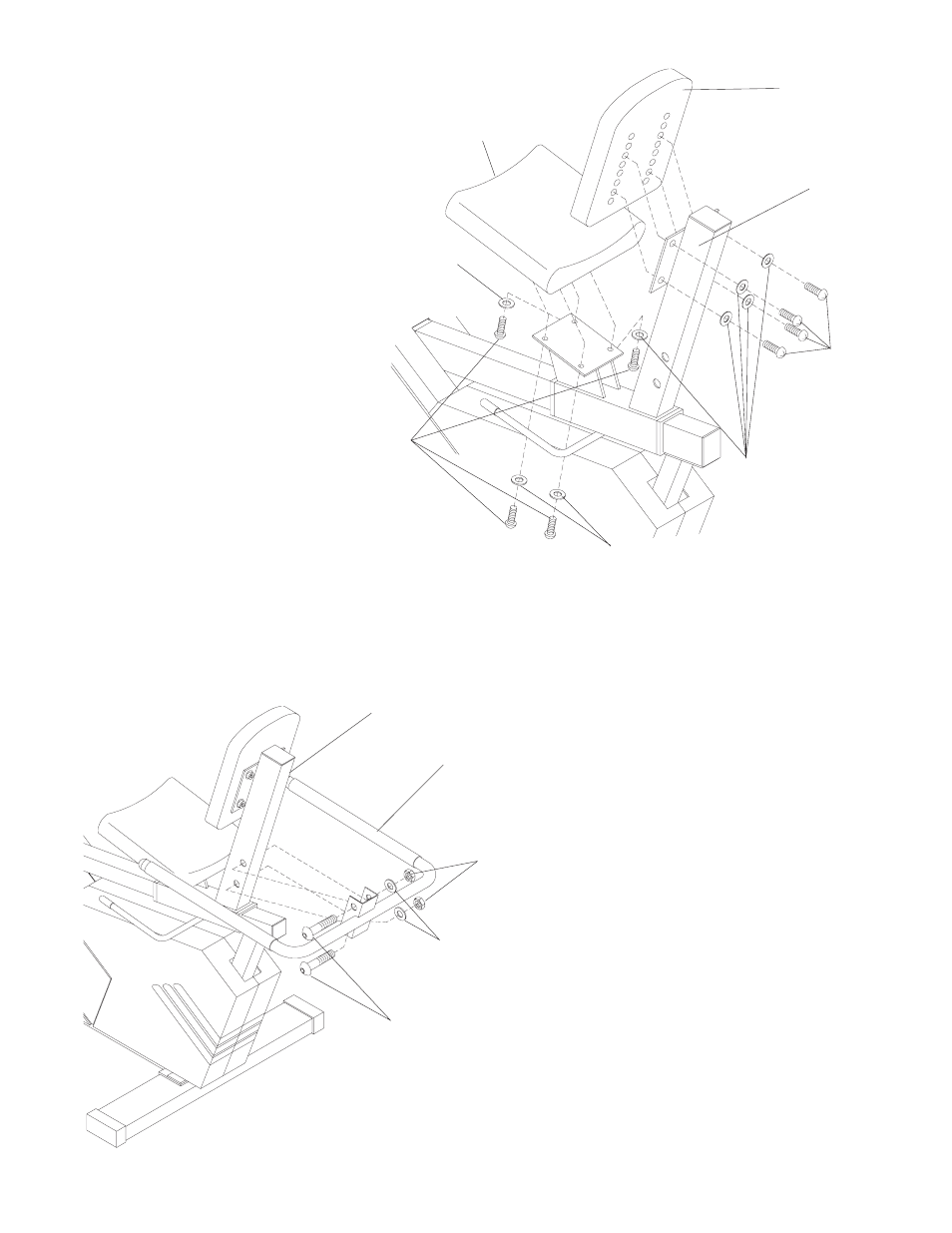

FIGURE 4
FIGURE 5
19
SEAT
CARRIAGE
28
M6
WASHER
26
BACK
CUSHION
25
SEAT
CUSHION
27
PHILLIPS
HEAD
SCREW
28
M6
WASHER
FIGURE 4
Step 10. Attach SEAT CUSHION (25) to
SEAT CARRIAGE (19) with
PHILLIPS HEAD SCREWS
(27) and M6 WASHERS (28).
Step 11. Attach BACK CUSHION (26) to
one of "four" positions with
PHILLIPS HEAD SCREWS (27)
and M6 WASHERS (28).
Select the proper position
according to your height.
FIGURE 5
Step 12. Attach HANDLEBAR (29) to SEAT
CARRIAGE (19) with BUTTON
HEAD SCREWS (30), M8 WASH-
ERS (4), and M8 LOCKNUTS (31).
31
M8
LOCKNUT
4
M8
WASHER
30
BUTTON
HEAD
SCREW
29
HANDLEBAR
19
SEAT
CARRIAGE
27
PHILLIPS
HEAD
SCREW
28
M6
WASHER
ASSEMBLY - Handlebar
