ASSEMBLY - Seat Frame
24
BUTTON
HEAD
SCREW
4
M8
WASHER
4
M8
WASHER
9
SUPPORT
TUBE
24
BUTTON
HEAD
SCREW
3
FRAME

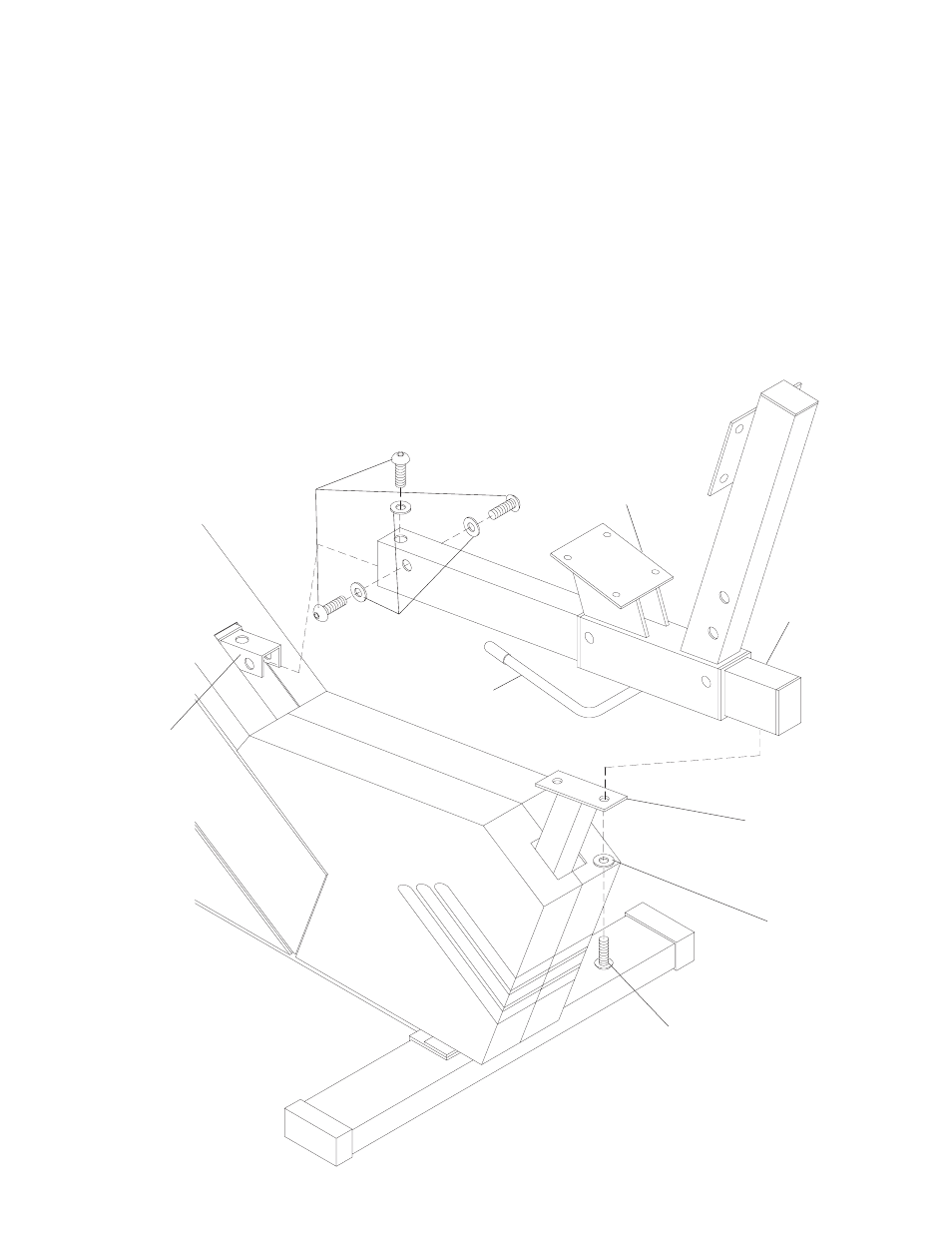

FIGURE 3
Step 5. Remove BUTTON HEAD SCREW (24) and M8 WASHER (4) from end of CARRIAGE TUBE
(23).
Step 6. Push LOCKING ARM up, insert CARRIAGE TUBE (23) through SEAT CARRIAGE (19) and
release LOCKING ARM. This will hold CARRIAGE TUBE in place.
Step 7. Remove BUTTON HEAD SCREWS (24) and M8 WASHERS (4) from FRAME (3).
Step 8. Slide CARRIAGE TUBE (23) over end of FRAME (3) and fasten with hardware removed in
Step 7.
Step 9. Attach CARRIAGE TUBE (23) to SUPPORT TUBE (9) with hardware
removed in Step 5. Secure REAR FOOT TUBE NUTS now.
FIGURE 3
23
CARRIAGE
TUBE
19
SEAT
CARRIAGE
LOCKING
ARM
