FOCUS Enhancements Bridge/Router MX-4DV User Manual

Page 16

MX-4 DV U

SER

UIDE

HAPTER

Using the Route

Function

The Route function ensures that the MX-4 DV understands where your input devices are connected
on the rear panel. If you connect Y/C devices to the IN1, IN2, IN3, and/or IN4 jacks, re-routing is
not necessary. Go on to the next section, “Running the Demo”.
•

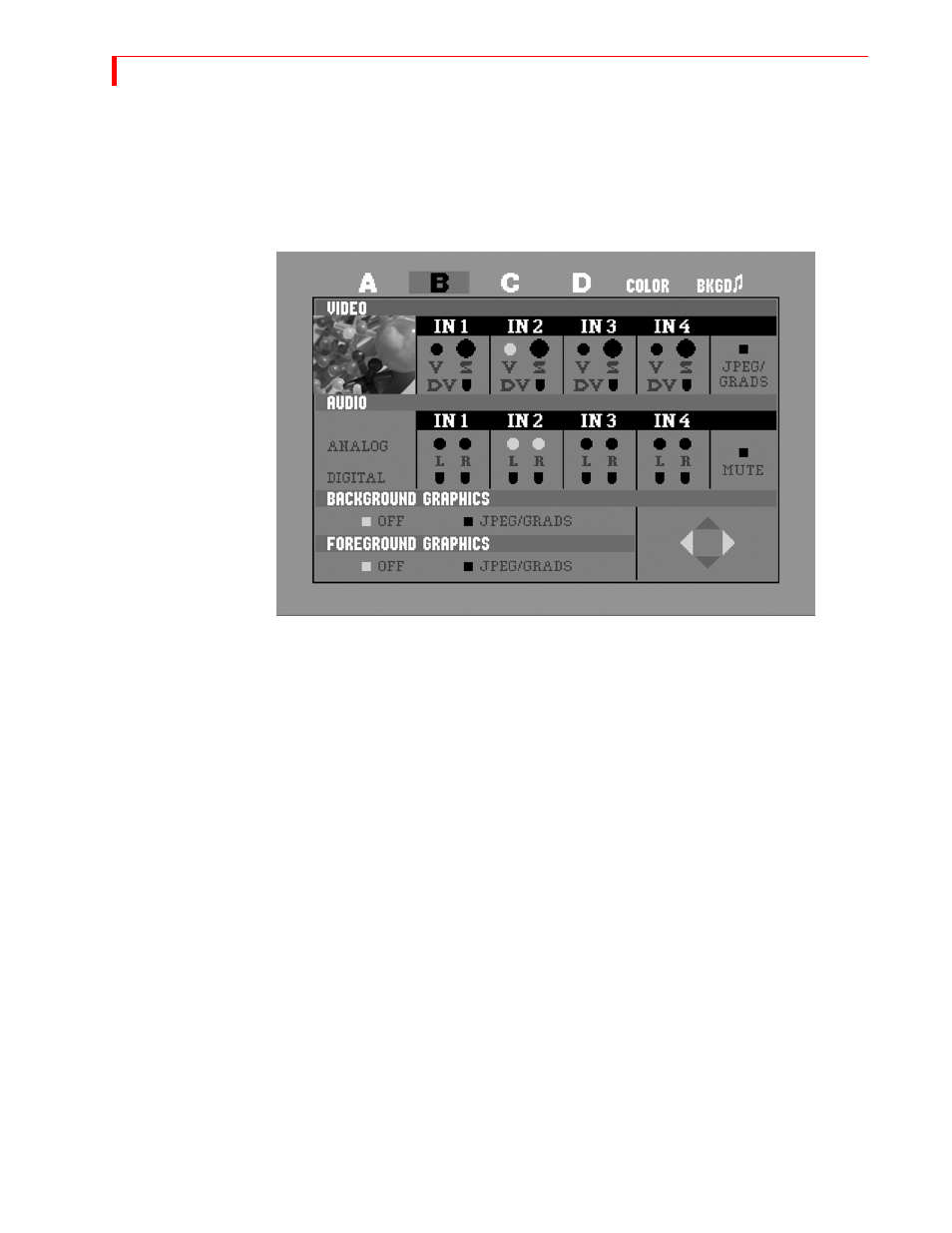

After starting the MX-4 DV with all devices connected and turned on, press ROUTE to dis-
play the Route screen.

•

Press the

LEFT

ARROW

or the

RIGHT

ARROW

to select the appropriate input S

(Y/C), V (Composite), or DV.

•

To route other inputs to different channels, press NEXT/X, where X represents the chan-
nel to which you want to route. Then repeat the preceding step.

•

Press ROUTE again to exit from the Route screen.

Running the Demo

The demo gives you a quick look at some of the MX-4 DV’s important features and assortment of
transitions.
•

Press

the

SHIFT

DEMO

DISPLAY

buttons at the same time.

You should see the two sources alternating, with a variety of transition effects in between.

•

Press any key to stop the demo at any time.
