-3- 595-5506-12
Chime with Separate Decorative Cover:
The chime base can be mounted in two different ways. The base can be mounted
using the keyholes or the three mounting holes. The base may be mounted hori-
zontally or vertically depending upon the specific model purchased.
Keyhole Mounting:
• Use template on back cover of manual for screw placement. Note: Make
sure holes are level before drilling.
• Drill two 7/32" diameter pilot holes for wall anchors and insert anchors.
• Mount keyhole screws to wall leaving about 1/8" (3 mm) of the screw threads
exposed (see Figure 5).
• Using keyholes on back of chime base, hang base on screws.
• Place chime cover over tab(s) on top of chime base.
Screw Mounting:
• Remove batteries from chime.
• Place chime against wall and verify the chime is level.
• Use chime holes as a template (see Figure 6). Drill three 7/32" diameter pilot
holes for wall anchors (provided) and insert anchors.
• Insert 3 screws (provided) through holes in back of chime.
• Verify chime is level and tighten screws securely.
• Replace batteries (see Figure 2).
• Place chime cover over tab(s) on top of chime base.

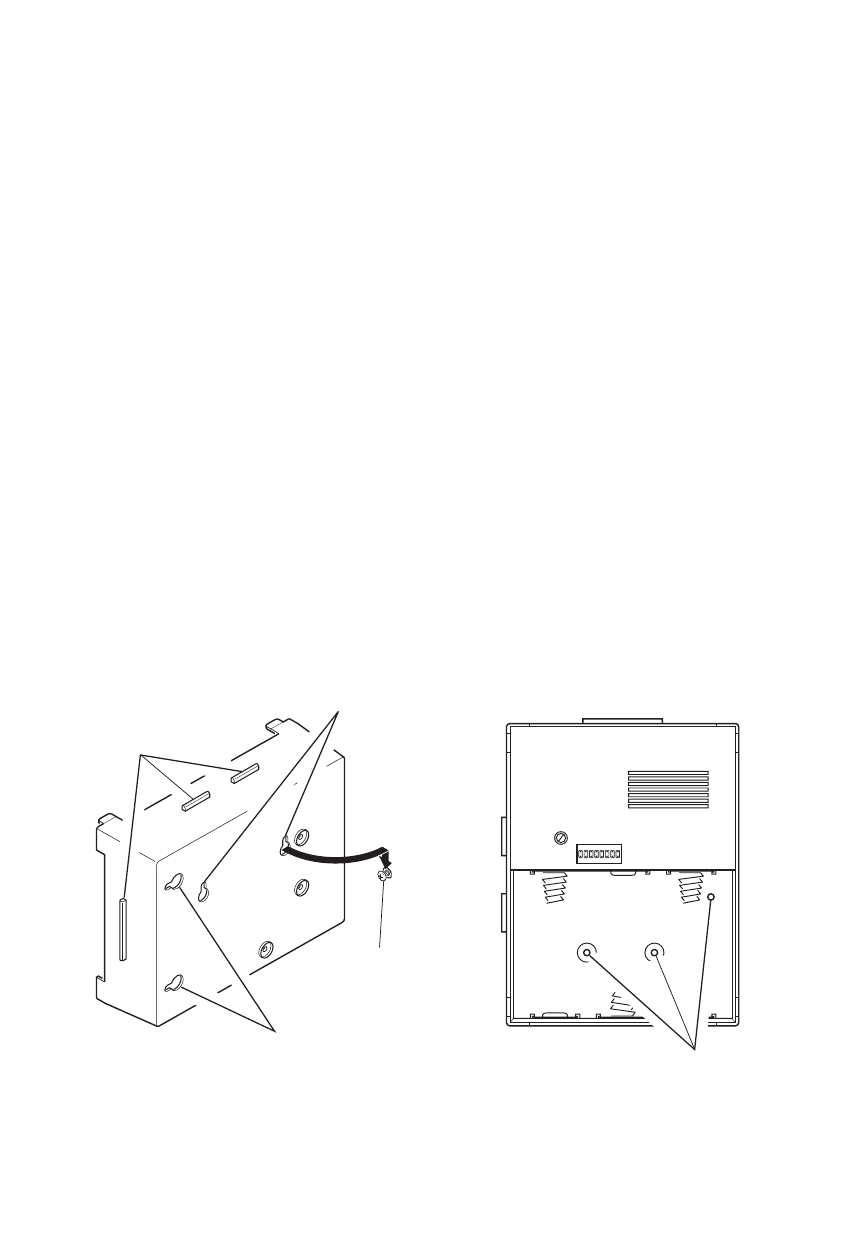

Figure 5 - Back of Chime Figure 6 - Inside Chime
Keyhole Slots
(Horizontal Mounting)
Keyhole Slots
(Vertical Mounting)
Cover Hanging
Tabs
Keyhole
Screw (x2)
Screw Mounting
Holes
Note: Chime shown
mounted vertically. Note: Chime shown
mounted horizontally.
