Heatilator • Caliber CD Series • 4040-263 Rev N • 11/08
31

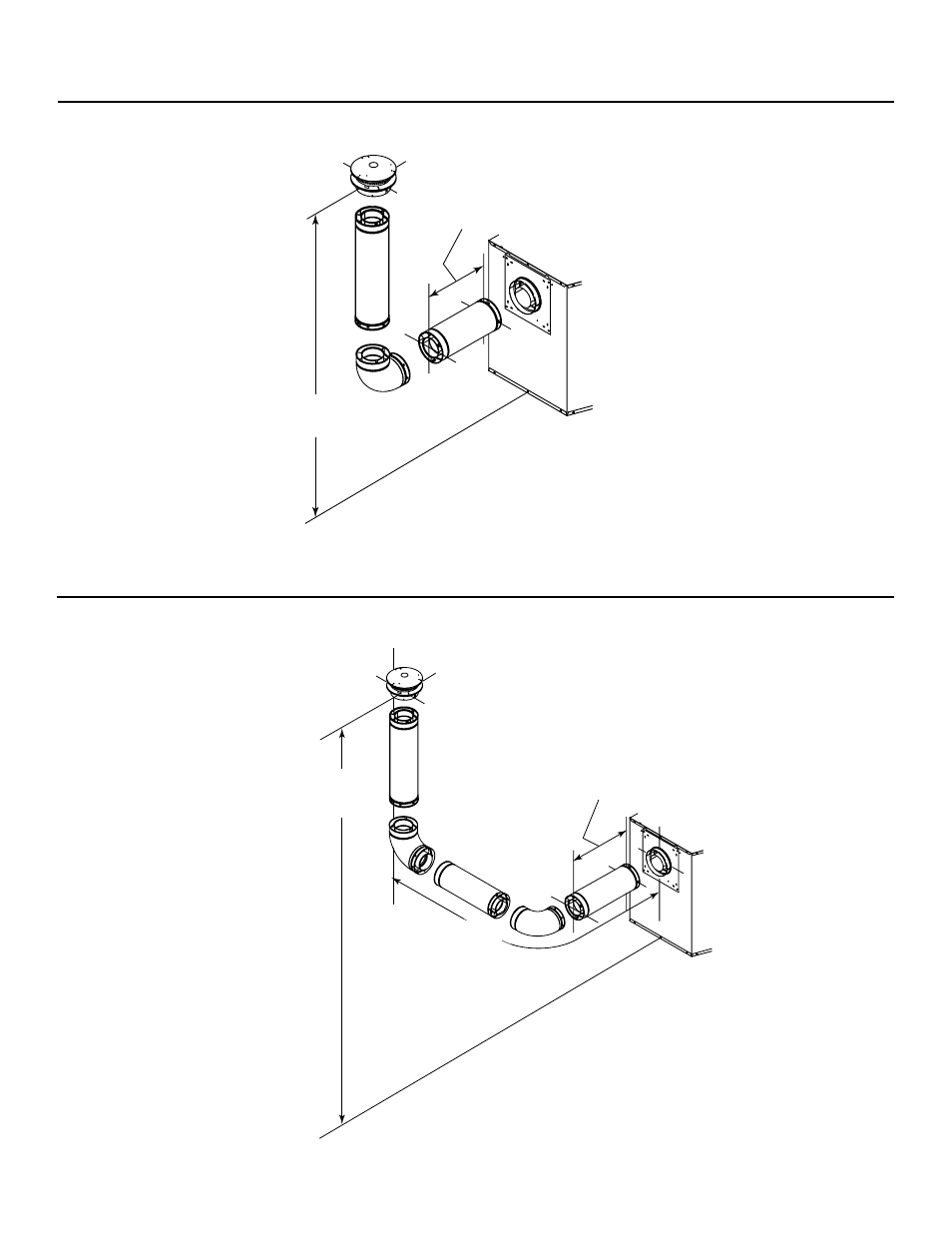

4. Rear Vent - Vertical Termination
One Elbow
Figure 7.14
Two Elbows
Figure 7.15
12 ft (3.66 m) min.
60 ft (18.29 m) max.
0 min.
6 ft (1.83 m) max.
12 ft (3.66 m) min.
60 ft (18.29 m) max.
0 min.
6 ft (1.83 m) max.
Maximum horizontal
run is 100% of
vertical, but cannot
exceed 26 ft (7.92 m)
