580 601 00 18-36 CHUTE, UPPER
582 601 00 13-91 SCREW, 5/16-18X.75 SLTRMA
584 601 00 14-64 NUT, 5/16-18 HEXNYL
585 601 00 13-91 SCREW, 5/16-18X.75
586 601 00 15-24 WASHER, PLASTIC .315X.75X.064
587 601 00 14-64 NUT, 5/16-18 HEXNYL
590 601 00 08-99 BOLT, 5/16-18X1.00 CARR.
591 601 00 06-54 FLATWASHER .469X.92X.066
593 601 00 15-24 WASHER, PLASTIC .315X.75X.064
594 601 00 00-19 FLATWASHER .344X.69X.065
595 601 00 00-23 WASHER, HVSPTLK .328X.60X.09
596 601 00 00-19 FLATWASHER .344X.69X.065
597 601 00 06-84 KNOB, T 2 BLADE W/5/16-18 NUT
24" SNOW THROWER MODEL ST 724

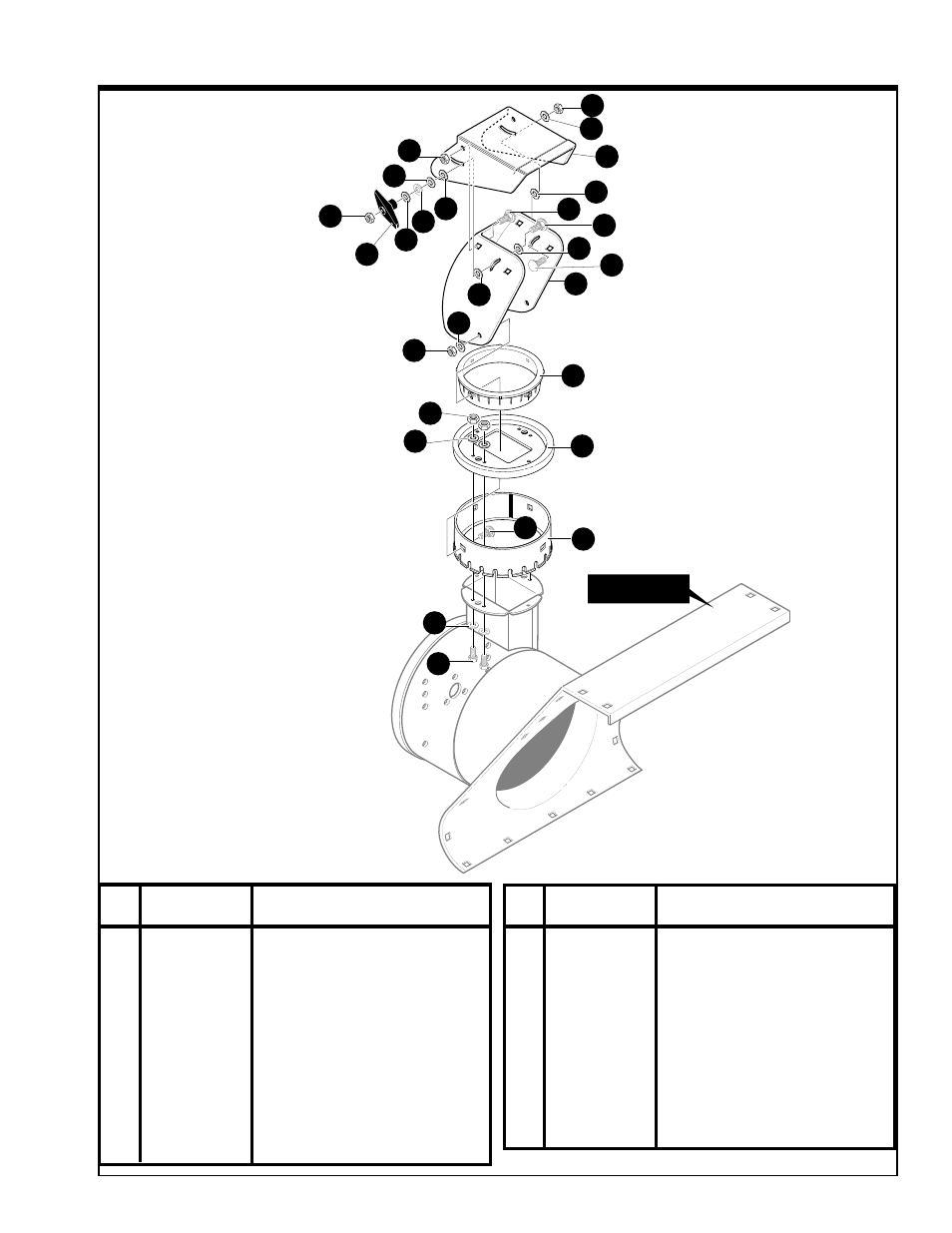

DISCHARGE CHUTE REPAIR PARTS
REF.
NO PART NO. PART NAME
598 601 00 00-12 NUT 5/16-18 REGHEX
600 601 00 18-37 CHUTE, LOWER
601 601 00 08-99 BOLT 5/16-18X1.00 CARR.
602 601 00 00-19 FLATWASHER .344X.69X.065
603 601 00 14-64 NUT 5/16-18 HEXNYL
606 601 00 18-38 COLLAR, CHUTE RECT.
607 601 00 00-68 SCREW 1/4-20X.75
608 601 00 00-18 FLATWASHER, .281X.63X.065
609 601 00 00-62 NUT, 1/4-20 REGHEXCTRLK
610 601 00 18-39 RETAINER, RING INNER
611 601 00 18-40 RETAINER, RING OUTER
337310B
REF.
AUGER HOUSING
587
586
580
586
582
590
591
585
600
593
602
603
598
610
594
584
593
595
596
597
606
609
608
611
601
608
607
