Husqvarna ST724 - Manual (Page 29)

30
REF.
NO PART NO. PART NAME
10 ENGINE 7HP TEC (SEE ENGINE MANUAL)
12 601 00 00-73 SCREW, 5/16-18 X .75
13 601 00 00-23 WASHER, HVSPTLK .328X.60X.09
31 601 00 14-32 GUIDE, ROD BELT RH
33 601 00 00-23 WASHER, HVSPTLK .328X.60X.09
34 601 00 14-33 SCREW 5/16-24X.625
41 601 00 14-32 GUIDE, ROD BELT LH
43 601 00 00-23 WASHER, HVSPTLK .328X.60X.09
44 601 00 14-33 SCREW 5/16-24X.625
51 601 00 14-34 WASHER, CRANKSHAFT
53 601 00 14-36 PULLEY, HALF V3L 2.00X.752ID
54 601 00 14-35 FLATWASHER, .752X.91X.02
57 601 00 14-37 BELT, V 3L 33.13LG
59 601 00 14-38 FLATWASHER, .765X1.12X.06
60 601 00 15-93 PULLEY, ENGINE V 4L
63 601 00 17-37 BELT, V 4L 36.6LG
67 601 00 14-41 FLATWASHER
68 601 00 00-15 WASHER, REGSPTLK .393X.60X.10
69 601 00 05-27 SCREW 3/8-24 X 1.00 NYL
601 00 17-36 OWNER'S MANUAL ENG/FR
ENGINE REPAIR PARTS

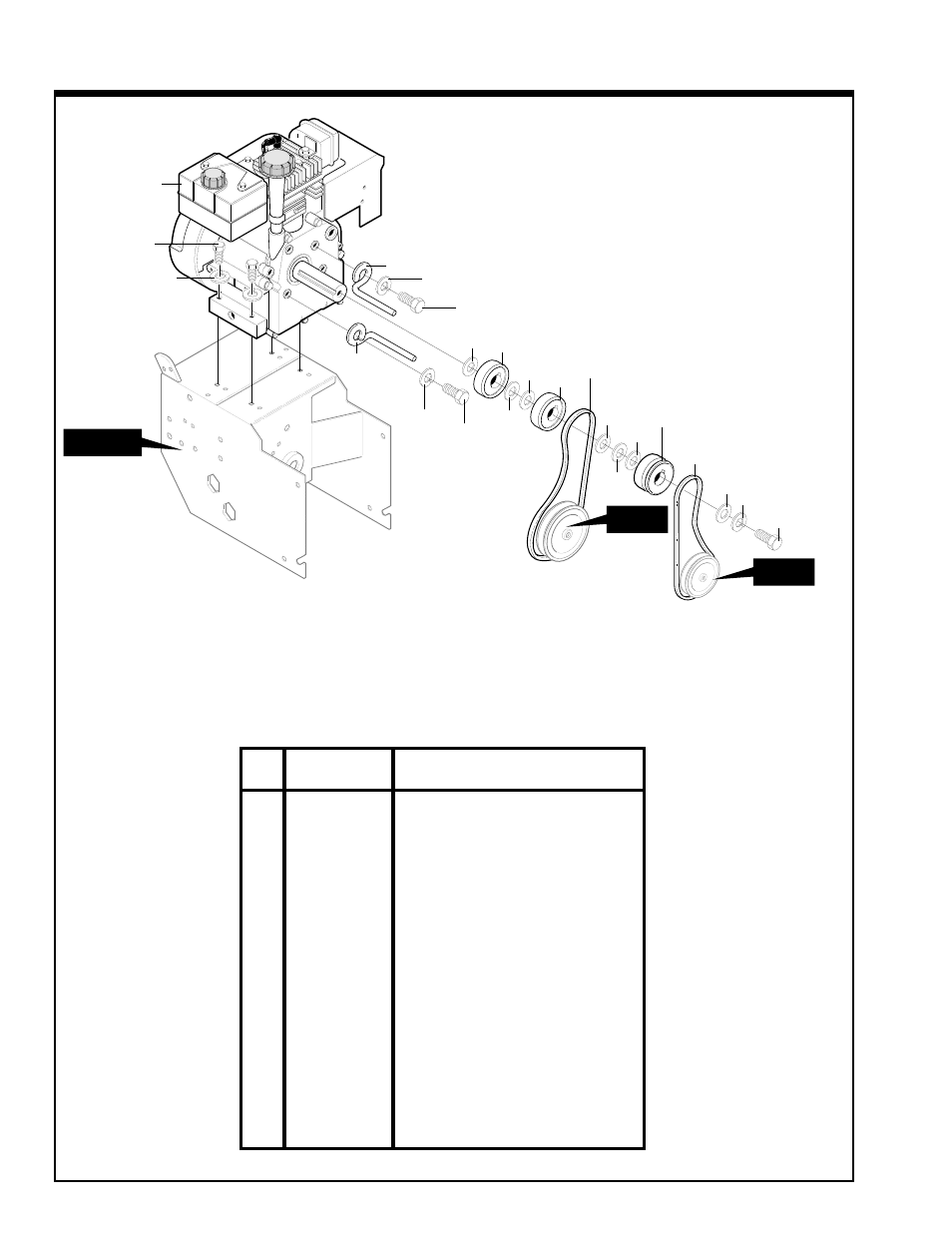

24" SNOW THROWER MODEL ST 724
44
REF. AUGER
FRAME
REF.
PULLEY
REF.
PULLEY
43
41
51 53
54
54
53
57
59
59
59
60
63
67
68
69
33
34
31
10
12
13
319042E
