34
24" SNOW THROWER MODEL ST 724

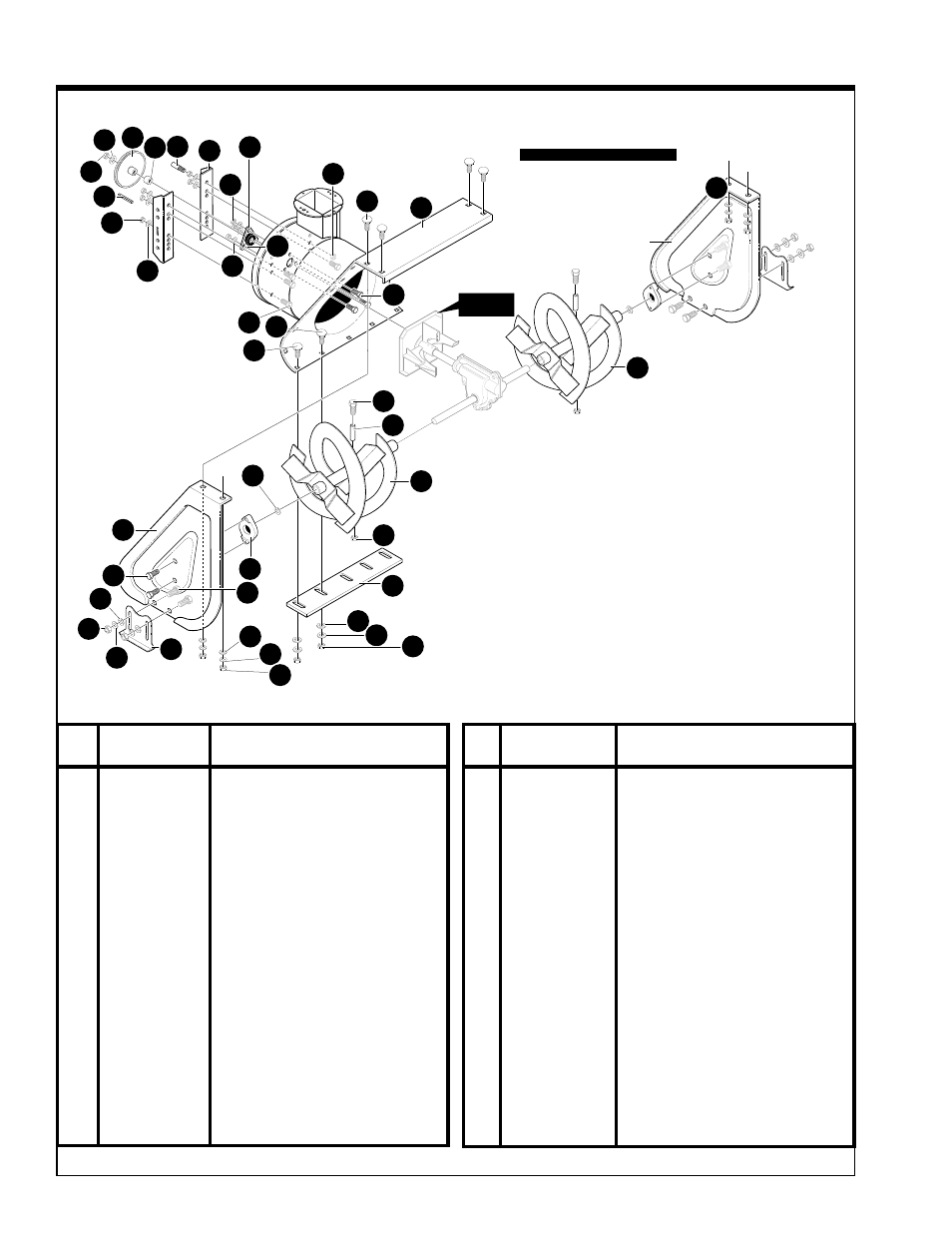

AUGER HOUSING REPAIR PARTS
REF.
NO PART NO. PART NAME
480 601 00 16-09 PULLEY, V4L 8.40
482 601 00 15-07 KEY, SQUARE .18SQX.88LG
483 601 00 14-46 FLATWASHER, .53X1.00X.063
484 601 00 01-07 NUT, 1/2-20 REGHXCTRLK
485 601 00 16-10 SPACER, SLEV .676X1.00X.53
490 601 00 15-09 RETAINER, BALL
491 601 00 05-65 BRING, BALL 6203-2AA-C3
493 601 00 00-73 SCREW 5/16-18X.75
497 601 00 00-23 WASHER, HVSPTLK .328X.60X.09
499 601 00 00-12 NUT, 5/16-18 REGHEX
500 601 00 15-10 HOUSING, ASSY 24/12
501 601 00 16-12 BRACKET & NUTS ASSY
504 601 00 15-12 SCREW 3/8-16X.75
505 601 00 00-15 WASHER, RGSPTLK .393X.68X.10
506 601 00 00-60 NUT 3/8-16 REGHEXCTRLK
508 601 00 17-42 STUD, BRAKE ARM
510 601 00 17-43 BLADE, SCRAPER 24"
511 601 00 14-11 BOLT, 5/16-18X.75 CARR.
512 601 00 00-19 FLATWASHER .344X.69X.065
513 601 00 17-44 WASHER, SPTLK .31X.58X.08
514 601 00 00-12 NUT, 5/16-18 REGHEX
REF.
NO PART NO. PART NAME
520 601 00 18-69 AUGER, ASSY LH 22"
521 601 00 18-70 AUGER, ASSY RH 22"
522 601 00 14-56 SCREW 1/4-20X1.75
523 601 00 15-17 SPACER, SLEV .250X.47X.20
524 601 00 00-62 NUT 1/4-20 REGHEXCTRLK
525 601 00 15-18 AUGER SHAFT BEARING
526 601 00 15-19 FLATWASHER 1.005X1.31X.035
527 601 00 05-20 SCREW, 5/16-18X.75 WAHHTAP
530 601 00 15-21 PLATE, AUGER HSNG RH
531 601 00 15-20 PLATE, AUGER HSNG LH
532 601 00 14-11 BOLT 5/16-18X.75 CARR.
533 601 00 00-19 FLATWASHER .344X.69X.065
534 601 00 00-23 WASHER, HVSPTLK .328X.60X.09
535 601 00 00-12 NUT, 5/16-18 REGHEX
536 601 00 08-99 BOLT, 5/16-18X1.00 CARR.
540 601 00 17-45 SKID, HEIGHT ADJUST
541 601 00 14-11 BOLT, 5/16-18X.75 CARR.
542 601 00 00-19 FLATWASHER .344X.69X.065
543 601 00 00-23 WASHER, HVSPTLK .31X.58X.08
544 601 00 00-12 NUT, 5/16-18 REGHEX
334396C
508
REF.
IMPELLER
BOLT PATTERN ON FRAME BRACKETS
ARE EXCLUSIVE TO 13" TIRE & TRAC
APPLICATIONS.
NOTE
512
513
514
534
533
535
510
524
522
523
52 1
526
525
541
531
527
540
544
543
542
530
52 0
493
500
532
536
511
504
490
499
501
491
497
485
480 483
484
482
506
505
506
