TOP VIEW
1 in. MIN.
3 ft. MAX.
MANTEL
LEG
D. Mantel Projections

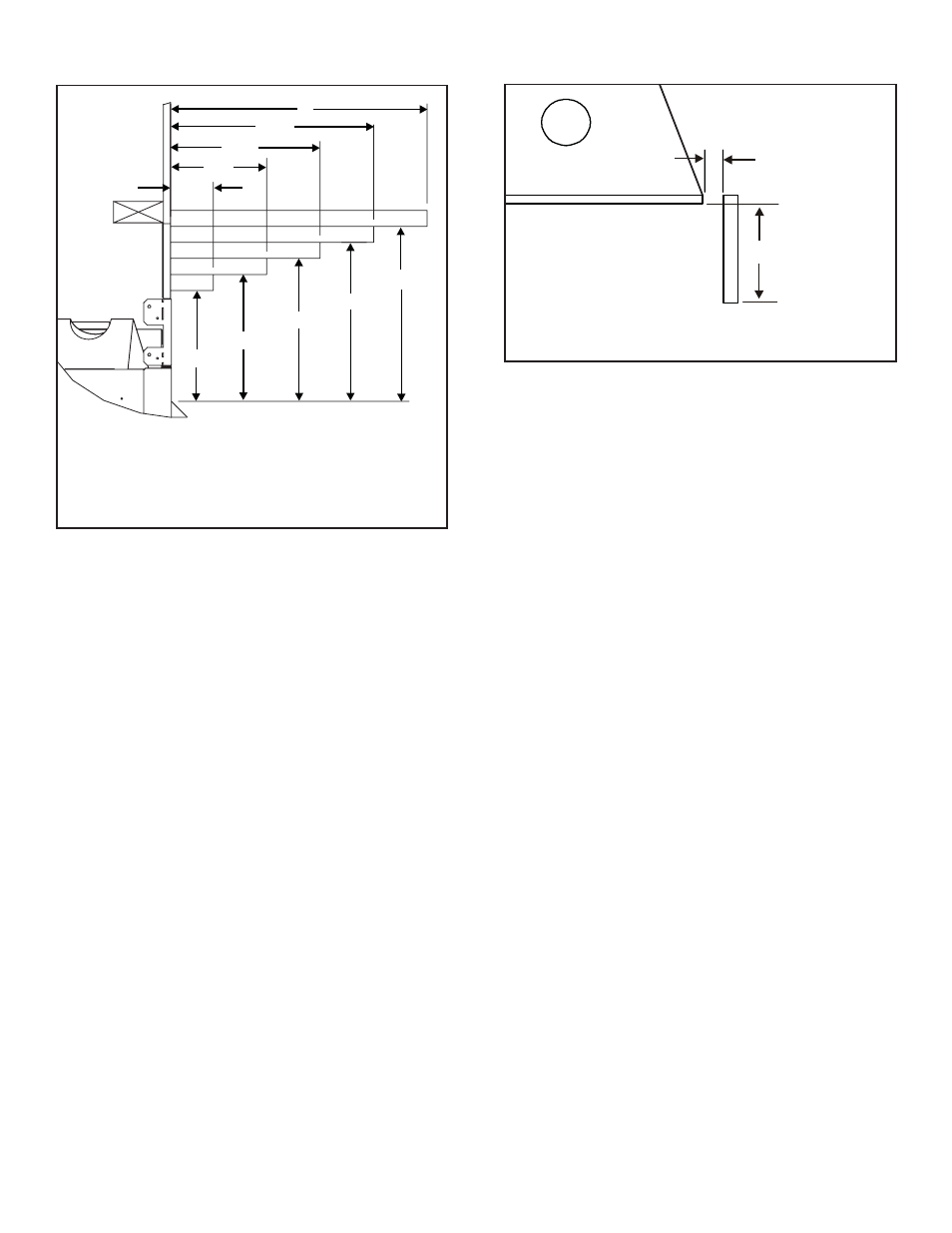

Figure 3.3 Clearances to mantels or other combustibles
above
appliance
Figure 3.4 Clearances to Mantel Legs or Wall Projections
(Acceptable on both sides of opening.)
18
14-1/4
10-1/2
6-3/4
3
7-1/4
8-3/8
9-1/2
10-1/8
11-1/4
NOTE: Measurement is taken from top of the opening,
NOT the top of the fi replace.
Note: All
measurements
in inches.
