2. Match the amount of vertical in the system with the chart
to fi nd the appropriate position to set the Flue Restrictor
(see Figure 7.7).
1 2 3 4 5
SETTING
1 2 3 4 5
Figure 7.8
3. Center the Flue Restrictor on vent and secure in place
by using two self-tapping screws (see Figure 7.8).

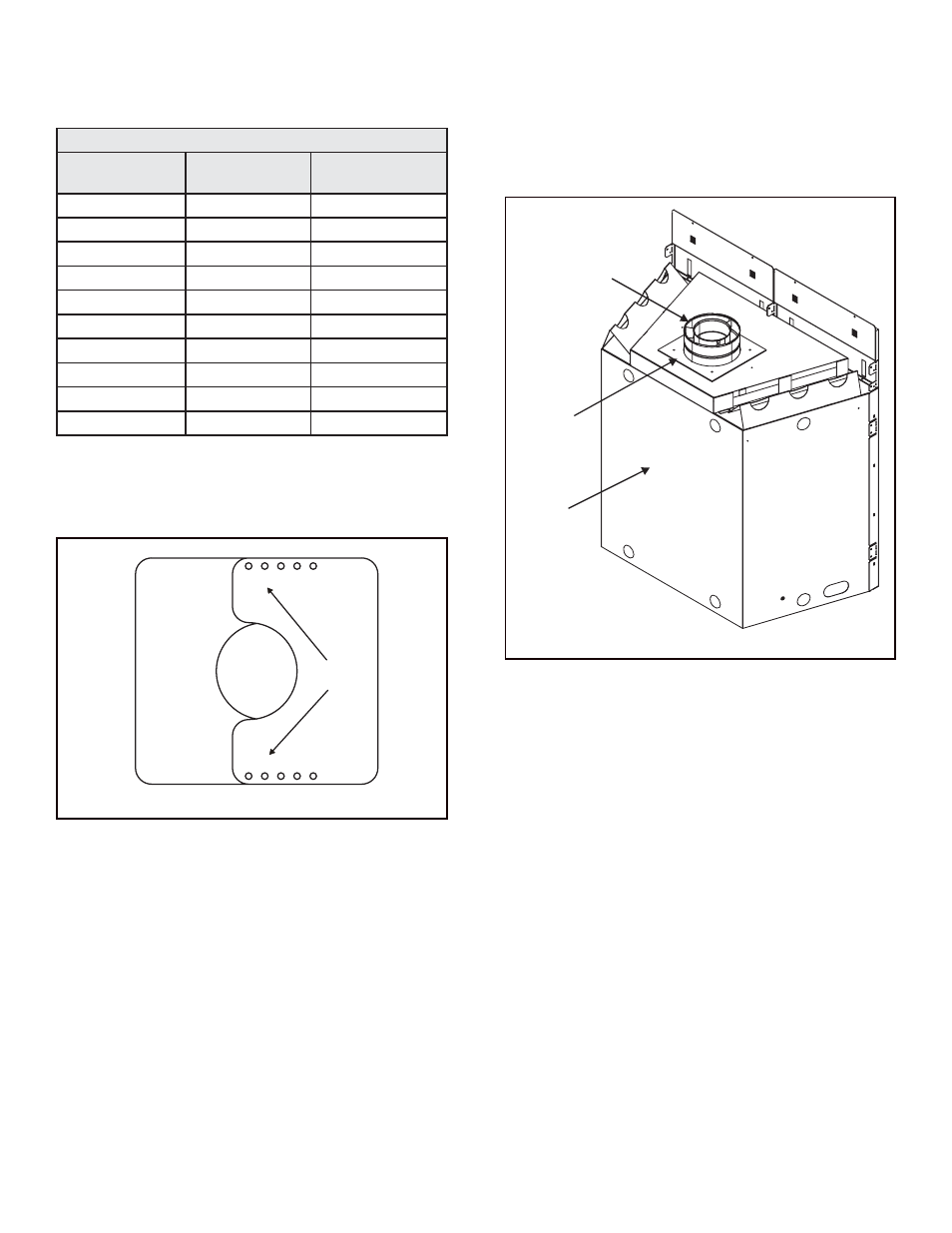

Figure 7.7
E. Installing the Fiberglass Gasket
The fi berglass gasket supplied in the manual bag seals
between the fi rst 8 inch (203 mm) vent component and
the outer fi replace wrap. Using 2 self-tapping screws from
the manual bag secure the gasket to the outer wrap (see
Figure 7.9).
Figure 7.9 Fiberglass Gasket
FIRST VENT
COMPONENT
FIBERGLASS
GASKET
OUTERWRAP
- CHART -
Vertical
Top Vent
NG
Top Vent
LP
4’
1-1
No Restrictor
8’
2-2
1-2
15’
3-3
3-2
20’
3-4
3-3
25’
3-4
3-3
30’
4-4
3-4
35’
4-4
3-4
40’
5-4
4-4
45’
5-4
4-4
50’
5-4
4-4
