C. Securing and Leveling the Appliance
The diagram shows how to properly position, level, and
secure the appliance (see Figure 7.4). Nailing tabs are pro-
vided to secure the appliance to the framing members.
• Place the appliance into position.
• Level the appliance from side to side and front to back.
• Shim the appliance, as necessary. It is acceptable to use
wood shims.
• Bend out nailing tabs on each side.
• Keep nailing tabs fl ush with the framing.
• Secure the appliance to the framing by using nails or
screws through the nailing tabs.

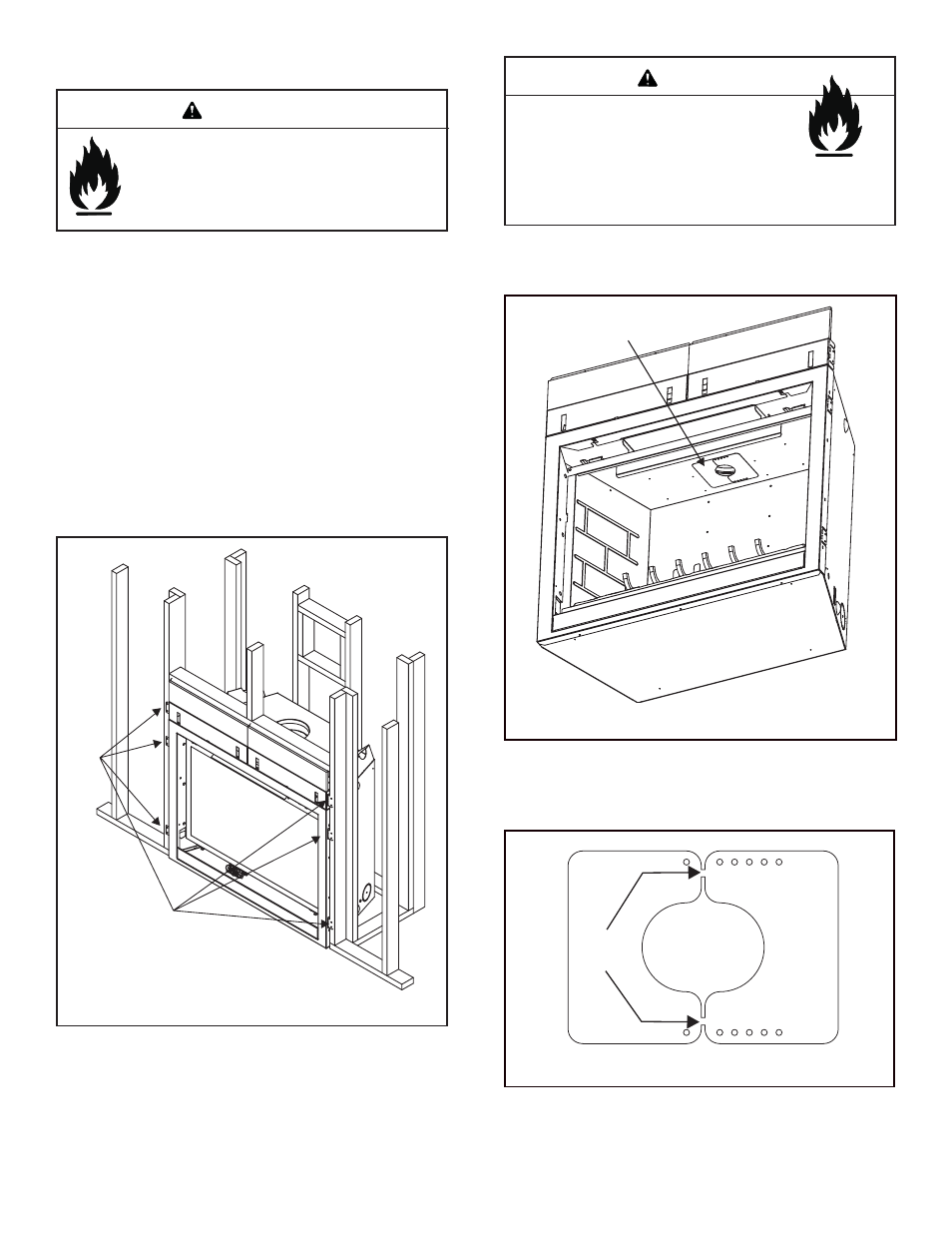

Figure 7.4 Proper Positioning, Leveling and
Securing of Appliance
NAILING TABS
(BOTH SIDES)
D. Installing the Flue Restrictor
Figure 7.5
FLUE RESTRICTOR
Figure 7.6 Flue Restrictor
BREAK
HERE
1. Break the Flue Restrictor into two pieces. Do this by
bending the part back and forth until it breaks (see
Figure 7.6).
Fire Risk.
• ALWAYS maintain specifi ed
clearances around the appliance.
• Do NOT notch into the framing around the appliance spacers.
Failure to keep insulation, framing or other material away from
the appliance may cause fi re.
Fire Risk.
• Prevent contact with sagging, loose insulation.
• Do NOT install against combustible materials
such as exposed insulation, plastic and insulation
backer.
