69-0936—1 8
T8611G CHRONOTHERM ® IV DELUXE PROGRAMMABLE HEAT PUMP THERMOSTATS
5. Press the increase ▲ key again to display the
EEPROM identification code. (Example: 314 =
EEPROM ID 314)
M4933A

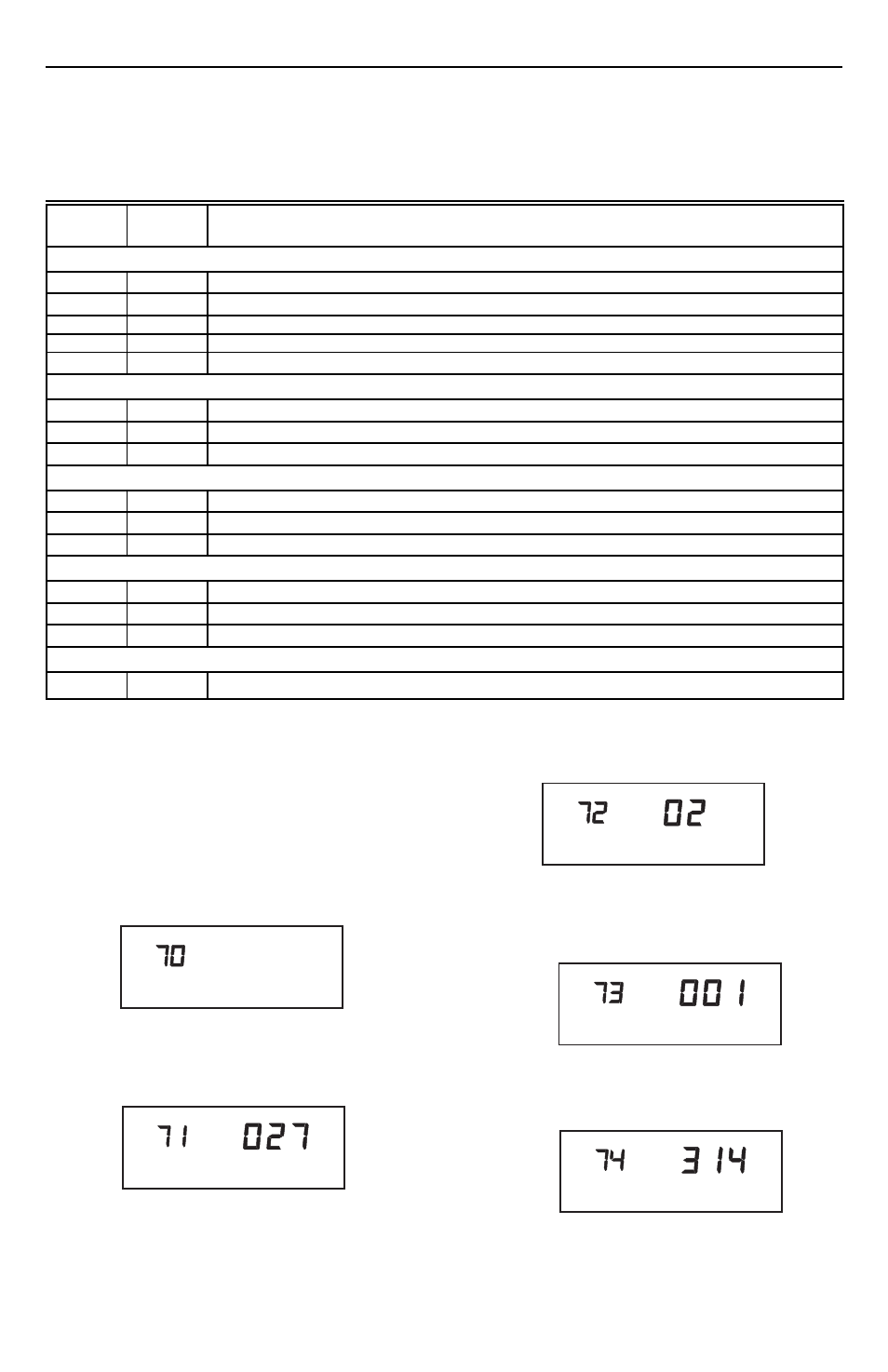

Table 5. Installer System-Test Options.
NOTE: Press any key and the displayed numbers will
change. Press Time
▼ ▼ to go to the previous test
and the Time ▲ ▲ to go to the next test. The Run
Program Key will not exit this test. To exit, press
Time
▲ ▲ or Time ▼ ▼ and then the Run Program
key.
THERMOSTAT INFORMATION
1. Press the Time ▲ ▲ key to access the thermostat
information.
4. Press the increase ▲ key again to display the
software revision number (Example: 001=Revision
number 1).
M4934
2. Press the increase ▲ key to display the production
date code. The first two large digits are the month
and the third digit is the last digit of the year
(Example: 027=February 1997).
M10351
3. Press the increase ▲ key again to display the
software identification code. (Example: 02 =
software ID code 2)
M4932A
M10229
Refer to Table 5 for the directions and results of the
specific tests. NOTE: Press Time ▲ ▲ to advance to the next test and
Time ▼ ▼ to go back to the previous test. Press
Run Program to exit the system-test.
Key to
Press
Test
Number Description
Heating Equipment System-Test
Time ▲ 10 Enter heating equipment system-test.
▲ 11 Stage-one heat comes on. The system fan is also energized.
▲ 12 Stage-two heat comes on. Stage-one heat and system fan remain on.
▼ 11 Stage-two heat turns off.
▼ 10 Stage-one heat and system fan turn off.
Emergency Heating Equipment System-Test
Time ▲ 20 Change from heating to emergency heating equipment system-test.
▲ 21 Emergency heat come on.
▼ 20 Emergency heat turn off.
Cooling Equipment System-Test
Time ▲ 30 Change from heating or emergency heating to cooling equipment system-test.
▲ 31 Cool and system fan come on.
▼ 30 Cool and system fan turn off.
Fan Equipment System-Test
Time ▲ 40 Change from cooling to fan equipment system-test.
▲ 41 Fan comes on.
▼ 40 Fan turns off.
Key Operation System-Test
Time ▲
60 2 Change from fan to key operation system-test.
