T8611G CHRONOTHERM
®
IV DELUXE PROGRAMMABLE HEAT PUMP THERMOSTATS
M10349
INSTALLER SETUP
NUMBER DISPLAY
(COLUMN 2
OF TABLE 3)
FACTORY SETTING
OR OTHER CHOICE
DISPLAY (COLUMN 3
OR 5 OF TABLE 3)
A combination of key presses are required to use the
Installer Setup feature.
—
To enter the Installer Setup, press and hold the
Information
i
key with the increase
▲
and
decrease
▼
keys until the first number is displayed.
All display segments appear for approximately three
seconds before the number is displayed.
See Fig. 9 and 10.
—
To advance to the next Installer Setup, press the
Time
▲
▲
key.
—
To change a setting, use the increase
▲
or
decrease
▼
key.
—
To scroll the Installer Setup numbers backwards,
press the Time
▼
▼
key.
—
To exit the Installer Setup, press Run Program.
Aux Ht
Heat
Auto
System
Fan
Off
Auto
Wake
Mon
Wait
In
Room
Outdoor
%Humid
Auto
Sav
AM
PM
Hold for
Cool
Repl Batt
On
Recovery
DST
Cool
TueWedThuFriSatSun
LeaveReturnSleep
M10345
Set Program
Set Day/Time
Start Time
Temporary Setting Enrg
Em Heat
Em Ht

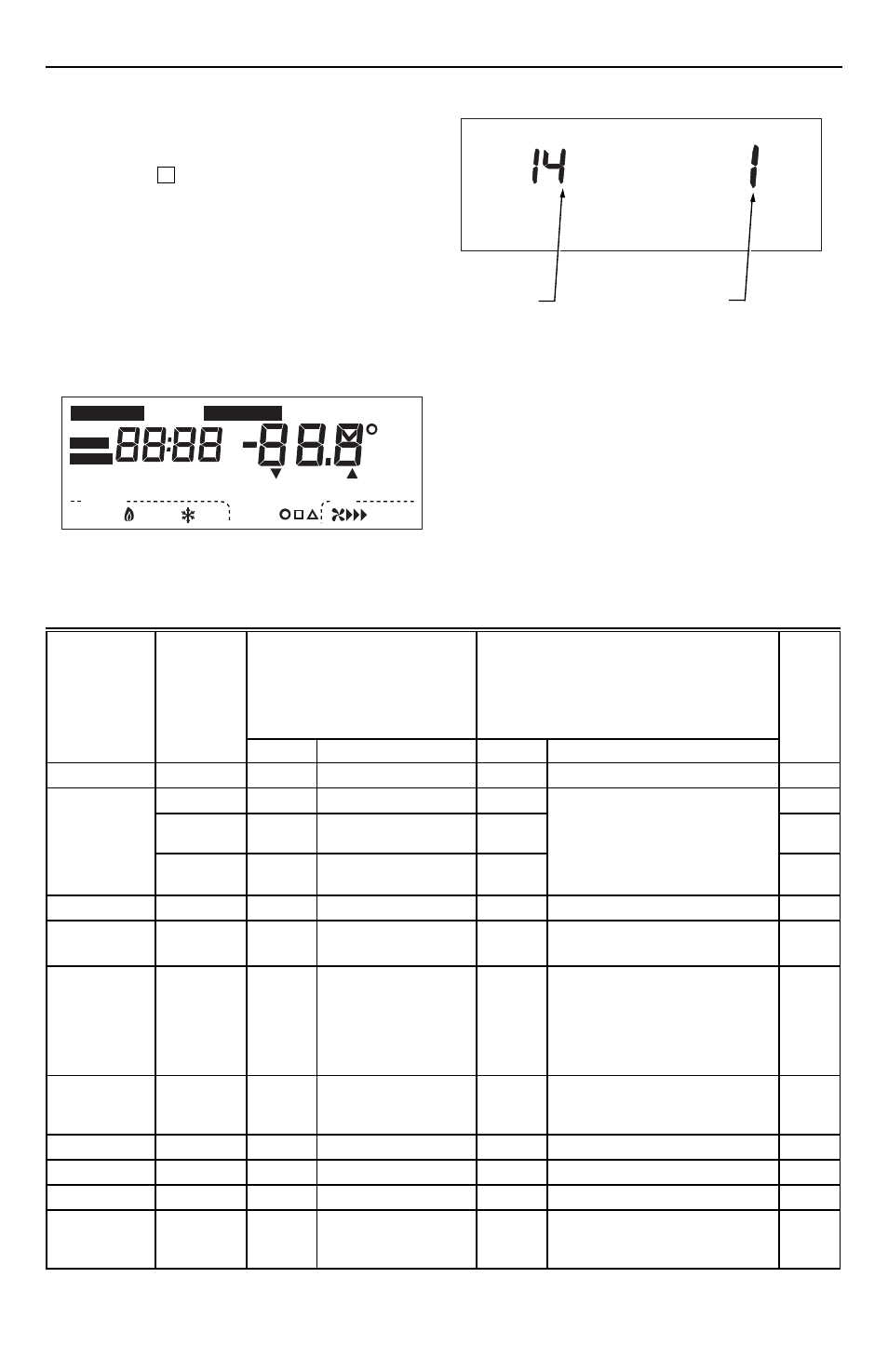

Fig. 10. Display of Installer Setup
number and setting.
IMPORTANT
Only configurable numbers are shown on the device.
Example: If thermostat does not have a system key,
Installer Setup Number 12 will not be displayed.
Review Table 3 factory-settings and mark any
desired changes in the Actual Settings column.
When Installer Setup is complete, review the
settings to confirm that they match the system.
Table 3. Thermostat Installer Setup Options.
(Continued)
Fig. 9. Display of all the segments of the LCD.
Installer
Setup
Number
(Press
Time
▲
key to
Factory-Setting
Other Choices
(Press
▲
or
▼
key to change)
Actual
Select
change)
Display
Description
Display
Description
Setting
Not used
1 thru 4
—
—
—
—
—
Heating cycle
5
6
Stage 2
3, 6 or 9 3—3 cph
6 (Not
used)
—
—
—
6—6 cph used for last stage of
heat pump systems
—
7
9
Emergency heat
3, 6
or 9
9—9 cph used for electric
heat
Not used
8 thru 11
—
—
—
—
—
System setting
adjustment
12
1
Manual changeover
0 or 2
0—Auto changeover
2—Fixed auto changeover
Adaptive
Intelligent
Recovery™
control
13
0
Adaptive Intelligent
Recovery™ control is
activated (system
starts early so setpoint
is reached by start of
program period)
1
Conventional recovery (system
starts recovery at programmed
time)
—
Degree
temperature
display
14
0
Temperature is
displayed in °F
1
Temperature is displayed in °C
Not used
15
—
—
—
—
—
Clock format
16
0
12-hour clock format
1
24-hour clock format
Not used
17 and 18
—
—
—
—
—
Extended fan
operation in
heating
19
0
No extended fan
operation after the
call for heat ends
1
Fan operation is extended
90 seconds after the call for
heat ends.
