7.9 USING THE ON-SCREEN CONTROLLER AND COMPASS, CONTINUED

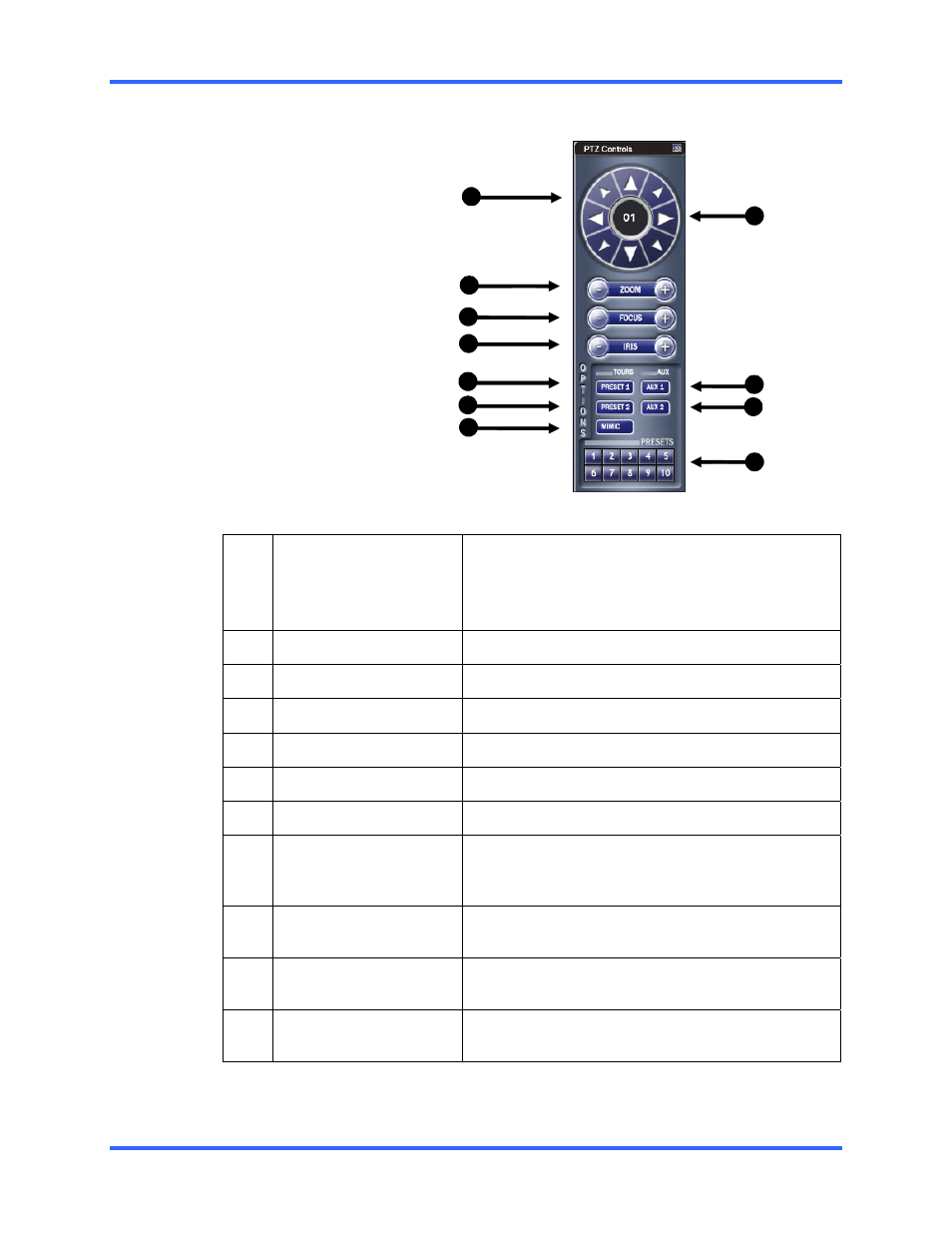

7.9.1 THE PTZ CONTROLLER
3
2
1
6
5
4
7
10
9
8
11
1 Direction Controls There are 8 directions buttons that move the PTZ.
NOTE: Only 4 of the buttons work for all protocols
(UP, DOWN, LEFT, RIGHT). 8 Directions are
available only for select protocols.
2 Zoom This option Zooms the camera in and out.
3 Focus This option Focuses the PTZ camera.
4 Iris This option adjusts the Iris on the PTZ.
5 Preset 1 Tour This option activates the Preset 1 Tour.
6 Preset 2 Tour This option activates the Preset 2 Tour.
7 Mimic Tour This option activates the Mimic Tour.
8 Camera Number This displays the camera number you are currently
controlling. To change the camera, simply click on
the video of the camera you wish to control.
9 Aux 1 This option activates a different option for each
protocol.
10 Aux 2 This option activates a different option for each
protocol.
11 Preset Controls These buttons activate the corresponding PTZ
Preset.
