Slanted layout: This layout presents the two 455 kHz side sonar beams and the 200 kHz
down-looking sonar beam as three panels of historical data. This layout is presented as three
slanted panels. New information appears on the right, and scrolls to the left.
In all of these layouts, the sonar information from the side-looking beams reveals bottom
contour, structure and fish similar to the down-looking beam, but the area covered is to the
left and right of the area shown in the down-looking portion, so you actually see more of the
bottom. The distance covered by the right and left beams is based on the depth setting for the
down-looking beam, up to a maximum of 160 feet.

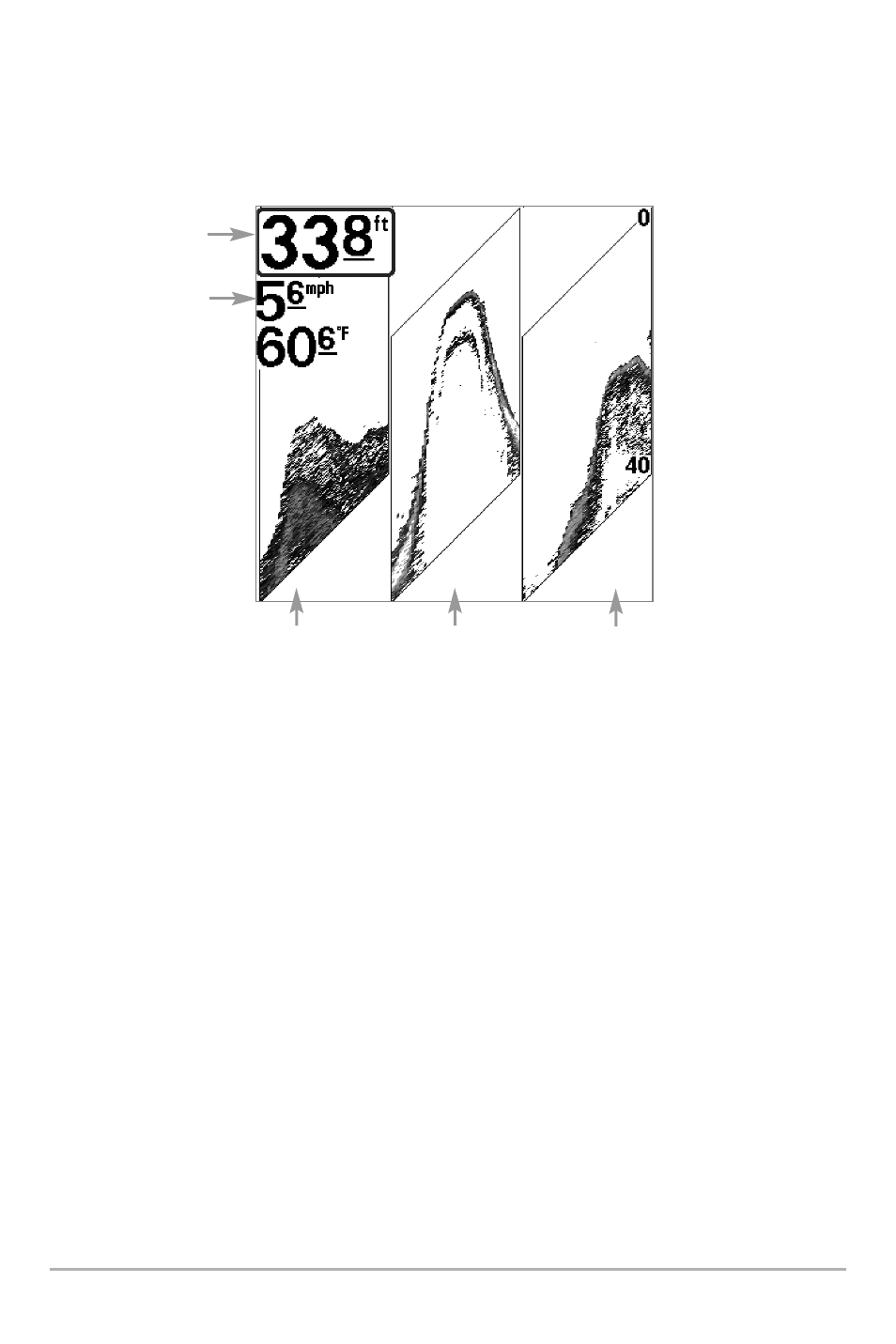

Side Beam View, Slanted Layout
Depth
Speed
Left Side 455 kHz
Sonar History
Window
200 kHz Sonar
History Window
Right Side
455 kHz Sonar
History Window
