Text mode
Original mode

Classic layout: The top portion of the display presents a historical log of sonar returns from the
200 kHz down-looking sonar beam. New information in the down beam panel scrolls from right
to left. The bottom portion of the display presents a historical log of sonar returns from the 455
kHz right- and left-looking sonar beams. New information appears at the top, and scrolls down
the display.

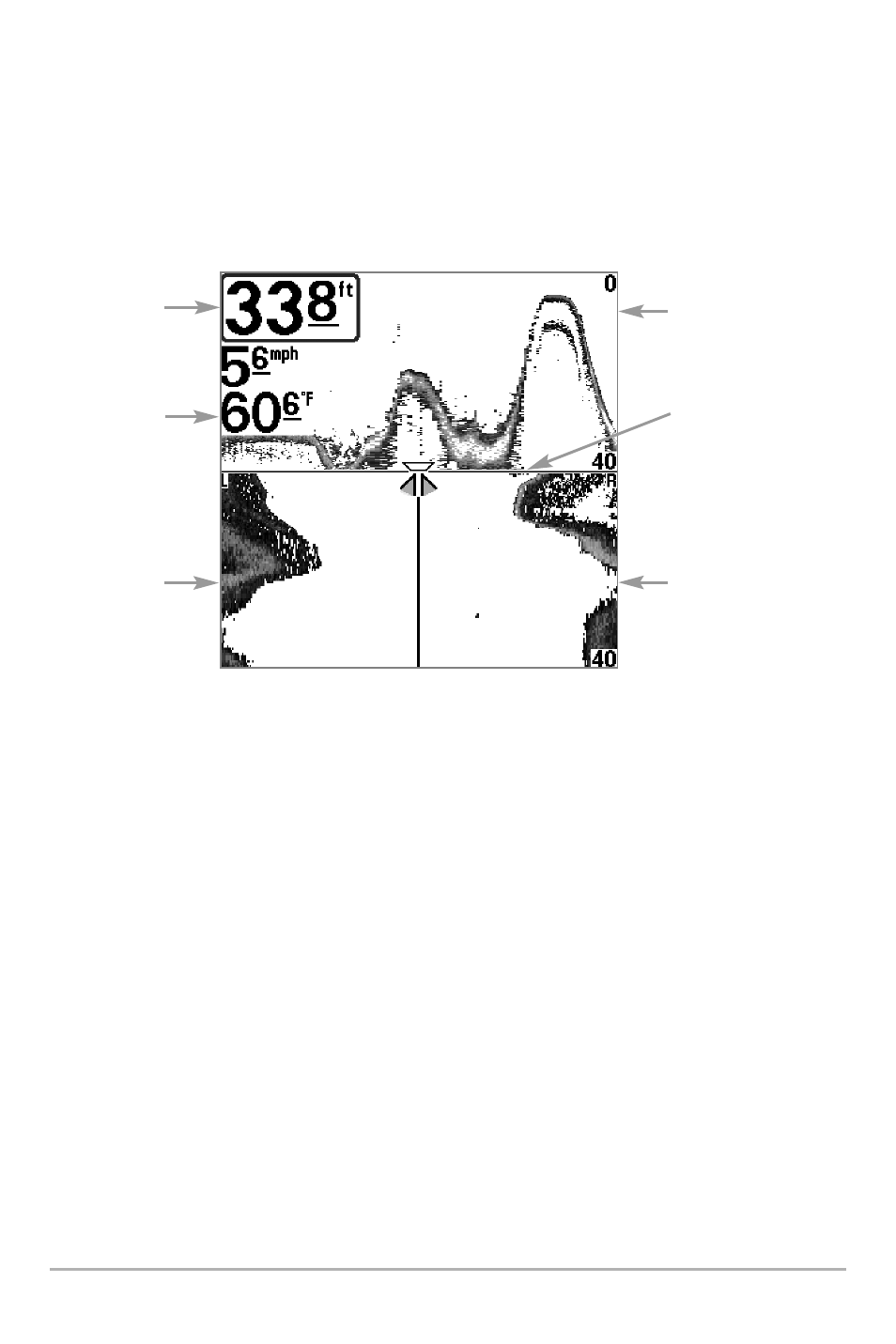

Side Beam View, Classic Layout

Depth

Temperature

Left Side

455 kHz Sonar

History

Window

200 kHz Sonar
History Window

Water Surface Line
for 455 kHz Sonar
History Windows

Right Side 455 kHz
Sonar History Window
