15
200/83 kHz Split Sonar View
Split Sonar View displays sonar returns from the 83 kHz wide beam on the left side of the screen
and displays sonar returns from the 200 kHz narrow beam on the right side of the screen. Depth
is always displayed in the upper left hand corner. You can use the Split Sonar View to make side
by side comparisons between the sonar returns from the 83 kHz wide beam and the 200 kHz
narrow beam.
The digital readouts in the Split Sonar View cannot be customized; therefore, information such as
water temperature and voltage are unavailable in the Split Sonar View.

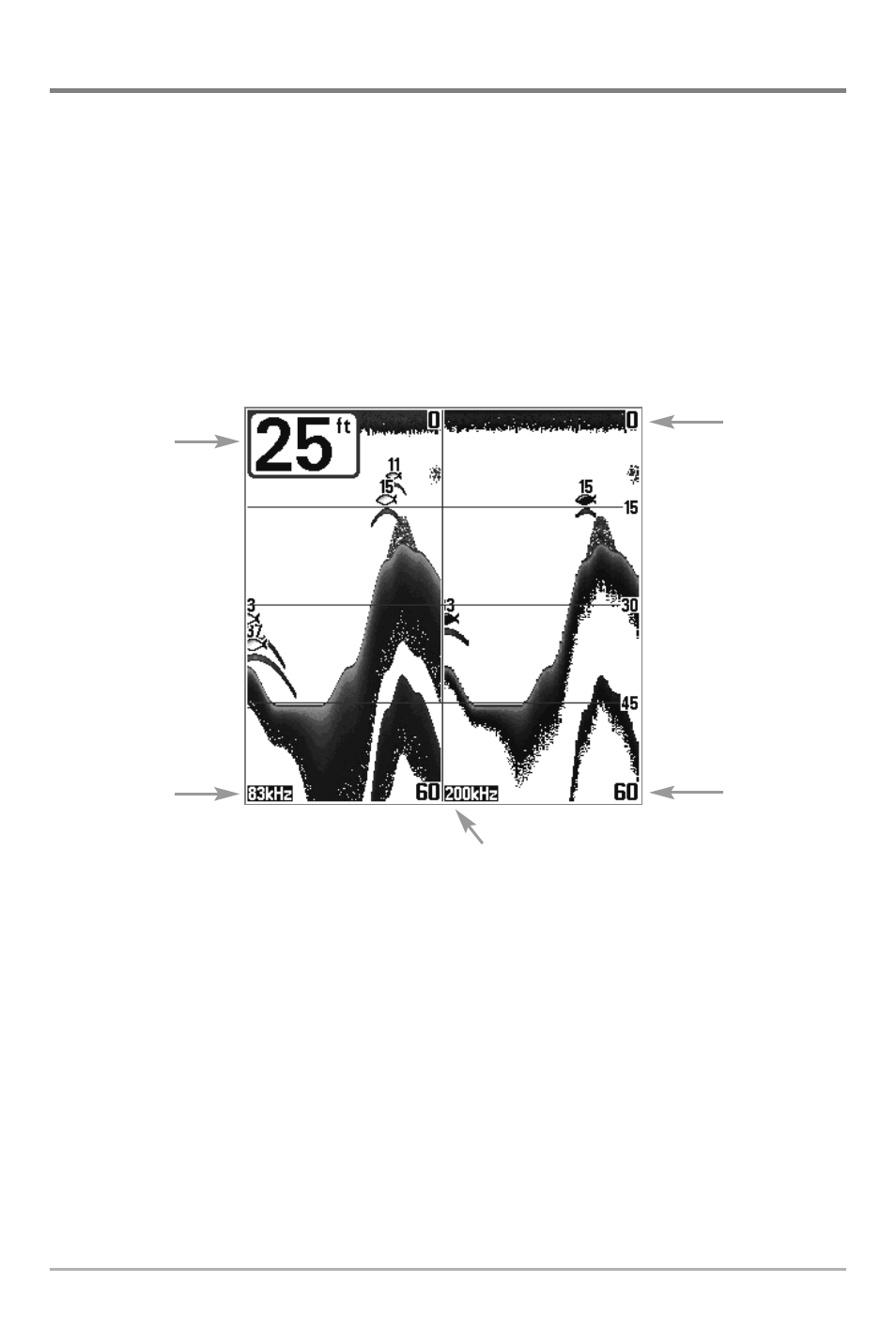

200/83 kHz Split Sonar View
Depth
83 kHz
Sonar History
Window
200 kHz
Sonar History Window
Upper
Depth Range
Lower
Depth Range
