Honeywell CT1801 User Manual
Page 6

6
69-0395—2
8

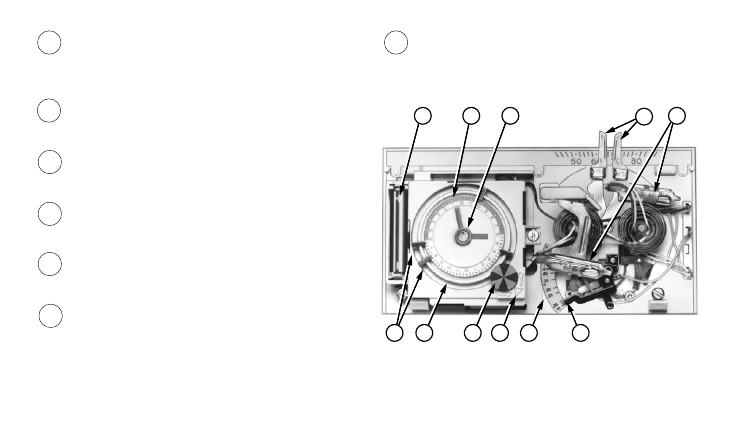

TEMPERATURE SETTING LEVERS.
Left (blue mark) controls the low tempera-
ture; right (red mark) controls the high
temperature.
9
PROGRAM PINS. Must be inserted into
24-hour clock dial slots to control program
index wheel.
10 PIN SLOTS. Located on 24-hour dial at
ten-minute intervals for program pin
insertion.
11 HEAT ANTICIPATOR SCALEPLATE.
Calibrated to match the heating system
current draw in amperes.
12 ANTICIPATOR SETTING LEVER. Must
be adjusted to match the heating system
primary control current.
13 BULB AND BIMETAL ELEMENT
(2). Provide automatic temperature
control by switching on and off the
heating or cooling system.
14
4
5
8
13
12
11
6
7
10
9
M9654
14 AAA ALKALINE BATTERIES (2).
Included to provide power to the clock.
