Features of your thermostat – Honeywell CT1801 User Manual
Page 5

5
69-0395—2

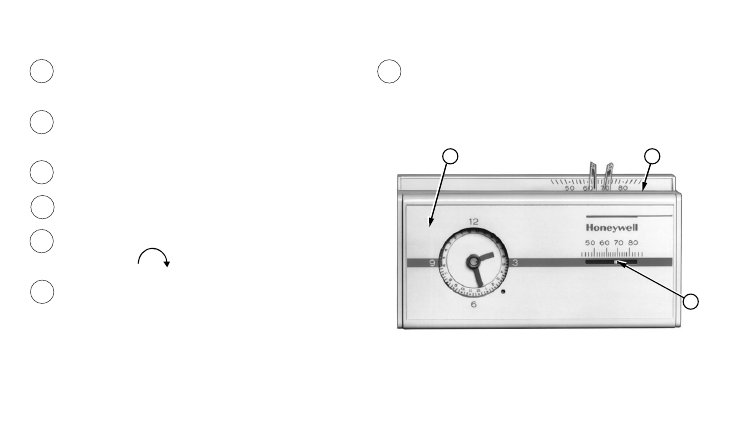

Features Of Your Thermostat
1
FLIP-UP COVER. Lift it up to set clock for
energy savings and normal temperature
periods.
2
THERMOSTAT COVER. Lift up and
remove to adjust heat anticipator or install
batteries.
3
THERMOMETER. Provides accurate
room temperature reading.
4
CLOCK. This clock provides a 24-hour
slotted dial to hold the programming pins.
5
CLOCK HANDS. Turn minute hand
clockwise to match the correct AM
or PM time to the time indicator
6
TIME INDICATOR. Arrowhead indicates
time for 24-hour dial.
7
PROGRAM INDEX WHEEL. Controls
high and low temperature at specific time
of day as set by program pins. Can be
moved to temporarily override a schedule.
1
2
3
M9653
