21 in.
(533 mm)
Inside
Diameter
11 in.
(279 mm)
Outside
Diameter
13 in.
(330 mm)
SL1130 Offset/Return
A
B
17 in. (432 mm)
2 in.
(51 mm)
13 in.
(330 mm)
JB577 Chimney Joint Band
13 in.
(330 mm)
CB576 Chimney Joint Band
Catalog #
A
B
FS538
0-deg.
17 in.
432 mm
FS540
30-deg.
26 in.
660 mm

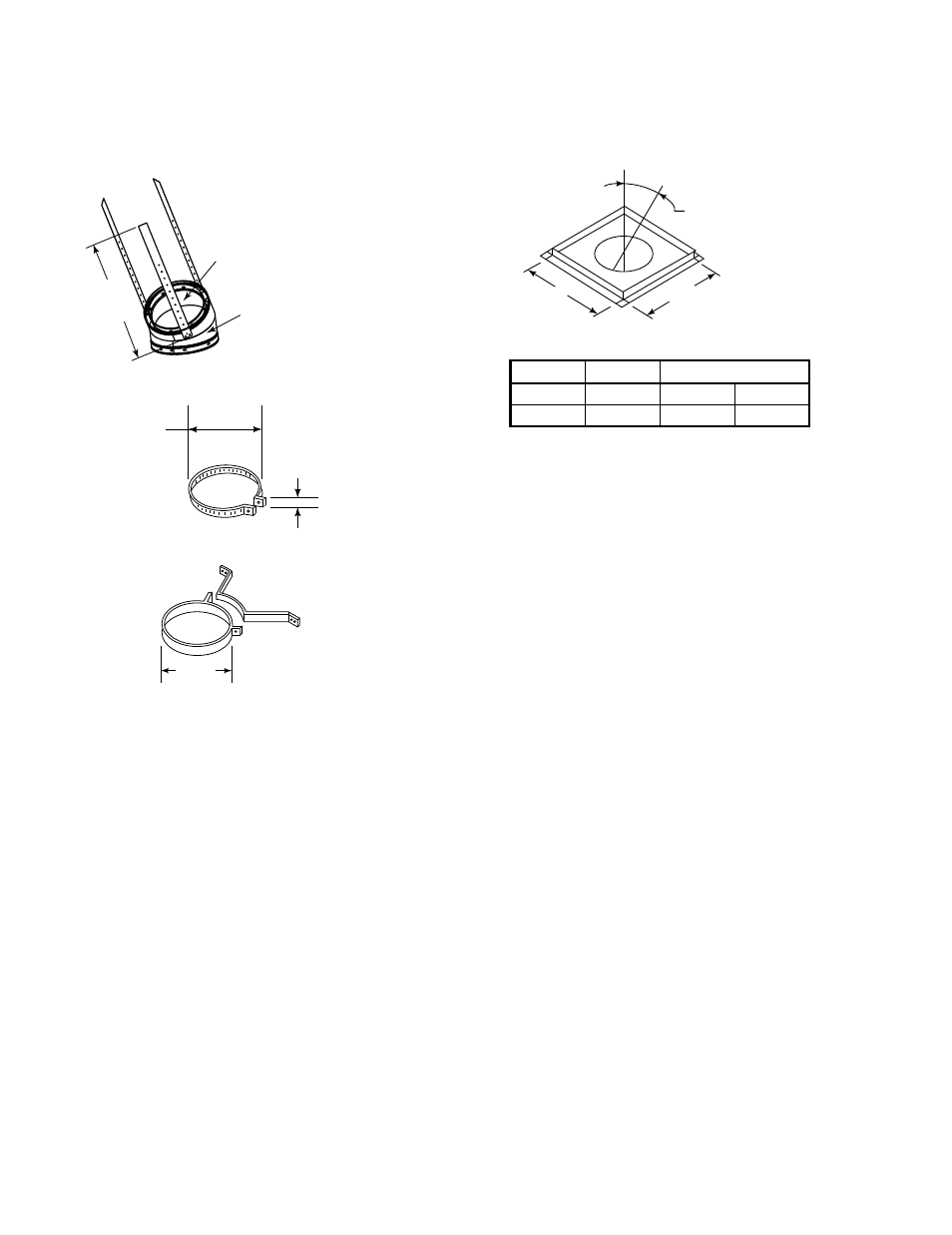

C. Chimney Components Continued
The following pictures show only those chimney components which may be safely used with this fireplace.
