Outdoor Lifestyles by Hearth & Home Technologies Inc. • 4070-300 Rev D • 11/11 11
E. Chimney Requirements
When planning your fireplace location, the chimney construc-
tion and necessary clearances must be considered. The fire-
place system and chimney components have been tested to
provide flexibility in construction. The following figures are
the minimum distances from the base of the fireplace.
• Minimum overall straight height is 10 ft If the fireplace is
freestanding and a minimum of 10 ft from a combustible
structure. See Figure 3.2.
• Chimney must extend 2 ft (.6 m) above any portion of
the roof within 10 ft (3048 mm) of the chimney. Refer to
Figure 6.2.
ft m
•
Minimum height with offset/return 16 4.88
• Maximum height 90 27.43
• Maximum chimney length between an offset
and return
20 6.1
• Maximum distance between chimney
stabilizers
35 10.67
• Double offset/return minimum height 24 7.32
• Maximum unsupported chimney length
between the offset and return
6 1.83
• Maximum unsupported chimney height above
the fireplace
35 10.67
• Minimum overall straight height if fireplace is
freestanding
10 3.048
* Transition section standard with unit and 1 foot section
required in addtion as minimum or SLA10 (for Canada)

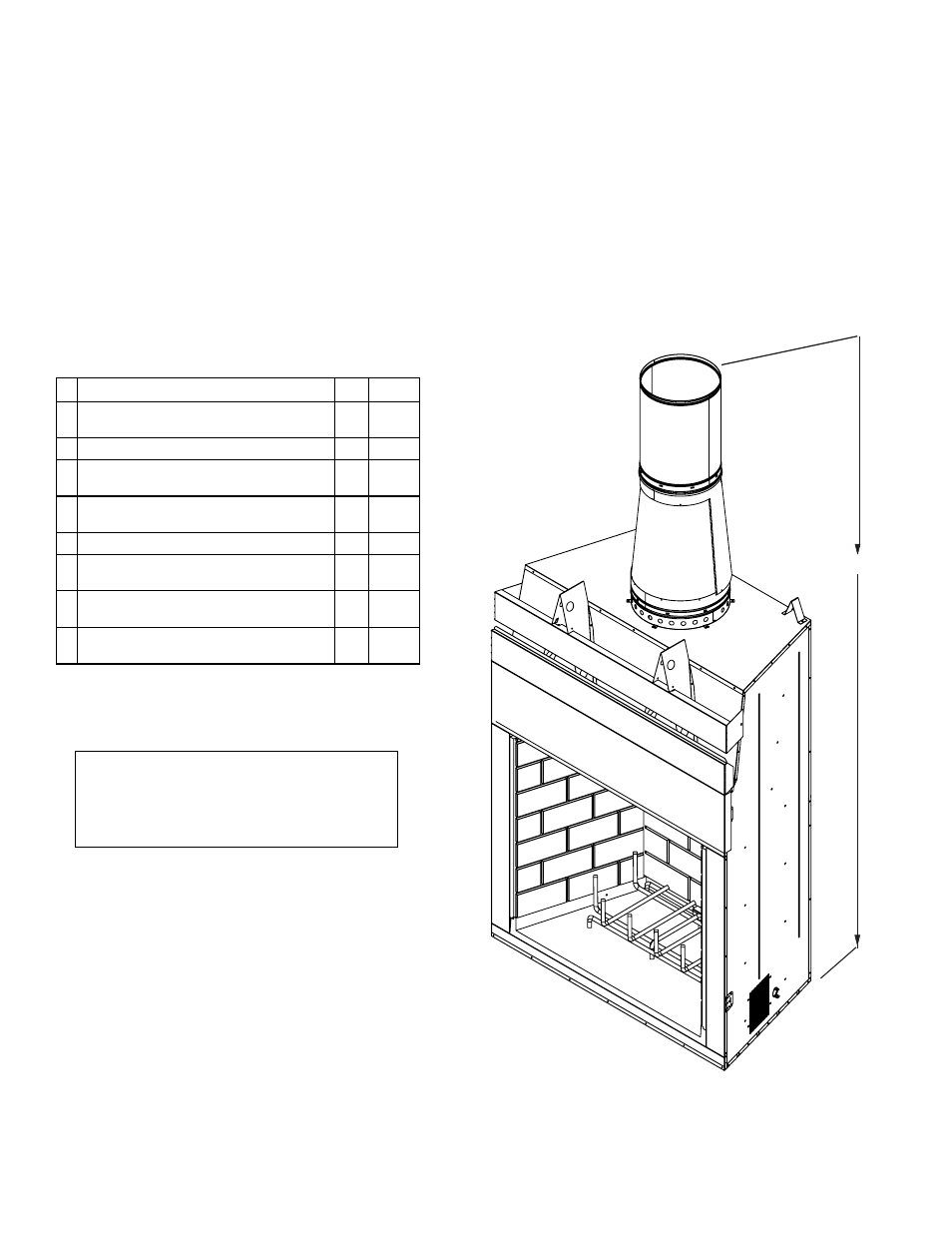

Figure 3.5 Framing the Fireplace
CAK8A required for Canada installation
91/2 ft
