E. Installation of Second Unit
1) See "II.D. Setup" for the lower unit installation.
2) Remove the top panel and the top insulation of the lower unit. The top panel and the
top insulation of the lower unit are not required when installing the second icemaker.
3) Unpack the second icemaker (upper unit), and remove the shipping carton, tape, and
packing material.
4) Remove the panels of the second icemaker.
5) Stack the upper unit on top of the lower unit.
6) Secure the upper unit to the lower unit using the 2 mounting brackets and the bolts
provided.
Mounting
Brackets
Bolts
Bin
Icemaker
(Upper
Unit)
Icemaker
(Lower
Unit)

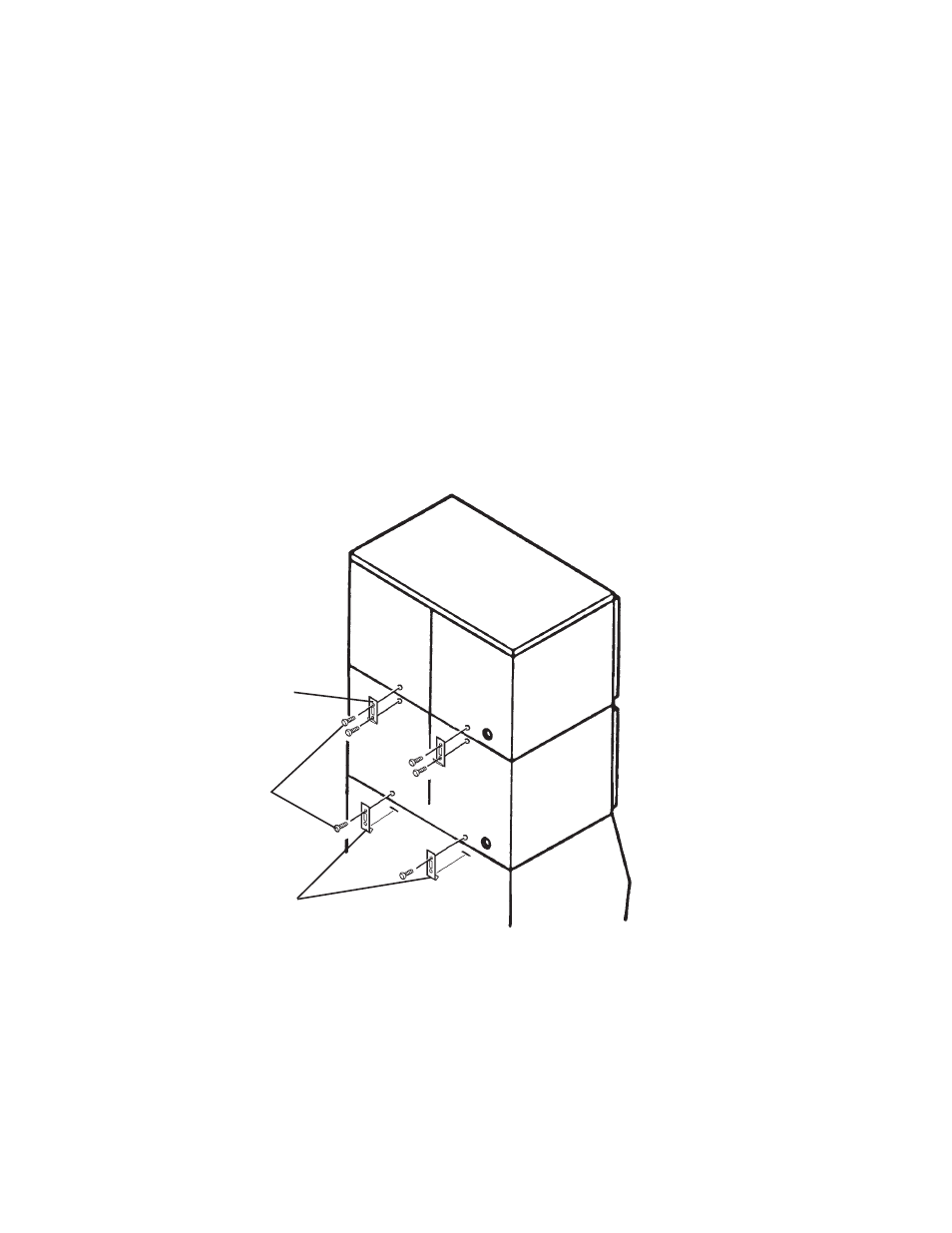

Fig. 5
Mounting
Brackets
