10
BEFORE STARTING ENGINE
ADD OIL
Your lawnmower is shipped without oil in
the engine. For type and grade of oil to
use, see “EN GINE” in the Maintenance
section of this manual.
CAUTION: DO NOT overfi ll engine with
oil, or it will smoke heavily from the muffl er
on startup.
1. Be sure lawnmower is level.
2. Remove oil dipstick from oil fi ll spout.
3. You receive a container of oil with the
unit. Slowly pour the entire container
down the oil fi ll spout into the engine.
NOTE: Initial oil fi ll requires only 18 oz.
due to residual oil in engine from the
manufacturers 100% quality testing. When
changing oil you may need 20 oz.
4. Insert and tighten dipstick.
IMPORTANT:
• Check oil level before each use. Add oil
if needed. Fill to full line on dipstick.
• Change the oil after every 25 hours of
operation or each season. You may
need to change the oil more often
under dusty, dirty conditions. See “TO
CHANGE ENGINE OIL” in the Mainte-
nance section of this manual.
ATTACH FUEL CAP CARTRIDGE
Your mower is equipped with a special
FRESH START TM fuel cap and continuous
fuel preserver cartridge. See the infor-
mation and instructions packed with the
FRESH START TM cartridge.
1. Snap cartridge into bottom of fuel cap.
NOTE: Do not remove the silver foil seal
on the side of cartridge that snaps into fuel
cap.
2. Grasp the white peel tab and pull to
remove the entire seal.
3. Screw fuel cap onto fuel tank after fi ll-
ing tank with gasoline.
Replace cartridge when empty (about
once a season). Check preserver level
visually.
DANGER: Cartridge fl uid is HARMFUL
OR FATAL IF SWALLOWED. Avoid con-
tact to eyes, skin, or clothing. Do not take
internally. Do not inhale fl uid vapor. Keep
out of reach of children. If swallowed, call
a physician immediately.
ADD GASOLINE
• Fill fuel tank to bottom of tank fi ller neck.
Do not overfi ll. Use fresh, clean, regular
unleaded gasoline with a minimum of 87
octane. Do not mix oil with gasoline. Pur-
chase fuel in quan ti ties that can be used
within 30 days to assure fuel freshness.
CAUTION: Wipe off any spilled oil or
fuel. Do not store, spill or use gasoline
near an open fl ame.
CAUTION: Alcohol blended fuels
(called gasohol or using ethanol or metha-
nol) can attract moisture which leads to
separation and for ma tion of acids during
storage. Acidic gas can damage the fuel
system of an engine while in storage. To
avoid engine problems, the fuel system
should be emptied before stor age of 30
days or longer. Empty the gas tank, start
the engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel
next season. See Storage In struc tions for
additional information. Never use engine
or carburetor cleaner products in the fuel
tank or permanent damage may occur.

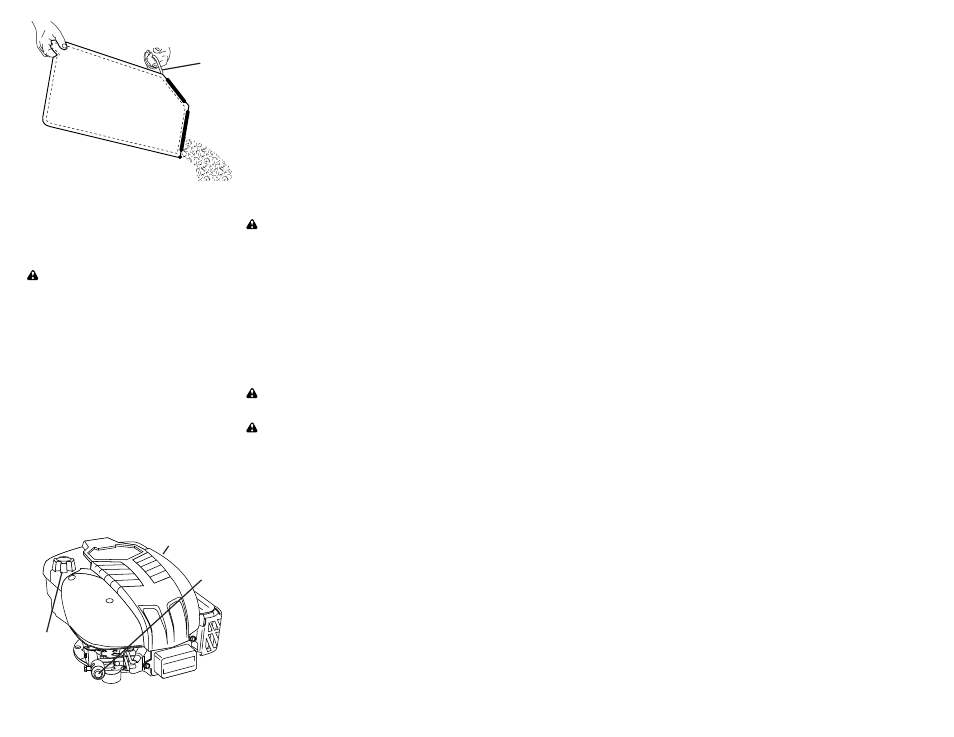

Grass
catcher
frame
handle
Engine oil cap
Gasoline
fi ller cap
Primer
39
HUSQV
ARNA
ROT
AR
Y
LA
WN MOWER - - MODEL
NUMBER
917.374456
KEY
P
ART
NO. NO.
DESCRIPTION
KEY
P
ART
NO. NO.
DESCRIPTION
1
199982
Upper Handle
Assembly (Includes Foam Grip)
2
193664X498
Handle, Lower
3
405416
Spring, Rear Door
, RH
4
194788
Rope Guide
5
132004
Nut, Hex, with Lockwasher Insert 1/4-20
6
66426
W
ire, Tie
7
191574
Bolt, Handle 5/16-18 x 2-5/8
8
185588
Knob, Handle
9
194580X422
Control Bar
10
188821
Pin, Handle
Adjustment
1
1
751
153
Nut, Hex
12
51793
Cotter
, Hairpin
13
405415
Spring, Rear Door
, LH
14
750634
Screw
15
850733X004
Bracket, Upstop
16
401815X428
Rear Door
Assembly
17
184193
Bolt, Rear Door
18
198170
Plug, Mulcher
19
410453
Kit, Housing
20
193917X422
Handle Bracket
Asembly
, LH
21
193916X422
Handle Bracket
Assembly
, RH
22
150078
Screw
, Hex W
asher Head
23
163183
Bolt, Hex Head 5/16-18 x 5/8
24
73800500
Nut, Hex, with Lockwasher Insert 5/16-18
25
161333
Baffl
e,
Side
26
163409
Screw
, Hi-Lo Thread #12 x 5/8
27
408442
Skirt, Rear
28
88652
Screw
, Hinge 1/4-20 x 1.25
29
191221
Cable, Operator Presence
30
189179
Blade
Adapter / Pulley
31
406712
Blade, 21"
32
851074
W
a
sher
33
850263
W
a
sher
, Lock
34
851084
Bolt, Hex Head
35
405843
Debris Shield
36
192325
Bolt
37
150406
Bolt, Engine
38
- - -
Engine, Briggs & Stratton, Model Number 128602-1
102-E1 (See Breakdown)
39
409726
Grassbag
40
41
1951
Frame, Grassbag
41
404763
Danger Decal
42
54583
Screw
45
183058X418
Mulcher Door
Assembly
46
169699X418
Discharge Guard
47
88349
Nut, Hex
48
188839X004
Mounting Bracket, Debris Shield
58
182003
Clip, Packaging
59
182748
Grip, Foam
96
197991
Clip, Cable
- -
404764
W
a
rning Decal (not shown)
- -
419903
Owner’s Manual, English / Spanish
A
v
ailable accessories not included with lawn mower:
- -
71
33623
Gas Can (2.5 Gallon Container)
- -
71
33500
Fuel Stabilizer
- -
71
33000
SAE 30W Oil (20 Ounce Bottle)
NOTE:
All component dimensions given in U.S. inches. 1 inch = 25.4 mm.
IMPORT
ANT
: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mo
wer and void your warranty
.
