46
13 13
Reference Materials

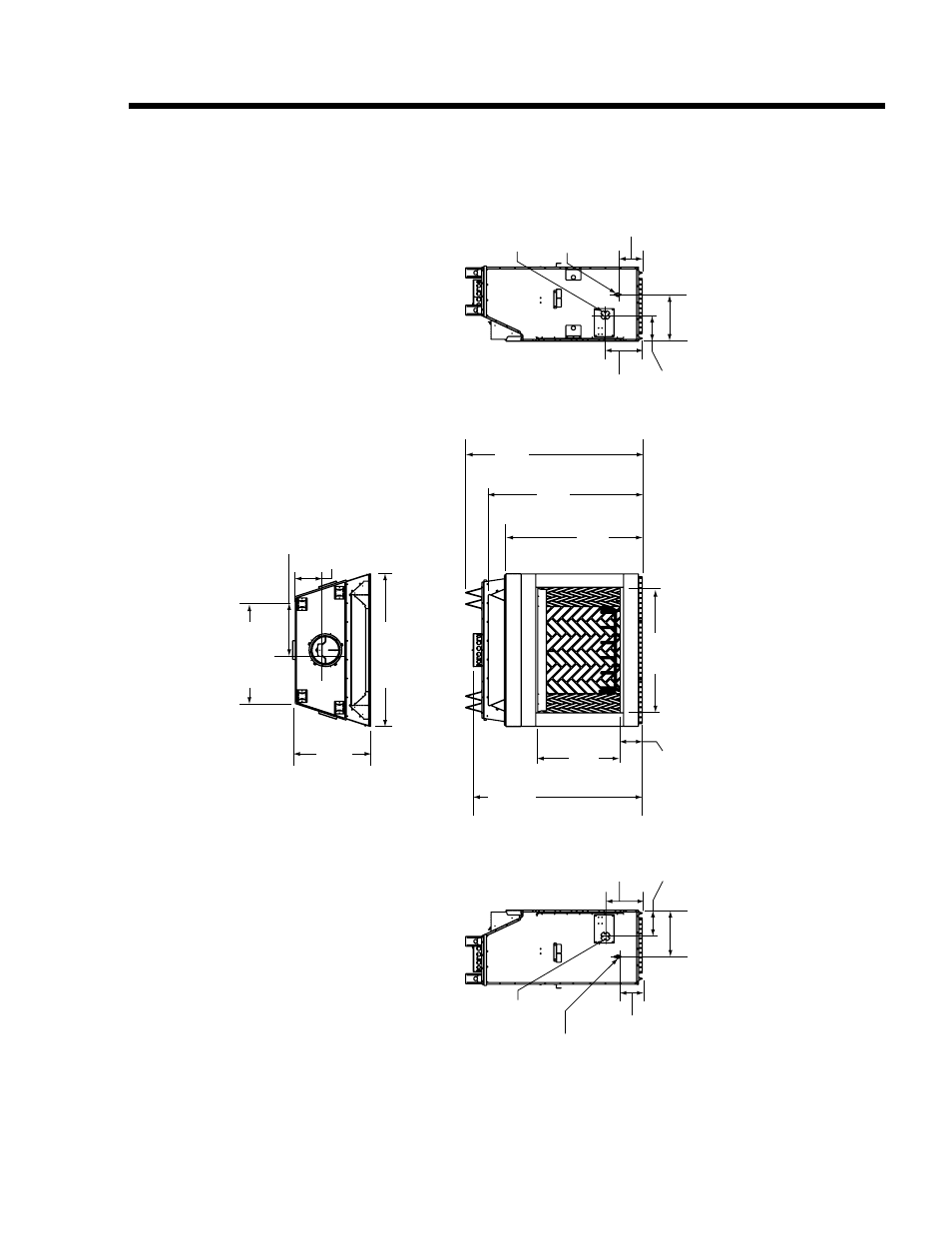

A. Fireplace Dimensions
60 5/8 in.
(1540 mm)
20 3/4 in. (527 mm)
11
5/8 in.
(295 mm)
29 1/2 in. (749 mm)
14 3/4 in. [375 mm]
Gas Knockout
9 7/8 in. [251 mm]
19 in.
[483 mm]
10 1/2 in. [267 mm]
Outside Air
14 3/4 in. [375 mm]
Gas Knockout
9 7/8 in. [251 mm]
19 in.
[483 mm]
10 1/2 in.
[267mm]
Outside Air
50 in.
[1270 mm]
33 in.
[838 mm]
68 1/8 in. [1730 mm]
(ef
fective height)
8 3/4 in. [222 mm]
70 1/2 in. [1791 mm]
60 1/4 in. [1530 mm]
54 3/8 in. [1381 mm]
41 5/8 in.
(1057 mm)
Heat & Glo • EXCLAIM-50 • 4013-041 • Rev U • 11/08
