36 Heat & Glo • EXCLAIM-50 • 4013-041 • Rev U • 11/08
Storm
Collar
Chimney
Pipe
Chase Top
Termination
Cap
Chase
14 1/2 in. (368 mm)
Maximum
Collar
2 in. (51 mm)
Minimum Height
Caulk gaps between
storm collar & pipe,
and storm collar
& chase top.
Do NOT
block air
holes
3 clip brackets.
Slip over chase collar
and attach with screws
provided.
Termination cap pipe and chimney section must overlap 1-1/2 in. (38 mm)
Assemble
storm collar
around extended
termination cap
pipe
once cap is
installed.
Chimney
Pipe
Chase Top
Termination Cap
Chase
4 3/4 in. (121 mm)
Maximum
top of chase to
top of
chimney section
Collar
2 in. (51 mm)
Minimum Height
Place waterproof
caulk or sealer under
each flange of the
termination cap and
on top of each screw
to help prevent leaks.
Flange
Termination cap pipe and chimney section must overlap 1-1/2 in. (38 mm)
• ST1175 Square Termination Cap
• TR11T Round Telescoping Termination Cap

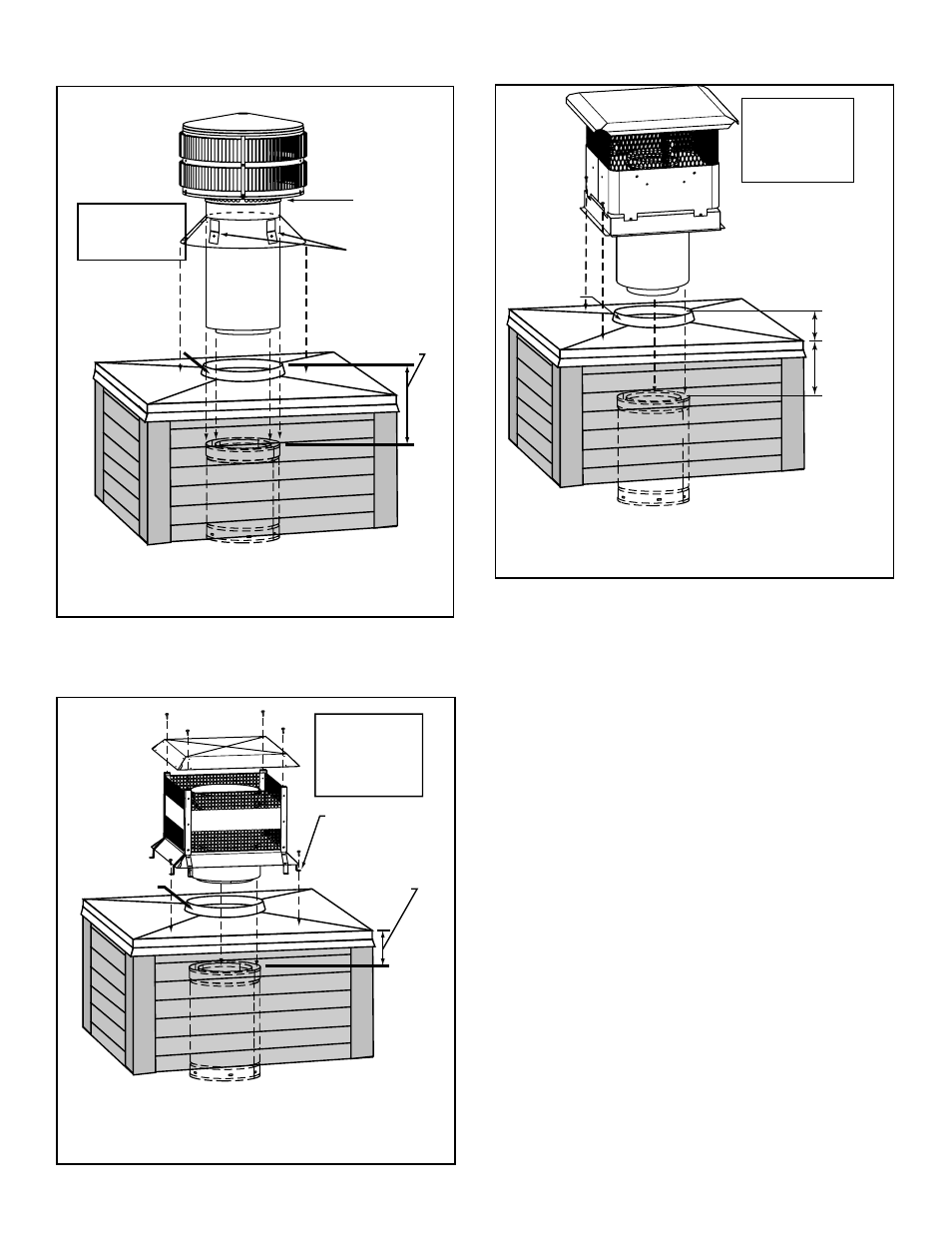

Figure 9.5 Installing a TR11T Round Telescoping Termination
Cap
Figure 9.6 Installing an ST1175 Square Termination Cap
• TCT1175 Terra Cotta Cap
Chimney
Pipe
Chase Top
Termination Cap
Chase
Collar
2 in. (51 mm)
Minimum Height
Termination cap pipe and chimney section must overlap 1-1/2 in. (38 mm)
Place waterproof
sealer under each
flange of the termina-
tion cap and on top of
each screw to help
prevent leaks.
The last section of pipe
must stop between 2 in.
(51 mm) above top of
chase and 7 in. (178
mm) below top of chase
2 in. (51 mm)
7 in. (178 mm)
Figure 9.7 Installing a TCT1175 Terra Cotta Cap
