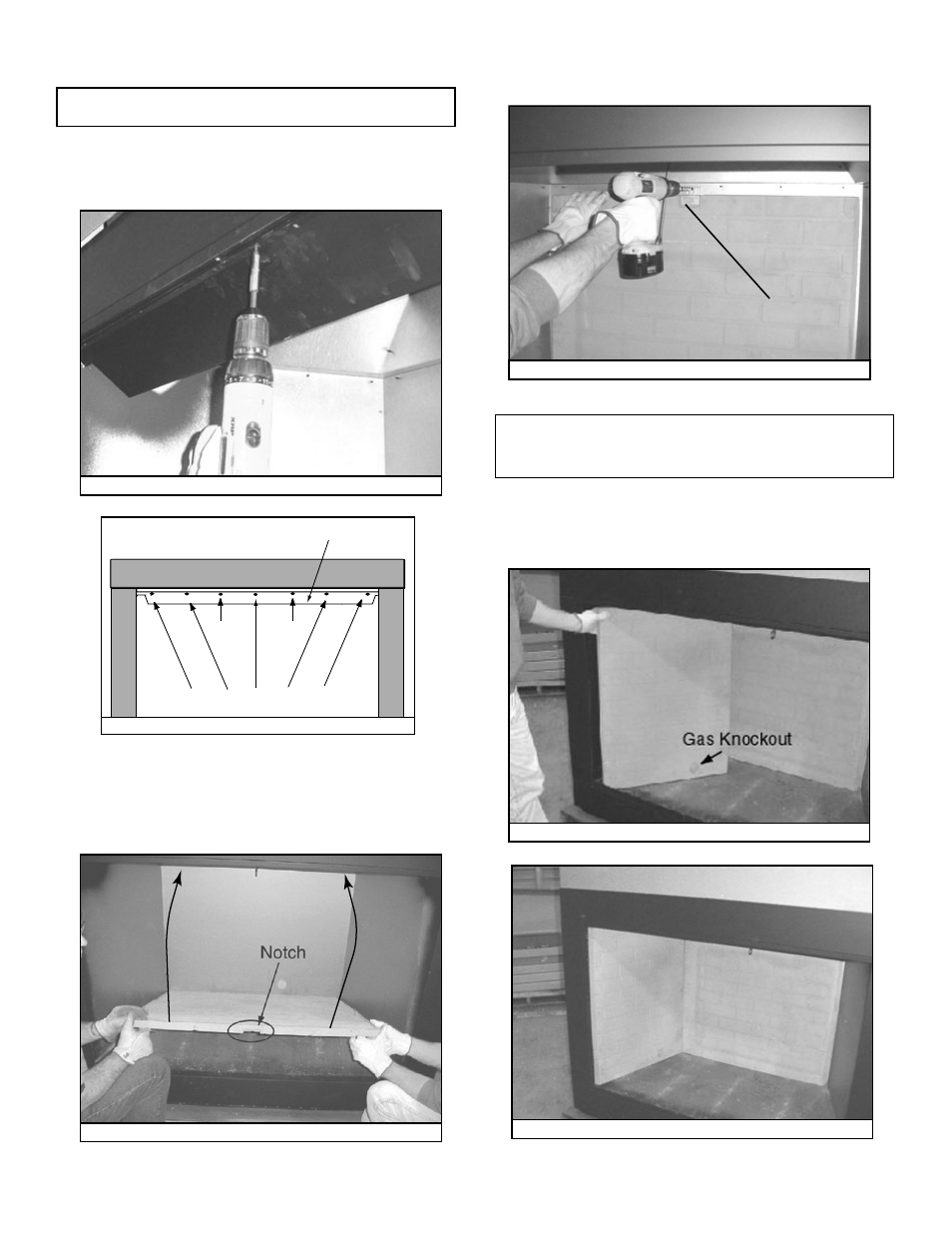

• Position the bottom of the back refractory to the back
of the fireplace and center from side to side. See
Figure 7.11. Be sure to position it so the retainer notch
is at the top.
REFRACTORY
RETAINER
Figure 7.12 Attach Back Refractory
Figure 7.11 Install Back Refractory
Note: To ensure proper installation, gas knockouts in
the side refractories should be positioned towards back
of fi replace. See Figure 7.13.
Front Face
Smoke Shield
Remove these screws.
Skip Skip
Figure 7.10 Remove Smoke Shield
F. Install Refractory
Figure 7.9 Remove Smoke Shield
• Fasten in place with the refractory retainer and screws
provided. See Figure 7.12.
Figure 7.13 Install Side Refractory
Figure 7.14 Side Refractory Installed
• Place side refractory into fi replace. Position towards
front of fi replace and slide to the rear. See Figures 7.13
and 7.14. Repeat for the second side refractory.
We recommend two installers for hearth stone and re-
fractory installation!
• Remove smoke shield by removing fi ve screws (starting
from one side: remove two, skip one, remove one, skip
one, remove two). See Figures 7.9 and 7.10.
