F. Sidewalls/Surrounds
• Adjacent combustible sidewalls must be located
a minimum of 24 in. (610 mm) from the fireplace
opening.
• Combustible or non-combustible mantel legs, surrounds
and stub walls may be constructed per Figure 11.12.
60 5/8 in.
[1540 mm]
50 in.
[1270 mm]
24 in.
[610 mm]
19 3/4 in. [502 mm]
24 in.
[610 mm]
22 3/8 in. [568 mm]
FLUSH FRONT
4 in.
[102 mm]
BRICK
FRONT
50° angle
39° angle
Grid represents inch scale.

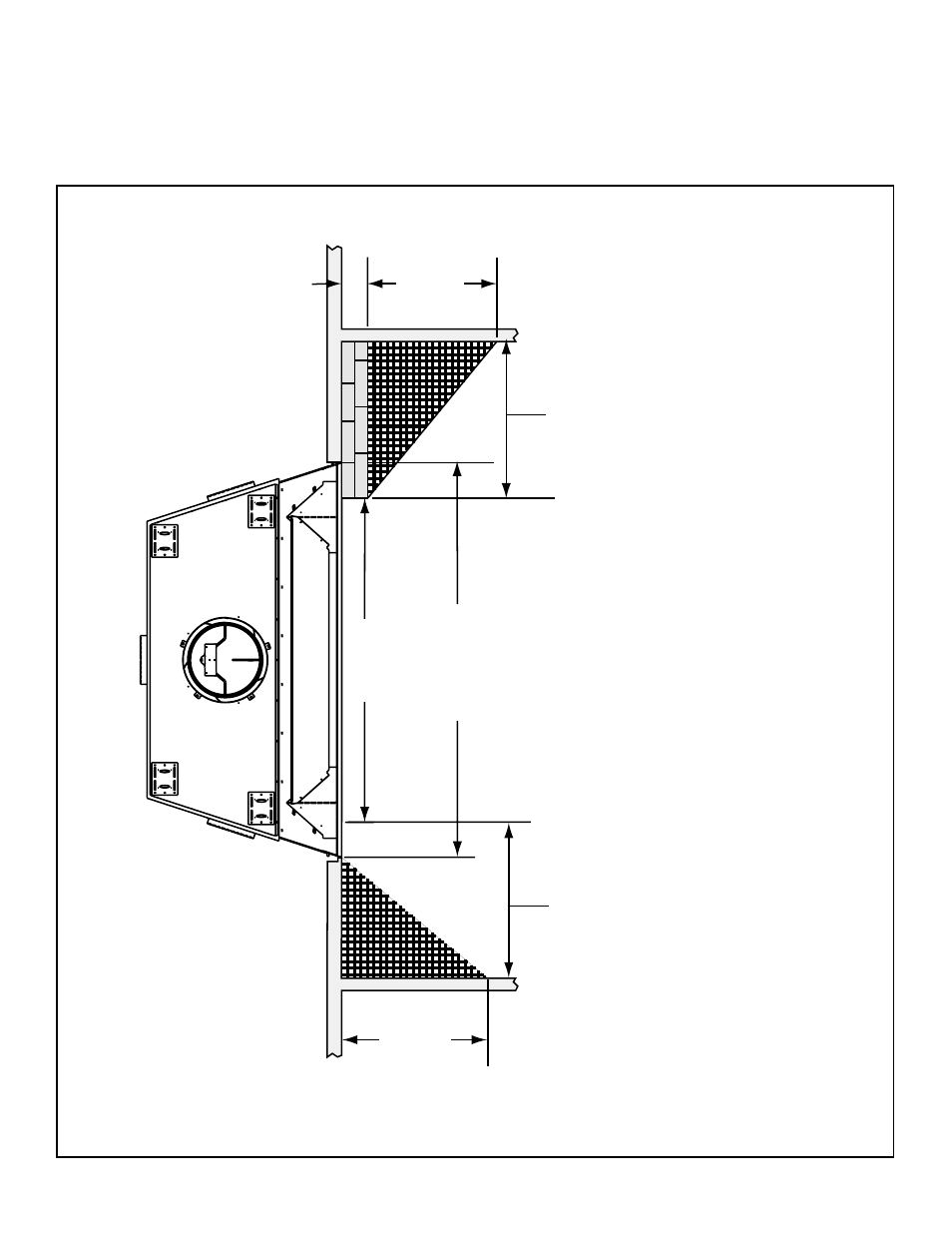

Figure 11.12 Mantel Leg or Wall Projections (acceptable on both sides of opening)
