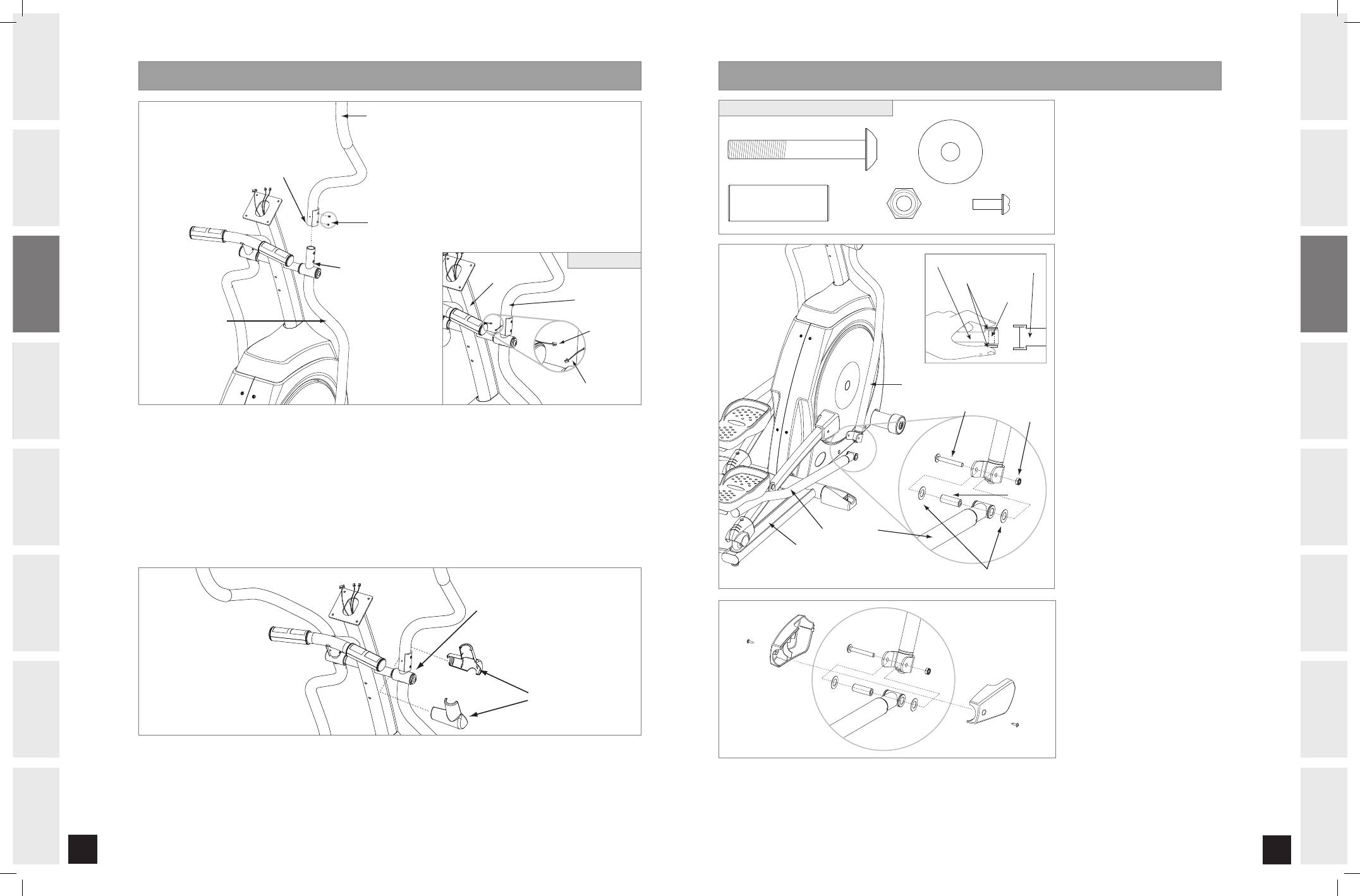

ASSEMBLY STEP
GUIDE RAIL
LOWER LINK ARM
SPACER
TEFLON WASHERS
LOWER
HANDLEBAR
LOWER LINK ARM
TEFLON WASHERS (O)
SPACER (P)
L0WER HANDLEBAR
NUT (Q)
BOLT (N)
A) Open
HARDWARE BAG FOR
STEP 6.
B) Insert
SPACER (P) into LOWER
LINK ARM.
C) Insert 2
TEFLON WASHERS (O)
between the
LOWER LINK ARM
and
LOWER HANDLEBAR.
D) Attach
LOWER LINK ARM to
LOWER HANDLEBAR using
BOLT (N) and NUT (Q).
E) Attach
INSIDE & OUTSIDE
ELBOW COVERS together using
2
SCREWS (R).
F) Repeat on other side.
NOTE: If you have difficulty
fitting the lower link arm into
the lower handlebar bracket,
slide the roller wheel forward
or backward on the guide
rail for better access to the
bracket.
BOLT (N)
60 mm
Qty: 2
SPACER (P)
44 mm axis
Qty: 2
NYLON
NUT (Q)
Qty: 2
TEFLON WASHER (O)
28 mm
Qty: 4
SCREW (R)
15 mm
Qty: 4
HARDWARE BAG FOR STEP CONTENTS :
ASSEMBLY STEP (CONTINUED)
PRE-ATTACHED
SET SCREWS
UPPER HANDLEBAR
LOWER HANDLEBAR
TAB
NOTCH
NOTE: There is NO hardware bag for this step. All hardware is pre-installed.
A) Slide
UPPER HANDLEBAR onto LOWER HANDLEBAR and align NOTCH with TAB making sure handlebars are
joined together completely. Secure
UPPER HANDLEBAR to LOWER HANDLEBAR using PRE-ATTACHED SET
SCREWS.
B) Repeat on other side.
C) (For 4.3E only) Attach
WIRE from UPPER HANDLEBAR to WIRE from CONSOLE MAST.
D) Snap the front and back HANDLEBAR COVERS together onto the UPPER HANDLEBARS. Note the position
ot the snap tabs on the covers before snapping into position. (On 4.3E, tuck wires inside of
HANDLEBAR
COVERS, CAREFUL not to pinch any wires).
E) Repeat on other side.
HANDLEBAR COVERS
UPPPER HANDLEBAR
SCREW (R)
SCREW (R)
INSIDE ELBOW COVER
OUTSIDE ELBOW COVER
UPPPER HANDLEBAR
UPPPER HANDLEBAR WIRE
CONSOLE WIRE
CONSOLE MAST
FOR 4.3E ONLY
