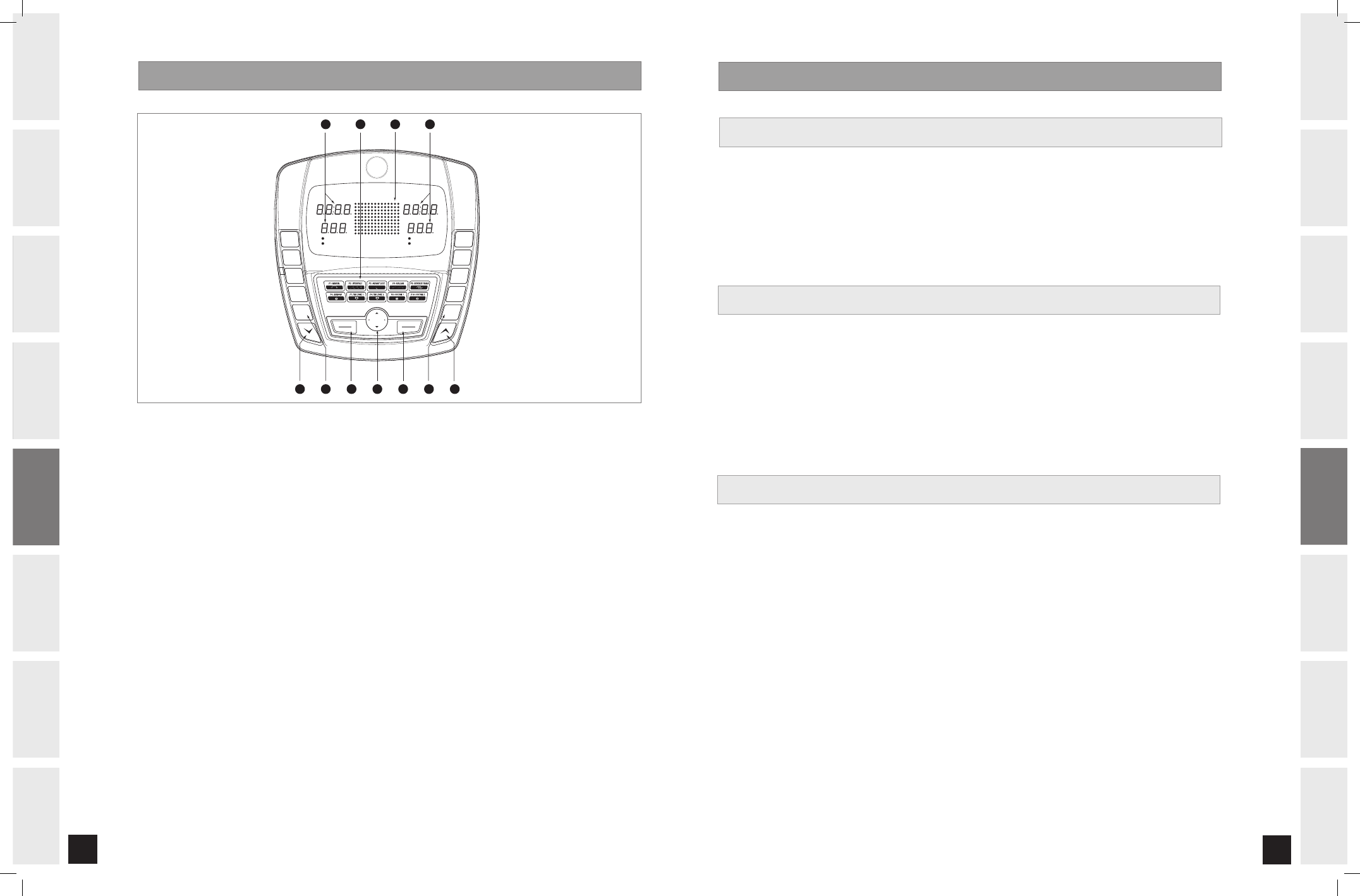

4.3E CONSOLE DISPLAY
C H A N G E D I S P L A Y
SPEED
HEART RATE
CALORIES
RESISTANCE/LEVEL
TIME
DISTANCE
2
4
6
8
10
12
14
16
18
20
S T A R T
QUICK START
S T O P
HOLD TO RESET
ENTER
BACK
A
A
B
C
D
E
F
G
H
F
G
A) MONITOR DISPLAY: Speed, Time, Heart Rate, Distance, Calories, and Resistance Level.
B) LARGE LED WINDOW: Display program profiles.
C) STOP: Press to pause/end your workout. Hold for 3 seconds to reset the treadmill.
D) START: Press to begin exercising, start your program, or resume exercising after a pause.
E) PROGRAMMING BUTTON: Used to select Program, Level, Time, and other options. Press to change display
feedback during workout.
During programming:
ARROWS: Scrolls through programs and adjusts program settings.
ENTER: Confirms setting and advances to next step.
BACK: Returns to previous step.
F) ONE-TOUCH RESISTANCE KEYS: Used to reach desired resistance more quickly.
G) RESISTANCE ARROW KEYS: Used to adjust resistance in small increments.
H) QUICK PROGRAM KEYS: Used to select programs more directly.
2.3E - 4.3E CONSOLE OPERATION
1)
Turn on Elliptical.
2)
Press START button and begin exercising.
3)
Program will automatically default to MANUAL (P1), the time will count up from 0:00, and the resistance
will default to level 1.
4)
The resistance level can be adjusted during the workout.
1)
Select a program using the PROGRAM QUICK KEY key and press ENTER.
*NOTE: If you press START, the program will begin and counts up from 0:00 for the manual program,
and count down from 30:00 for all other programs. The level defaults to 1.
2)
Select a LEVEL using the ARROW KEYS on the programming button and press ENTER.
3)
Set TIME using the ARROW KEYS on the programming button and press START.
QUICK START
SELECTING PROGRAMS
1)
Select CUSTOM PROGRAM using the PROGRAM QUICK KEY and press ENTER.
2)
Set TIME using the ARROW KEYS on the programming button and press ENTER.
3)
Set the RESISTANCE PROFILES using the ARROW KEYS on the programming button and
press ENTER after each RESISTANCE PROFILE is set to the desired level (repeat until all 15
segments are chosen).
*NOTE: if BACK is pressed on the programming button, it will take you back to previous
segment.
4)
Press START to begin the program.
*NOTE: To reset the memory press and hold the ENTER button for 5 seconds.
SELECTING CUSTOM PROGRAMS
