Maintenance – Husqvarna 16 User Manual
Page 36
34
– English
MAINTENANCE

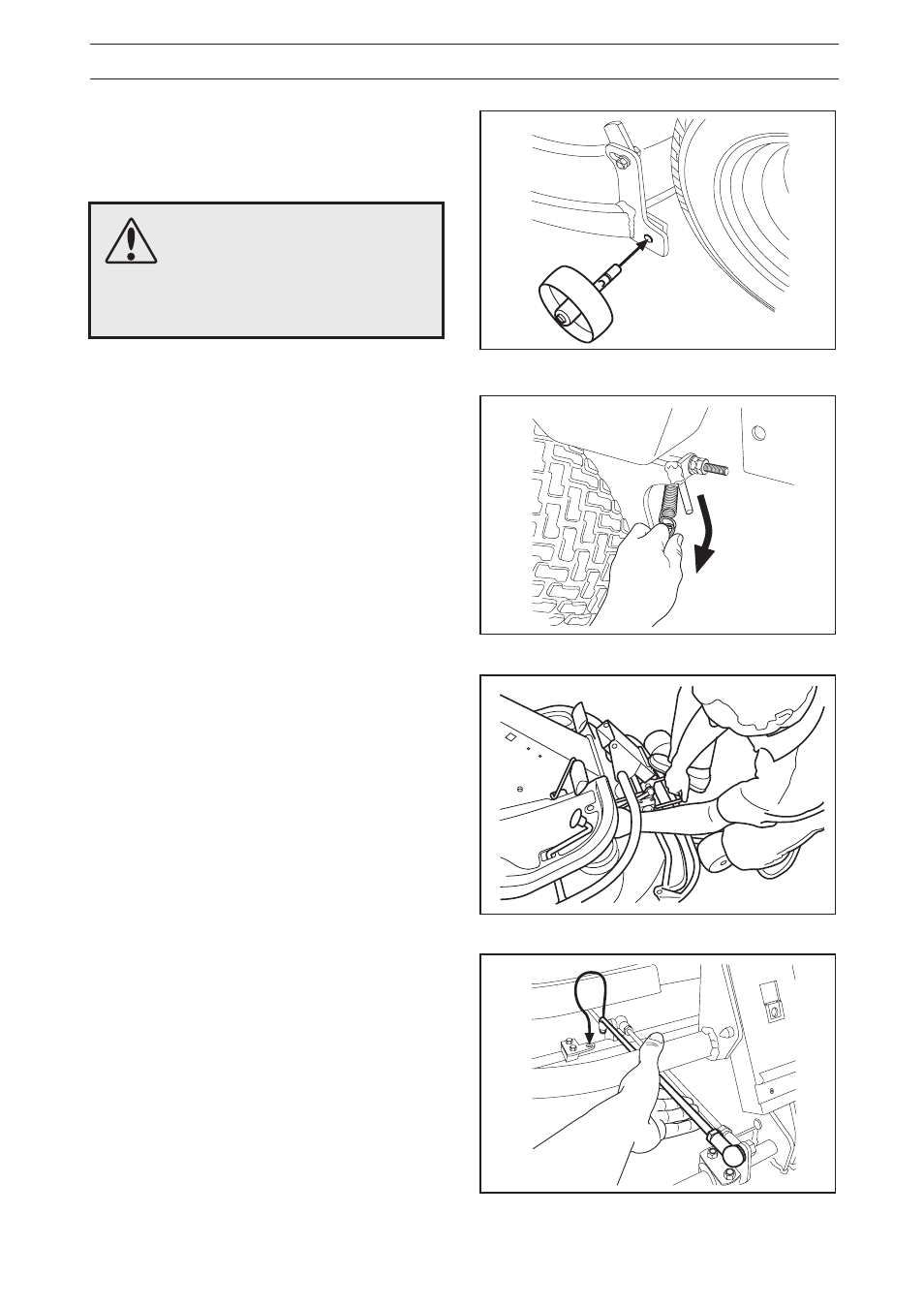

4. Fit the support wheels on either side of the rear
of the cutting unit.
5. Disengage the spring from the drive belt
tensioning wheel.
6. Place a foot on the front edge of the cutting unit
near the wheel and raise the front edge of the
unit to make it easier to remove the lift strut.
Engage the strut in the holder.
WARNING!
Wear protective glasses when
dismantling the cutting unit. The
spring which tensions up the belt
can go off and cause personal
injury.
6017-221
6017-222
8009-122
6017-223
