English –
31
MAINTENANCE

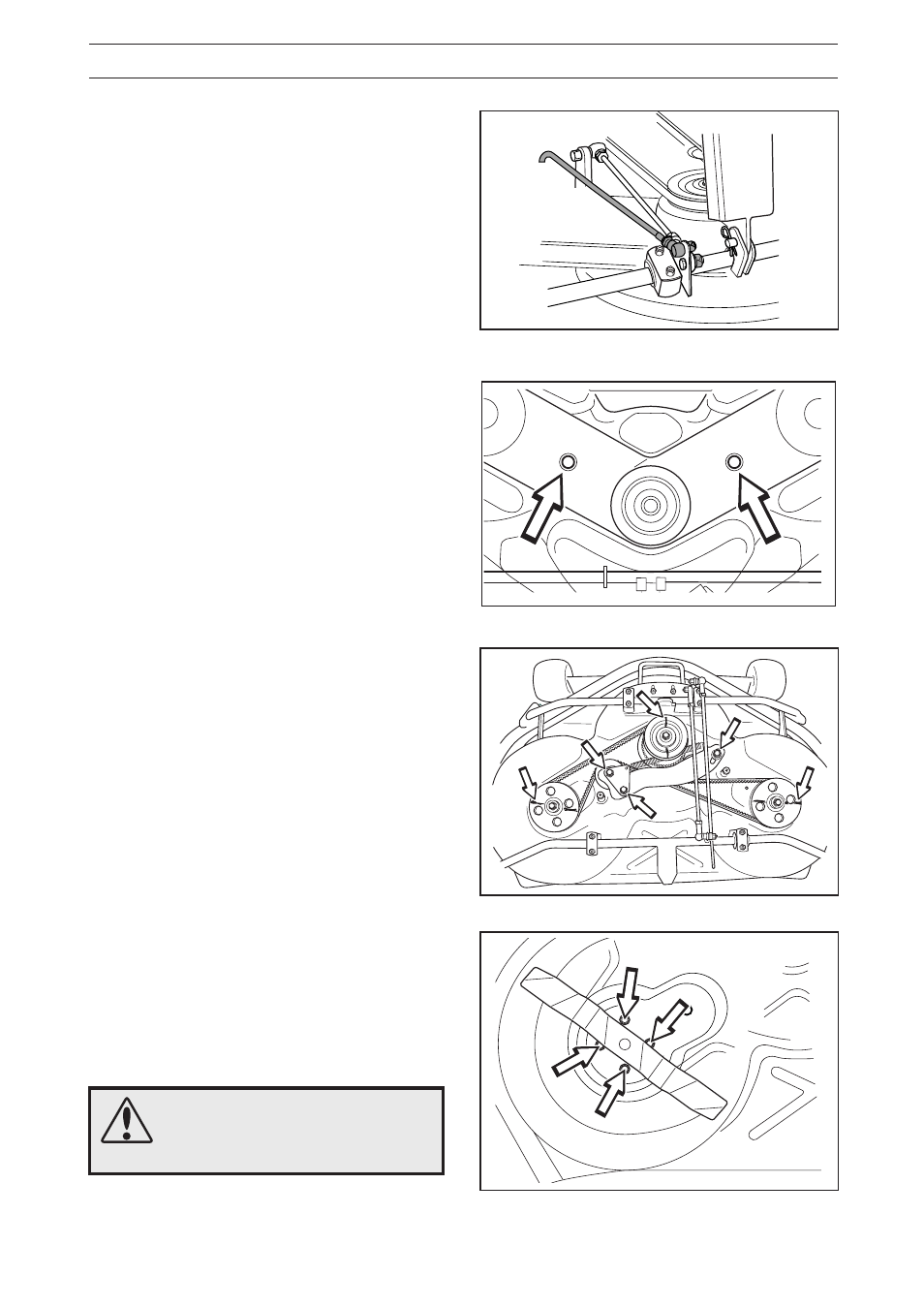

Replacing the cutting unit belts
Belt change on BioClip 103
There are two versions of BioClip 103. Version 1
has one toothed belt and version 2 has two. The
toothed belts drive the blades and synchronise their
rotation. The belts are located under a cover on top
of the cutting unit.
1. Remove the cutting unit, see page 30.
2. Remove the front bolt from the parallel strut and
tip the strut backwards. Push the height
adjustment strut forwards.
3. Loosen the two bolts holding the protective hood
and then lift off the hood.
Useful hint: Mark the positions of the blades on
the respective pulley using a felt-tip pen.
WARNING!
Wear gloves to protect your
hands when working with the
blades.
6017-154
6016-110
8009-173
6017-161
BioClip 103 Version 1
BioClip 103 Version 2
BioClip 103 Version 1 and 2
BioClip 103 Version 1 and 2
4. Version 2:
Loosen the nuts on the eccentric plate and turn
this away.
Loosen the four nuts (see diagram) holding the
outer blade bearing enough so that the bearing
can be moved.
Slide the blade bearing in towards the centre
bearing and pry off the upper belt.
Repeat the procedure for the lower belt.
4. Version 1:
Loosen the three bolts 1/2 - 1 turn. Press the
sides of the belt together to give maximum slack
and tighten one of the bolts. Replace the belt and
tighten as shown (see decal on cover). Set the
blades at 90º to each other and loosen the bolt
again. The spring ensures the correct belt ten-
sion. Check the positions of the blades again and
adjust if necessary by repositioning the belt on
the teeth. Tighten the three bolts to 45 Nm/32 lbft.
