Models
311826B 3
Models
Dura-Flo Pumps with NXT
™
Air Motors

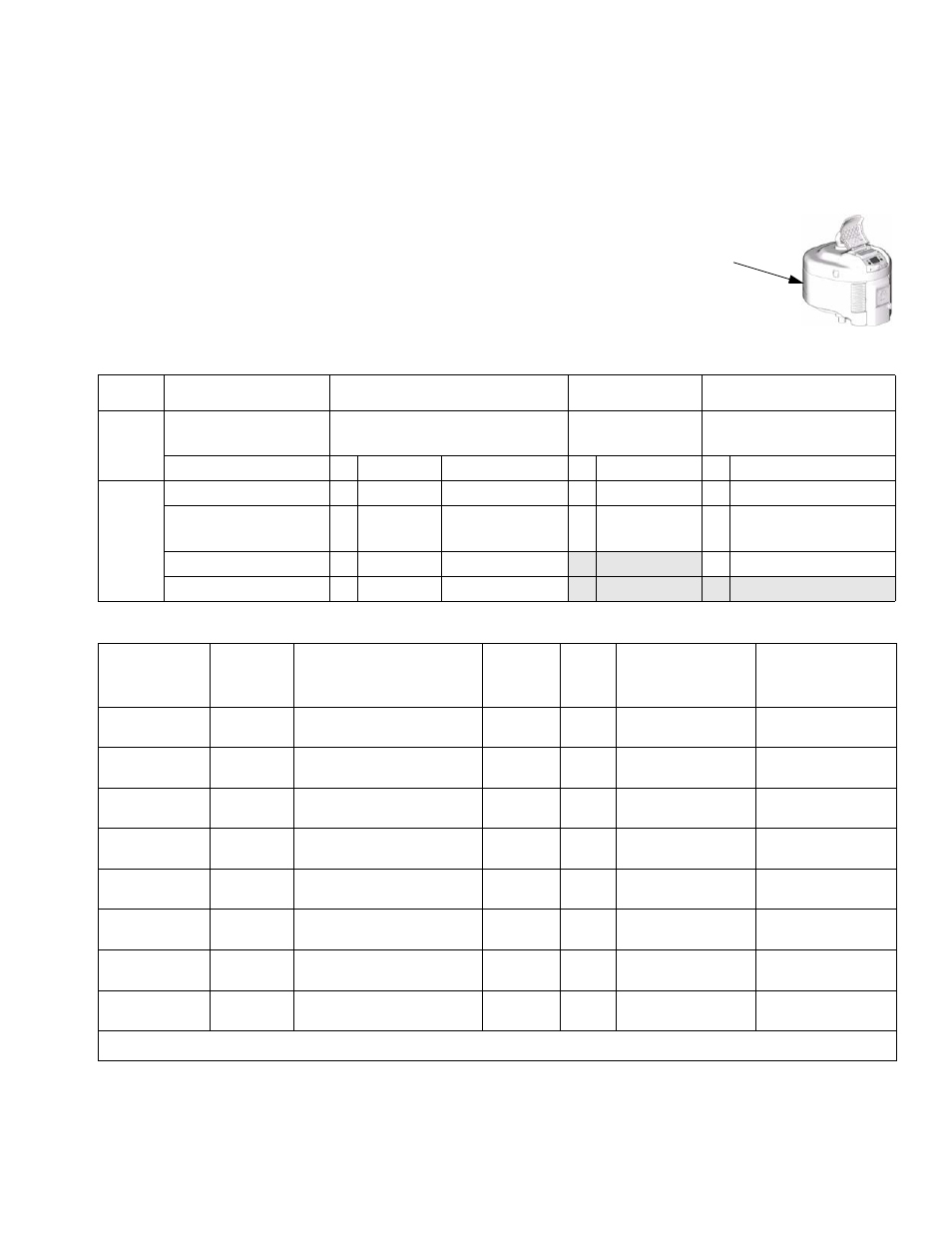

Check your pump’s identification plate (ID) for the 6-digit part number of your
pump. Use the following matrix to define the construction of your pump, based
on the six digits. For example, Pump Part No. P 1 5 M C D represents the
pump (P), pressure ratio (1 5 :1), low noise exhaust motor with DataTrak
™
(M),
carbon steel construction (C), and 3 ptfe/2 leather packing configuration (D). To
order replacement parts, see Parts section starting on page 18. The digits in
the matrix do not correspond to the Ref. Nos. in the Parts drawings and lists.
ID
P 1 5 M C D
First
Digit
Second and Third
Digit Fourth Digit Fifth Digit Sixth Digit
Pressure Ratio (xx:1) Exhaust Communication Material Packings
P
(pumps)
12 D De-Icing none C Carbon Steel A 3 uhmwpe/2 ptfe
15 E De-Icing DataTrak S Stainless
Steel B 3 uhmwpe/2
Tuff-Stack
™
23 L Low Noise none D 3 ptfe/2 leather
32 M Low Noise DataTrak
Pump Part
No. and
Series
Lower
Part No. Lower Model, Packings
Air
Motor
Part No. Ratio
Maximum
Working Pressure
MPa, bar (psi)
Maximum Air
Input Pressure
MPa, bar (psi)
P12LCD, A 222801 Dura-Flo 2400 (580 cc) cst,
3 PTFE/2 leather
N34LN0 12:1 8.2, 82 (1190) 0.7, 7.0 (100)
P12LSA, A 222803 Dura-Flo 2400 (580 cc) sst,
3 UHMWPE/2 PTFE
N34LN0 12:1 8.2, 82 (1190) 0.7, 7.0 (100)
P12MCD, A 222801 Dura-Flo 2400 (580 cc) cst,
3 PTFE/2 leather
N34LT0 12:1 8.2, 82 (1190) 0.7, 7.0 (100)
P12MSA, A 222803 Dura-Flo 2400 (580 cc) sst,
3 UHMWPE/2 PTFE
N34LT0 12:1 8.2, 82 (1190) 0.7, 7.0 (100)
P12DSA, A 222803 Dura-Flo 2400 (580 cc) sst,
3 UHMWPE/2 PTFE
N34DN0 12:1 8.2, 82 (1190) 0.7, 7.0 (100)
P12ESA, A 222803 Dura-Flo 2400 (580 cc) sst,
3 UHMWPE/2 PTFE
N34DT0 12:1 8.2, 82 (1190) 0.7, 7.0 (100)
P12DCD, A 222801 Dura-Flo 2400 (580 cc) cst,
3 PTFE/2 leather
N34DN0 12:1 8.2, 82 (1190) 0.7, 7.0 (100)
P12ECD, A 222801 Dura-Flo 2400 (580 cc) cst,
3 PTFE/2 leather
N34DT0 12:1 8.2, 82 (1190) 0.7, 7.0 (100)
Continued on page 4.
