Installation
10
311826B
Key:
A
Pump
B
Wall Bracket
D
Air Line Lubricator
E
Bleed-type Master Air Valve (required)
F
Pump Air Regulator
H
Electrically Conductive Air Supply Hose
J
Air Line Filter
K
Air Shutoff Valve
L
Fluid Filter
M
Fluid Drain Valve (required)
N
Electrically Conductive Fluid Supply Hose
P
Fluid Whip Hose
R
Gun Swivel
S
Airless Spray Gun
T
Fluid Suction Kit
U
Main Air Supply Line
V
Air Line Drain Valve
Y
Pump Ground Wire (required, see page 8 for installation
instructions)
F
IG

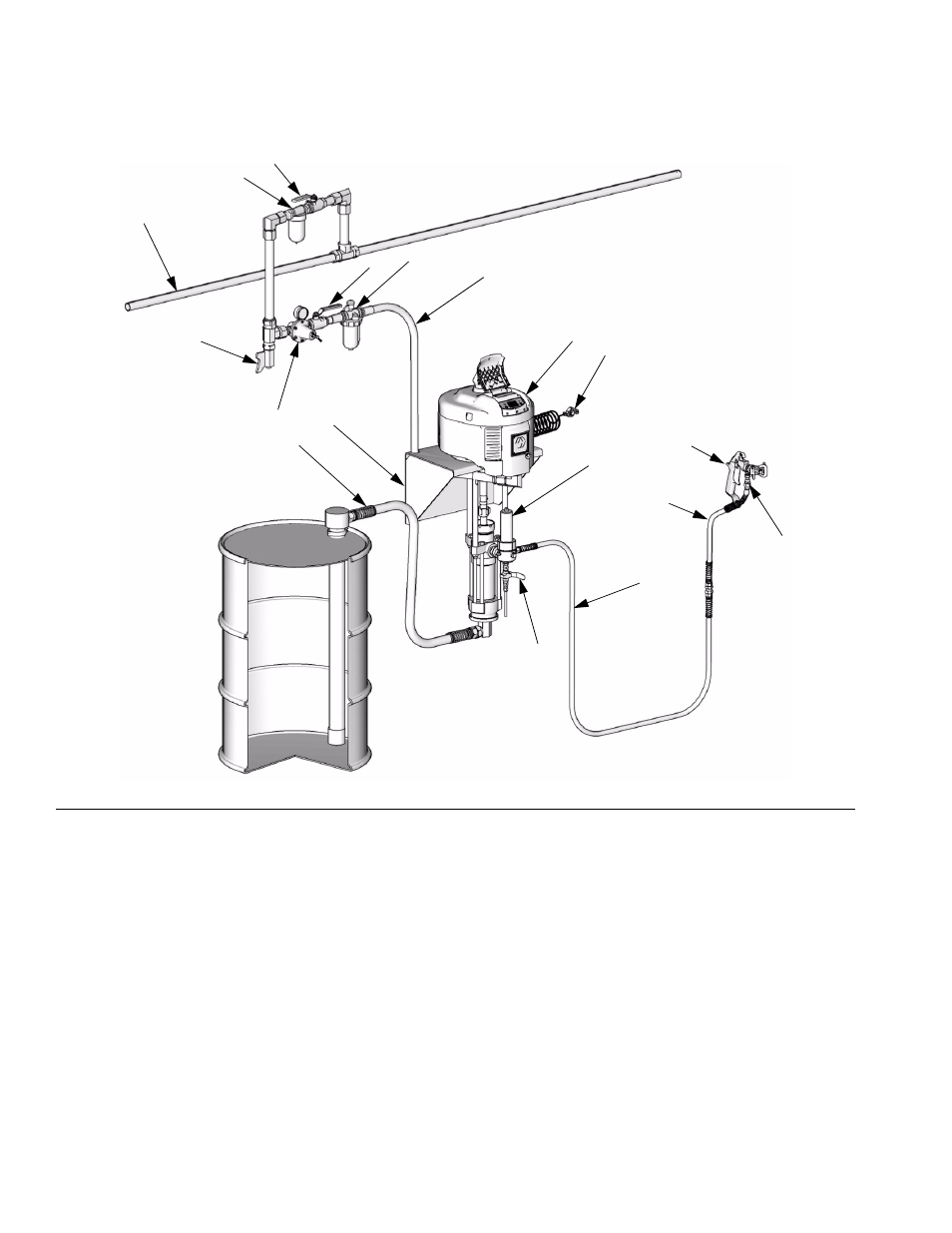

. 1: Typical Installation, Air-Powered Pumps
TI8433a
