Installation
311826B
11
Key:
A
Pump
B
Wall Bracket
C
Hydraulic Supply Line
D
Hydraulic Return Line
E
Drain Line (from pressure reducing valve)
F
Pressure Gauge
G
Flow Control Valve
H
Pressure Reducing Valve
J
Accumulator
K
Drain Line (from motor drip pan)
L
Fluid Filter
M
Fluid Drain Valve (required)
N
Electrically Conductive Fluid Supply Hose
P
Fluid Whip Hose
R
Gun Swivel
S
Airless Spray Gun
T
Fluid Suction Kit
U
Hydraulic Supply Line Shutoff Valve
V
Hydraulic Return Line Shutoff Valve
W
Hydraulic Return Line Filter
X
Hydraulic Power Supply
Y
Pump Ground Wire (required, see page 8 for installation
instructions)
Z
Drainage Container

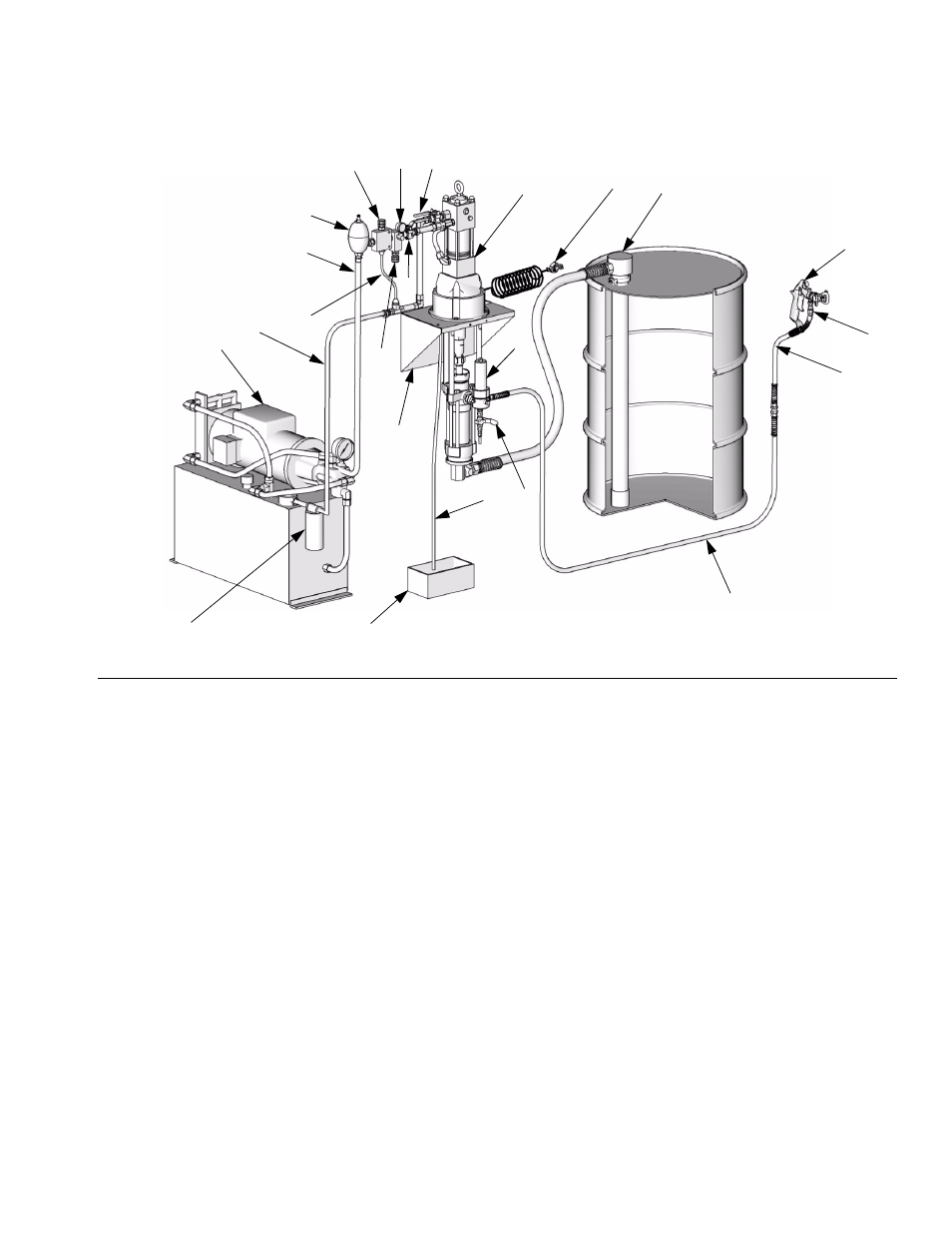

F
IG
. 2: Typical Installation, Hydraulic-Powered Pumps
TI8434a
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
S
T
U
V
W
X
Y
Z
