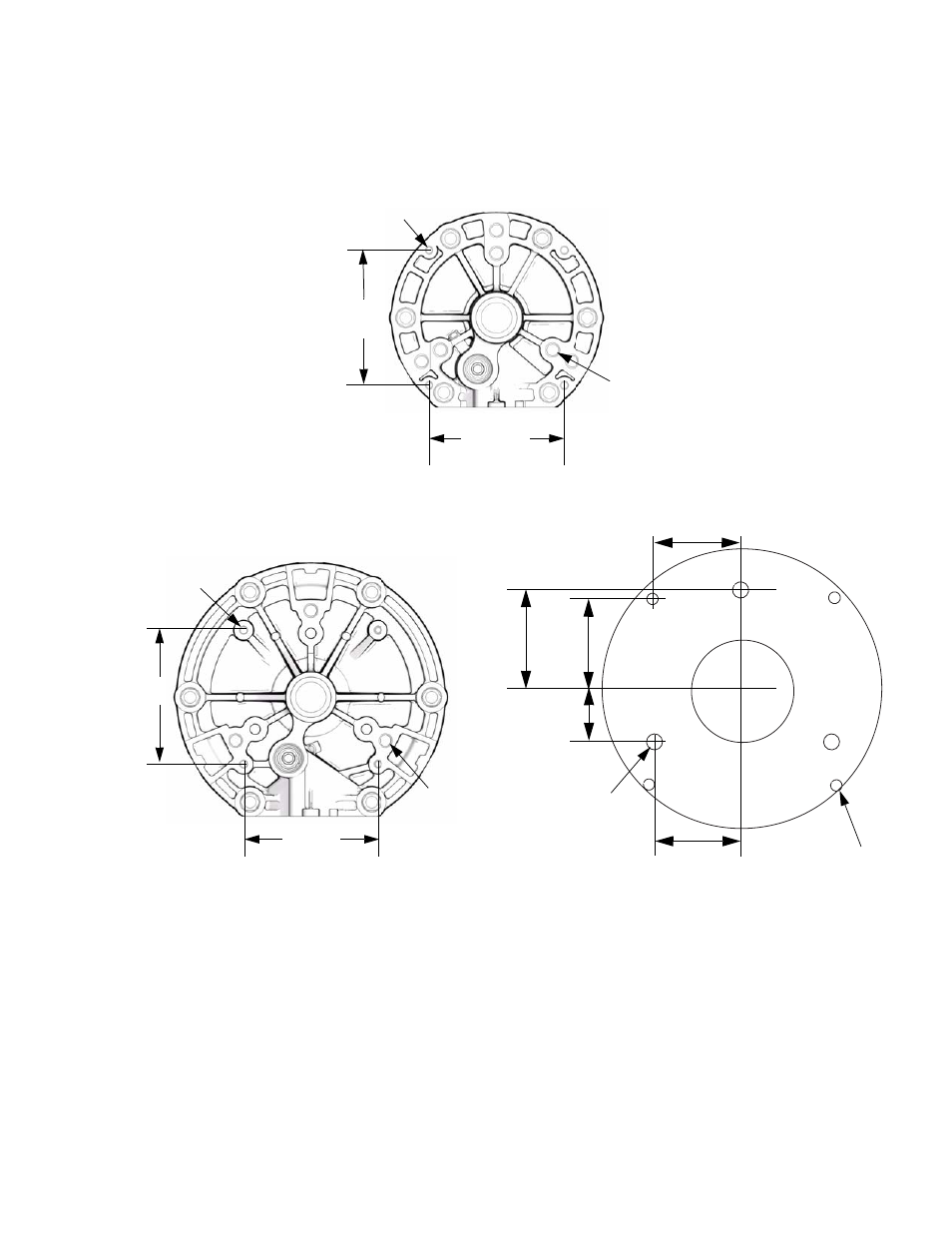

Mounting Hole Layouts
311826B 23
Mounting Hole Layouts
94.3 mm
(3.712 in.)
NXT Model 3400
NXT Model 6500
TI8069A
TI8070A
6.186 in.
(157 mm)
Three 5/8-11
Tie Rod Holes
Six 5/8-11 Tie
Rod Holes
6.186 in.
(157 mm)
6.186 in.
(157 mm)
6.186 in.
(157 mm)
Four 3/8-16
Mounting Holes
Four 3/8-16
Mounting Holes
Viscount
0653
Four 11 mm
(0.437 in.)
Mounting Holes
88 mm
(3.464 in.)
Three M16 x
2.0 Tie Rod
Holes
50.8 mm
(2.0 in.)
101.6 mm
(4.0 in.)
94.3 mm
(3.712 in.)
