Dimensions
22
311826B

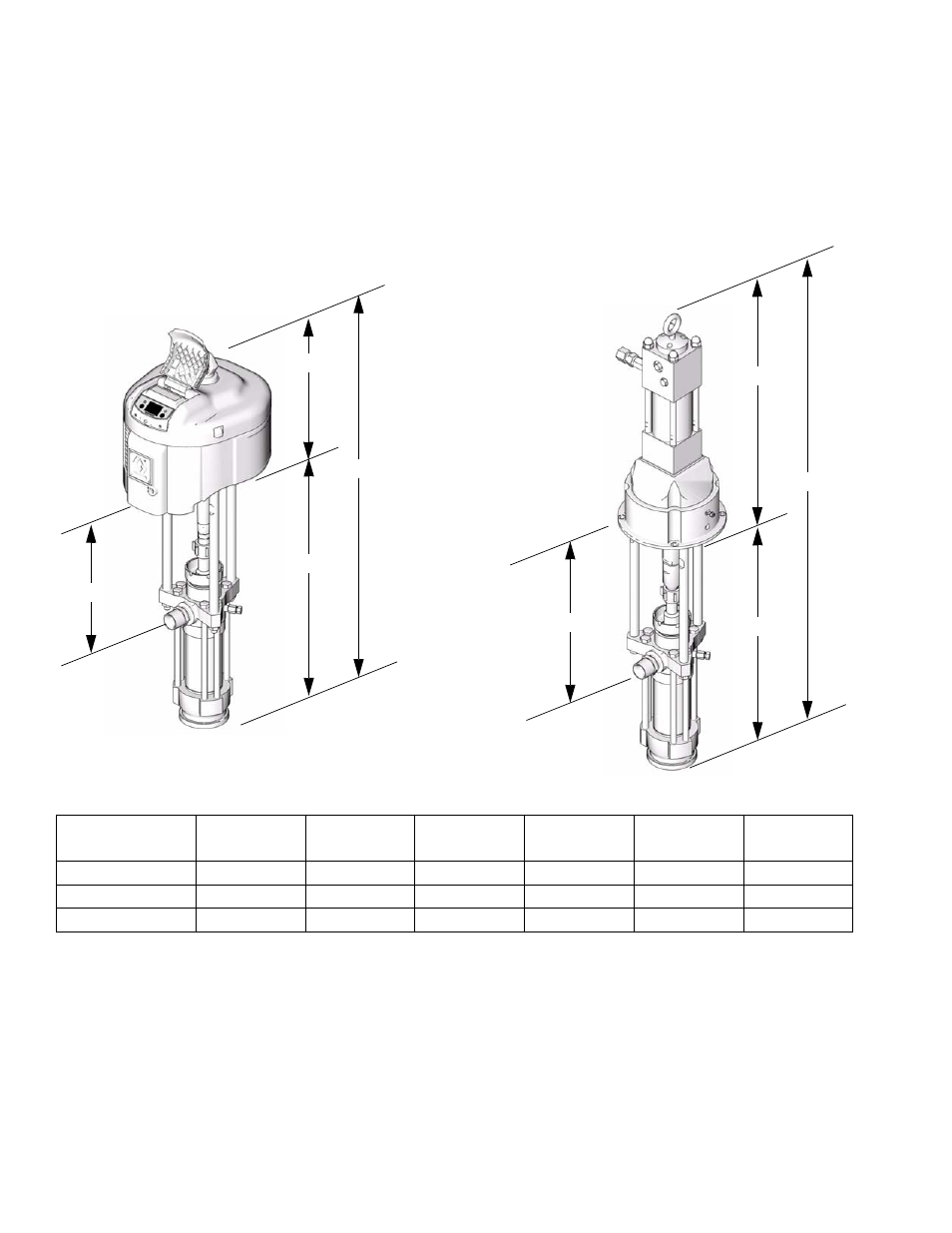

Dimensions
Dura-Flo Pumps with
NXT Air Motors
Dura-Flo Pumps with
Viscount Hydraulic Motors
A
B
C
D
A
B
C
D
TI8885a
TI8900a
Motor Model
Pump Model
A
mm (in.)
B
mm (in.)
C
mm (in.)
D
mm (in.)
Weight
kg (lb)
NXT Model 3400
All
1105 (43.5)
762 (30)
343 (13.5)
427 (16.8)
59 (130)
NXT Model 6500
All
1105 (43.5)
762 (30)
343 (13.5)
427 (16.8)
67.5 (149)
Viscount
All
1265 (49.8)
643 (25.3)
622 (24.5)
298 (11.7)
89 (196)
