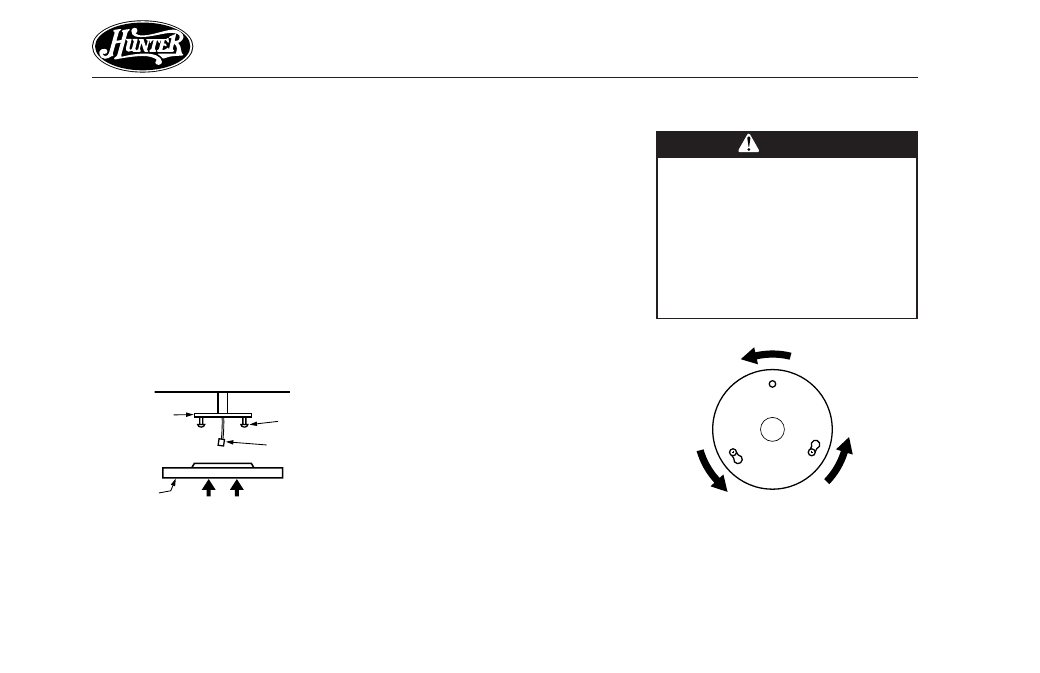

STEP 8 - ATTACHING THE SWITCH HOUSING

Figure 8a - Attaching Upper Switch
Housing to Switch Housing Mounting
Plate

Housing
Assembly
Screw

Switch
Housing
Mounting
Plate

Upper Plug
Connector

Upper
Switch
Housing

Figure 8b - Mounting the Upper
Switch Housing

CAUTION

Make sure the upper switch hous-
ing is securely attached to the
switch housing mounting plate.
Failure to properly attach and
tighten all three housing assem-
bly screws could result in the
switch housing and light fixture
falling.

The switch housing is made up of
two sections: the upper switch hous-
ing, and the lower switch housing.

ATTACHING THE UPPER SWITCH
HOUSING

1. Partially install two #6-32 x 3/8"

housing assembly screws into the
switch housing mounting plate as
shown in Figure 8a.

2. Feed the upper plug connector

through the center opening of the
upper switch housing. See Figure
8a.

3. Align the keyhole slots in the up-

per switch housing with the hous-
ing assembly screws installed in
sub-step 1.

4. Turn the upper switch housing

counterclockwise until the hous-
ing assembly screws are firmly
situated in the narrow end of the
keyhole slots as shown in Figure
8b. Install the one remaining #6-
32 x 3/8" housing assembly screw
into the third hole in the upper
switch housing. Tighten all three
screws firmly.
