Overview of Navigation and Controls
60
Activate Patrol (tour)
In Figure 4-32 , input the patrol (tour) number in the No. blank and click the
patrol button.
Pattern Setup
In Figure 4-32 , click Pattern and then click “begin. The interface is shown
as in Figure 4-36 . Then you can go to Figure 4-31 to modify zoom, focus,
and iris.
Go back to Figure 4-36 and click End. You can memorize all these
operations as pattern 1.

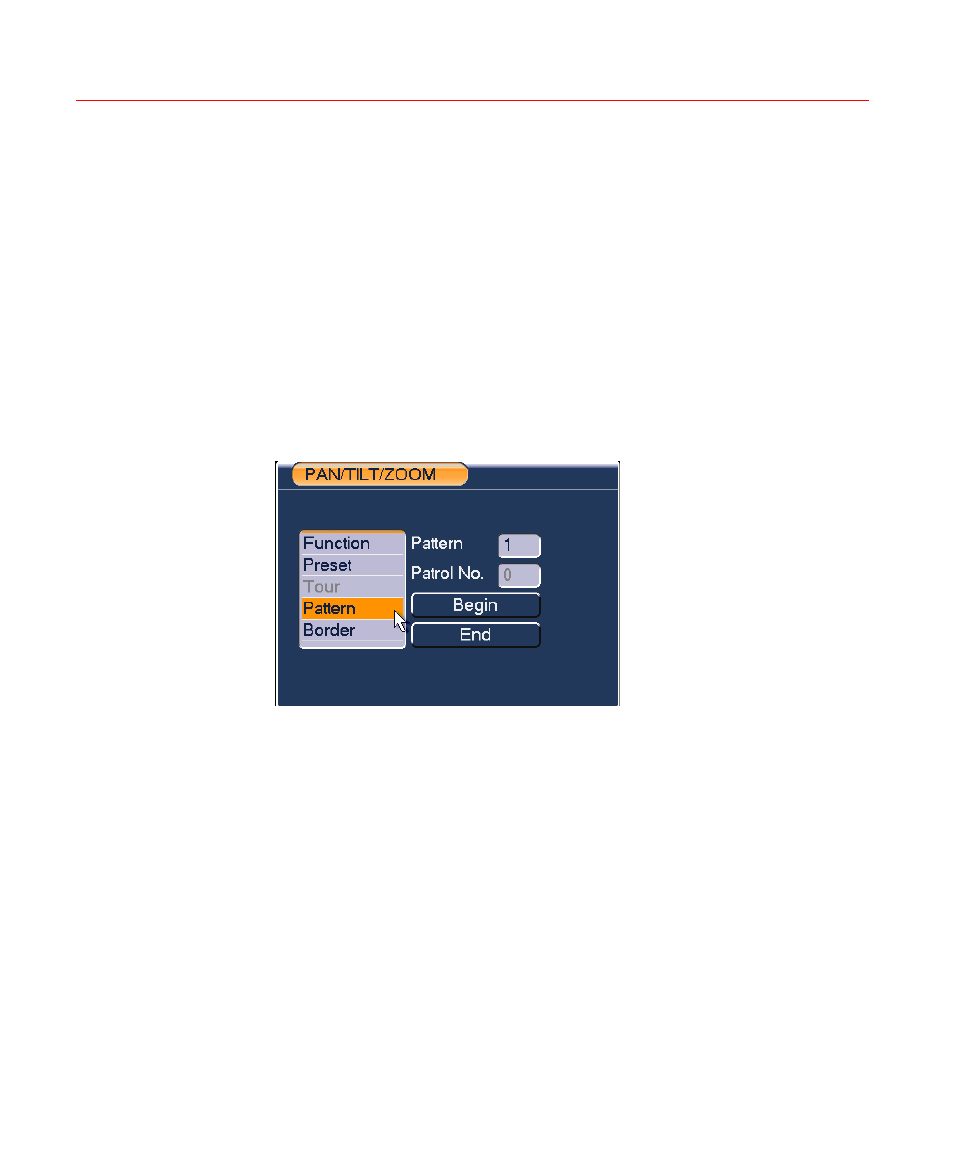

Figure 4-36 Pattern Setup
Activate Pattern Function
In Figure 4-33 , input a mode value in the “No.” field, and click Pattern.
Auto Scan Setup
In Figure 4-32 , click Border. The interface is shown in Figure 4-29 .
Please go to Figure 4-31 , use direction arrows to select camera left limit.
Then please go to Figure 4-37 and click left limit button
Repeat the above procedures to set right limit.
