HP Integrated OpenGL Interface Board
HP Integrated OpenGL Interface Board
OpenGL is a graphics language for describing three-dimensional objects.
The HP Integrated OpenGL Interface board has a processor that executes
OpenGL 3D graphics instructions autonomously of the main processor.
• The graphics controllers cannot be upgraded or reconfigured by the user,
or by HP personnel.
• Changes to the configuration are not supported. Make sure that the
jumpers and daughter board are configured as set by the manufacturer.

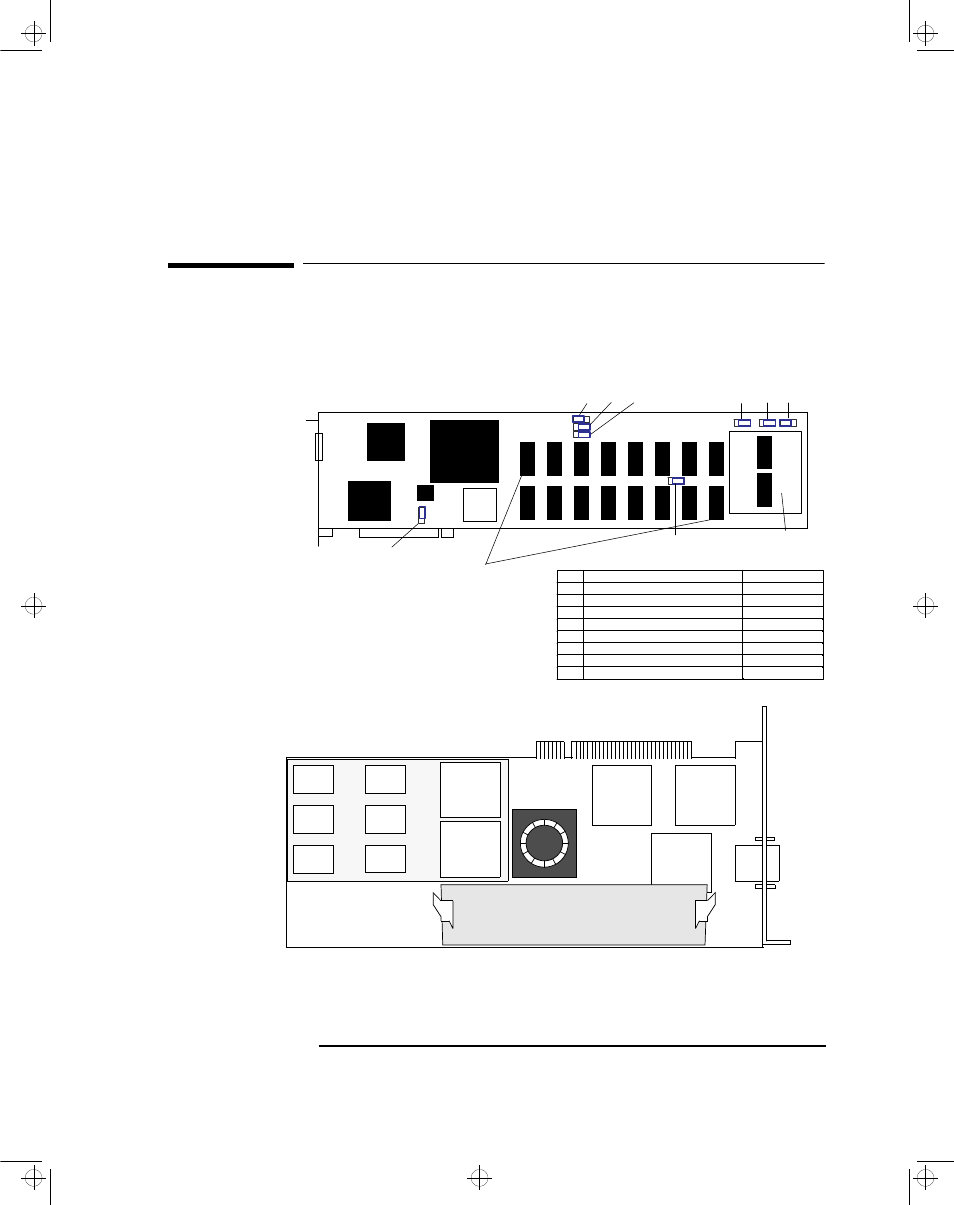

BIOS
...
......
...
...
...
...
...
H3 H5 H1 H0 H4 H6
H2
Function Default Setting
H0 EPROM Address 1-2
H1 Local Buffer Visible Region 1-2
H2 Frame Buffer Visible Region 2-3 (8 MB)
H3 Local Buffer Width 2-3 (8 MB)
H4 Local Buffer Width 2-3 (8 MB)
H5 Local Buffer visible Region 2-3
H6 Local Buffer visible Region 2-3
H7 on-board VGA enable/disable 1-2 (enable)
H7
3DLabs
Glint 500 TX
Avance Logic
VGA 3DLabs
Delta
RAMDAC
All jumper settings
are factory-set to the
default setting, and must
NOT be changed.
VRAM -frame buffer- memory
chips on front and back
make total of 8MB
DRAM -local buffer- memory
chips on and under daughter board
make total of 8MB
*
*
* Neither the frame buffer nor the local buffer can be upgraded
AccelPRO
installed on the
HP Vectra XW 6/xxx
and
HP Vectra XW 6/xxx
Series U1
AccelEclipse
installed on the
HP Vectra XW 6/xxx
Series W1
Da
ug
hte
r b
oa
rd
Daughter board
Cooling fan
PCI bus connector
Dis
pla
y co
nn
ect
or
