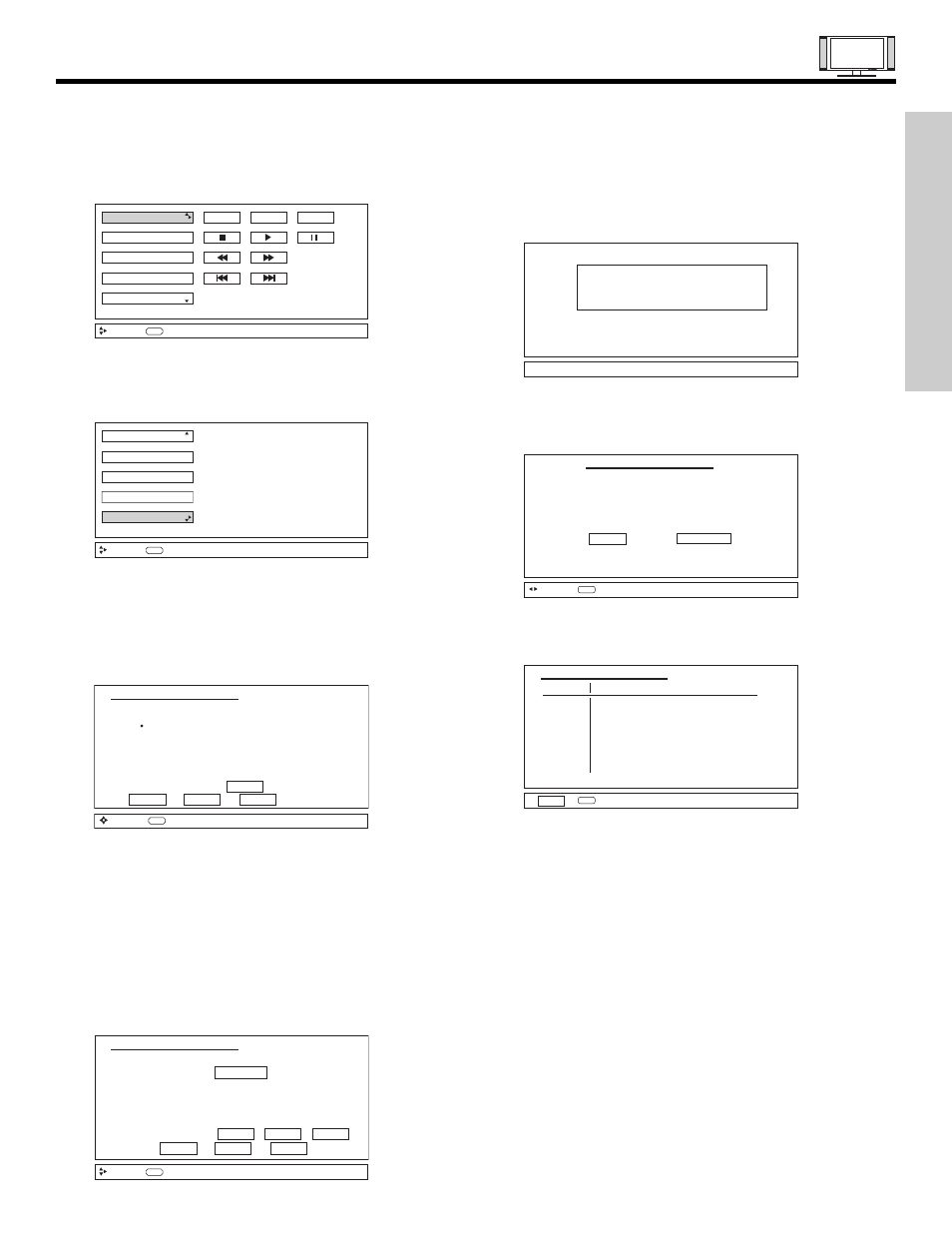

AV NETWORK SETUP WIZARD
23
FIRST TIME USE
SETUP PROCEDURE USING AV NETWORK DEVICE CODES:
A DVD Setup example is shown below. Setup of DVD2, VCR, VCR2, PV Recorder, Cable Box and Set-Top-Box follows this
same procedure. If your device is not listed or the device codes not work after following the setup procedure, please refer to the
AV NET Learning wizard procedure on pages 33-34.
1. Press the A/V Net button on the remote control.
2. Use CURSOR PADS ̆ or ̄ to highlight Device Setup.
3. Press the SELECT button or CURSOR PAD ̈ on the
remote control and the device selection screen appears.
4. Use the CURSOR PADS ̆ or ̄ to choose DVD and press
the SELECT button on the remote control.
5. The Setup button on the bottom of the screen becomes
highlighted. Press the SELECT button on the remote control
to enter the setup screen.
VCR
DVD2
DVD POWER
Move SEL Select
MENU
VCR2
AV Receiver
HOME
Set Top Box
Cable Box
PV Recorder
Move SEL Select
Custom
Device Setup
6. Using the remote, enter the four digit Device Code for your
equipment, found on page 25.
7. Use the CURSOR PAD ̄ to select Video Input. Press the
CURSOR PADS ̇ or ̈ to set the INPUT to which your
device is connected.
8. Repeat step 7 for Audio Input. If the DVD is connected to
the TV, select “Using TV”. If the DVD is connected to an external
amplifier, select “no connection”.
9. Press CURSOR PAD ̄ to select Transmission Test. Press
the CURSOR PADS ̇ or ̈ to select Power, Play, or CH UP
softkeys, before pressing the SELECT button to perform a
Transmission Test of the softkey selected. If the device
responds, then it is properly set up. Select OK. (If the
Transmission Test failed, try another code).
Please choose the device to set up.
( ) DVD ( ) Set Top Box
( ) DVD2 ( ) DVD3 (Custom)
( ) VCR ( ) VCR3 (Custom)
( ) VCR2 ( ) PVR2 (Custom)
( ) AV Receiver ( ) CBL2 (Custom)
( ) PV Recorder ( ) STB2 (Custom)
( ) Cable Box List
BACK SETUP MODIFY
Move SEL Select
HITACHI AV NET SET UP
DVD
Device Code - - - -
(Enter Code “9999” to uninstall)
Video Input No Connection
Audio Input No Connection
Transmission Test POWER PLAY CH UP
BACK OK EXIT
Move 0-9 Input
HITACHI AV NET SET UP
10. If “OK” was selected, and the 4 digit code was invalid, the
screen below appears, then goes back to the Device
Code entry screen.
11. Repeat Device Setup procedure until the screen
below appears.
12. Select CONTINUE to setup another device.
13. Select DONE to finish and the screen below appears to
show the device(s) which has been set-up.
14. Select EXIT to quit.
Find your DVD
ATTENTION
4-digit manufacturers code
and enter it here
Congratulations!
Your DVD is now connected
to your AV network.
Would you like to set up
another device?
Done Continue
Move SEL Select
HITACHI AV NET SET UP
DVD 0490 INPUT 2 Using TV
DVD2 ---- Not Setup Not Setup
VCR ---- Not Setup Not Setup
VCR2 ---- Not Setup Not Setup
AVR ---- Not Setup Not Setup
PVR ---- Not Setup Not Setup
CBL ---- Not Setup Not Setup
STB ---- Not Setup Not Setup
Custom ---- Not Setup Not Setup
EXIT SEL Select
Device Code Video Audio
HITACHI AV NET SET UP
