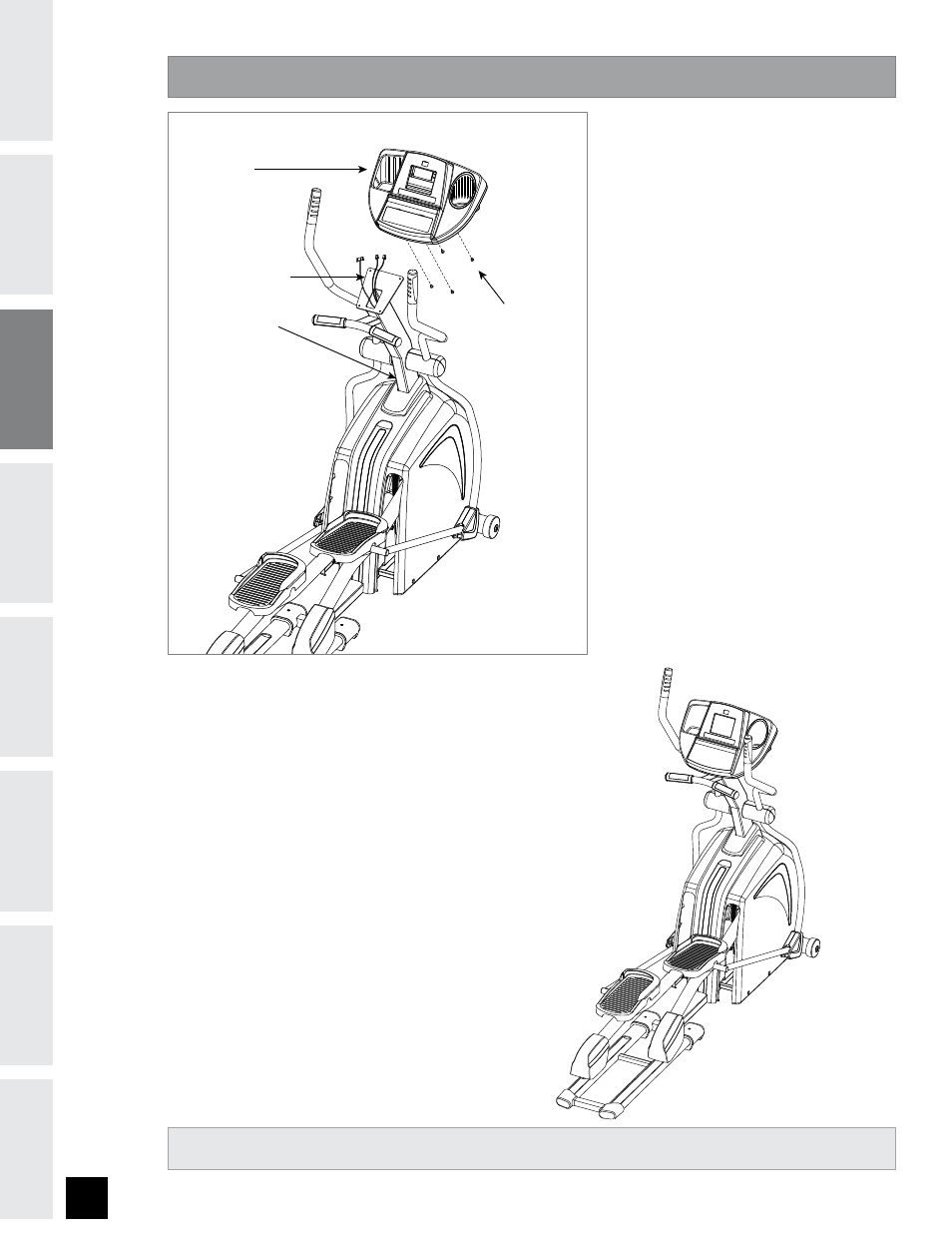

ASSEMBLY STEP 10
CONSOLE MAST
CONSOLE WIRES
PRE-ATTACHED
SCREWS
CONSOLE
NOTE: There is NO hardware bag for this
step. All hardware is pre-installed.
A) Attach the CONSOLE MAST wires to the
CONSOLE wires.
B) Carefully tuck the CONSOLE MAST wires
into the CONSOLE MAST before attaching
the CONSOLE.
C) Attach CONSOLE to the CONSOLE MAST
using the 4 PRE-ATTACHED SCREWS
(screws will have to be removed from
the console first).
DO NOT PINCH WIRES!
YOU’RE FINISHED!
