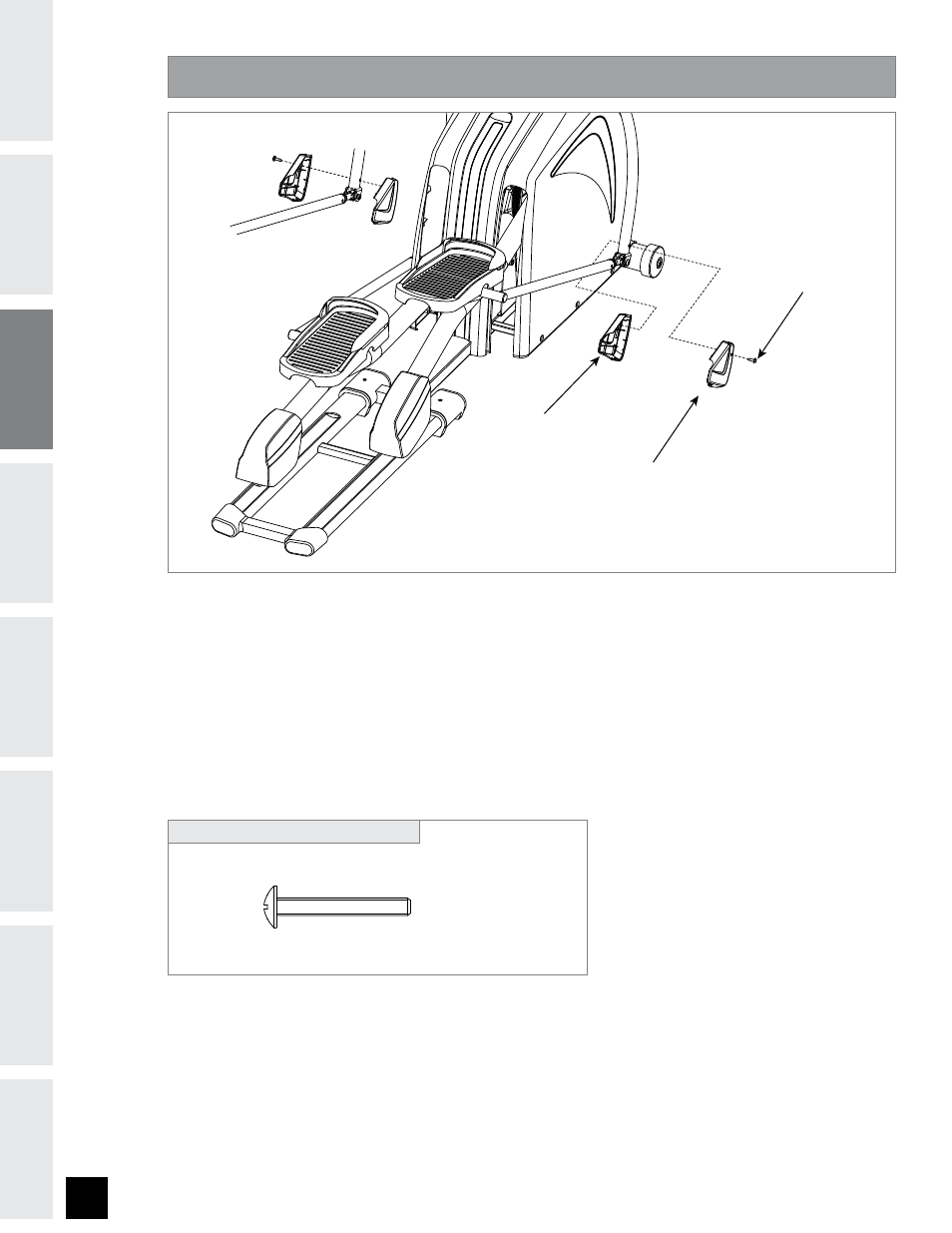

ASSEMBLY STEP
A ) Open HARDWARE BAG FOR STEP 8.
B) Attach the OUTSIDE ELBOW COVER to the elbow joint using 1 SCREW (L).
C) Snap the INSIDE ELBOW COVER onto the OUTSIDE ELBOW COVER. Note the position of the snap tabs before
snapping into position.
D) Repeat on other side.
SCREW (L)
OUTSIDE ELBOW COVER
INSIDE ELBOW COVER
SCREW (L)
30 mm
Qty: 2
HARDWARE BAG FOR STEP CONTENTS :
