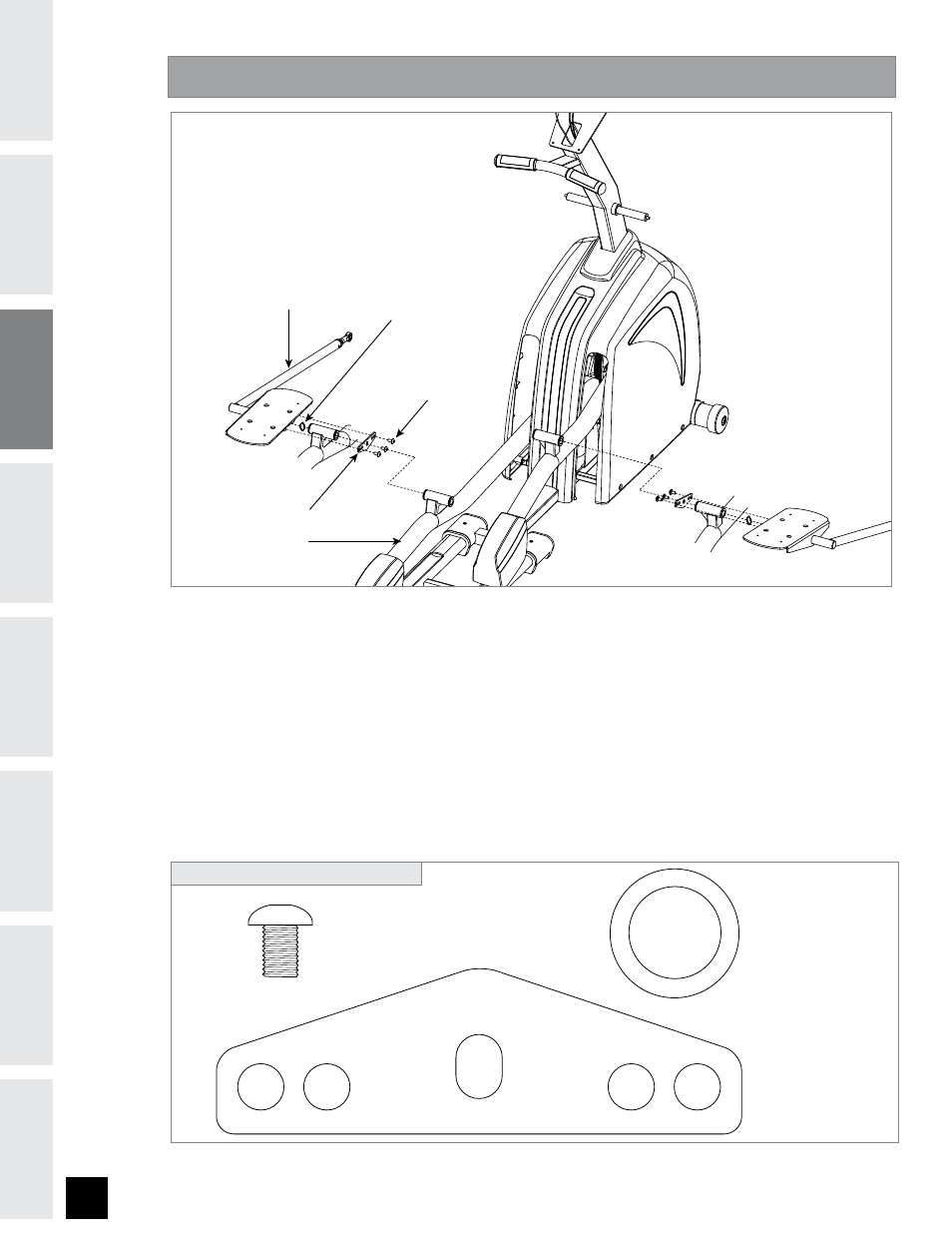

A) Open HARDWARE BAG FOR STEP 4.
B) Place WAVY WASHER (E) over the LINK ARM axle.
C) Slide the LINK ARM into the PEDAL ARM.
D) Attach FOOTPAD BRACKET to the LINK ARM with 3 BOLTS (B).
E) Repeat on other side.
LINK ARM
WAVY WASHER (E)
BOLT (B)
FOOT PAD BRACKET
PEDAL ARM
BOLT (B)
15 mm
Qty: 6
WAVY WASHER (E)
29 mm
Qty: 2
FOOTPAD BRACKET
Qty: 2
HARDWARE BAG FOR STEP CONTENTS :
ASSEMBLY STEP
