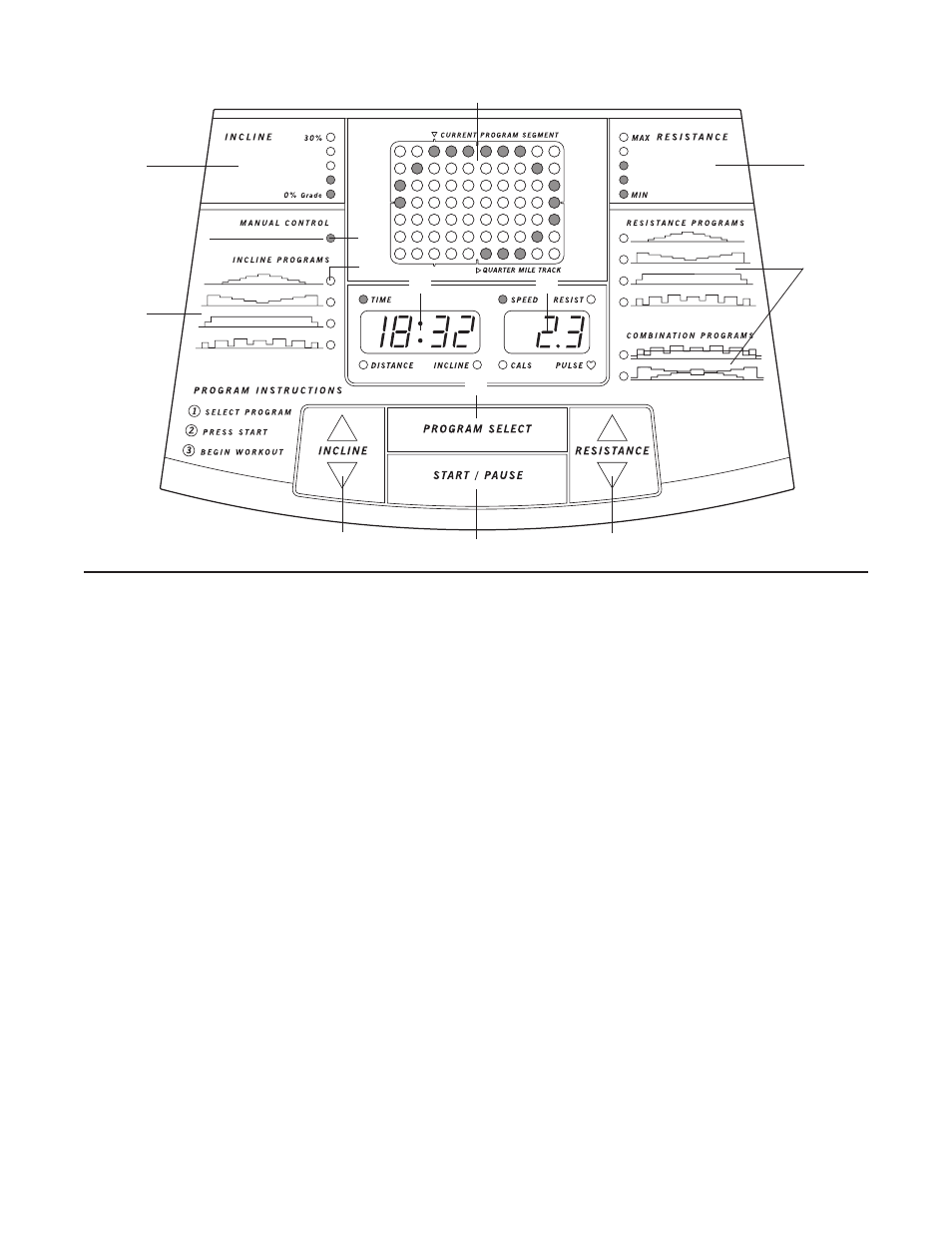

CONSOLE DIAGRAM

Note: If there is a thin sheet of clear plastic on the

face of the console, remove it.

A. Incline Display—This display shows the incline level

of the elliptical crosstrainer.

B. Program Profiles—These profiles show how the

incline or resistance of the elliptical crosstrainer will

change during workout programs. During the first

incline program, for example, the incline will gradu-

ally increase during the first half of the program,

and then gradually decrease during the last half.

C. MANUAL CONTROL Indicator—This indicator will

light to show when the manual mode is selected.

D. Program Indicators—These indicators light to show

when a workout program is selected.

E. LED Matrix—When the manual mode is selected,

the LED matrix will show your progress on an LED

track. When a preset program is selected, the

matrix will show your progress and upcoming

incline or resistance settings.

F. TIME/DISTANCE/INCLINE/LAPS Display—This dis-

play shows the elapsed time (or the remaining time

in a workout program), total distance, the incline

level, and the total number of quarter-mile laps

completed. The display will change modes every

five seconds. Note: The letter “L” will appear in the

display when the number of laps is shown.

G. SPEED/CALORIES/PULSE/RESISTANCE Display—

This display shows your current speed, approxi-

mate calories burned, and the resistance level. The

display will change modes every five seconds.

When the pulse sensor is used, the display will also

show your heart rate.

H. PROGRAM SELECT Button—This button is used

to select the manual mode and the workout pro-

grams.

I. INCLINE Buttons—These buttons control the incline

of the elliptical crosstrainer. Each time one of the

buttons is pressed, the incline level will change by

3%. The incline range is 3% to 30%.

J. START/PAUSE Button—This button is used to start

and pause the console.

K. RESISTANCE Buttons—These buttons control the

resistance of the elliptical crosstrainer. There are

ten resistance levels.

L. RESISTANCE Display—This display shows the

resistance level of the elliptical crosstrainer.
