5
13
96
Console
Wire
Console
Wire
3
96
4
7. Make sure that all parts of the elliptical crosstrainer are properly tightened. To protect the floor or carpet
from damage, place a mat under the elliptical crosstrainer.

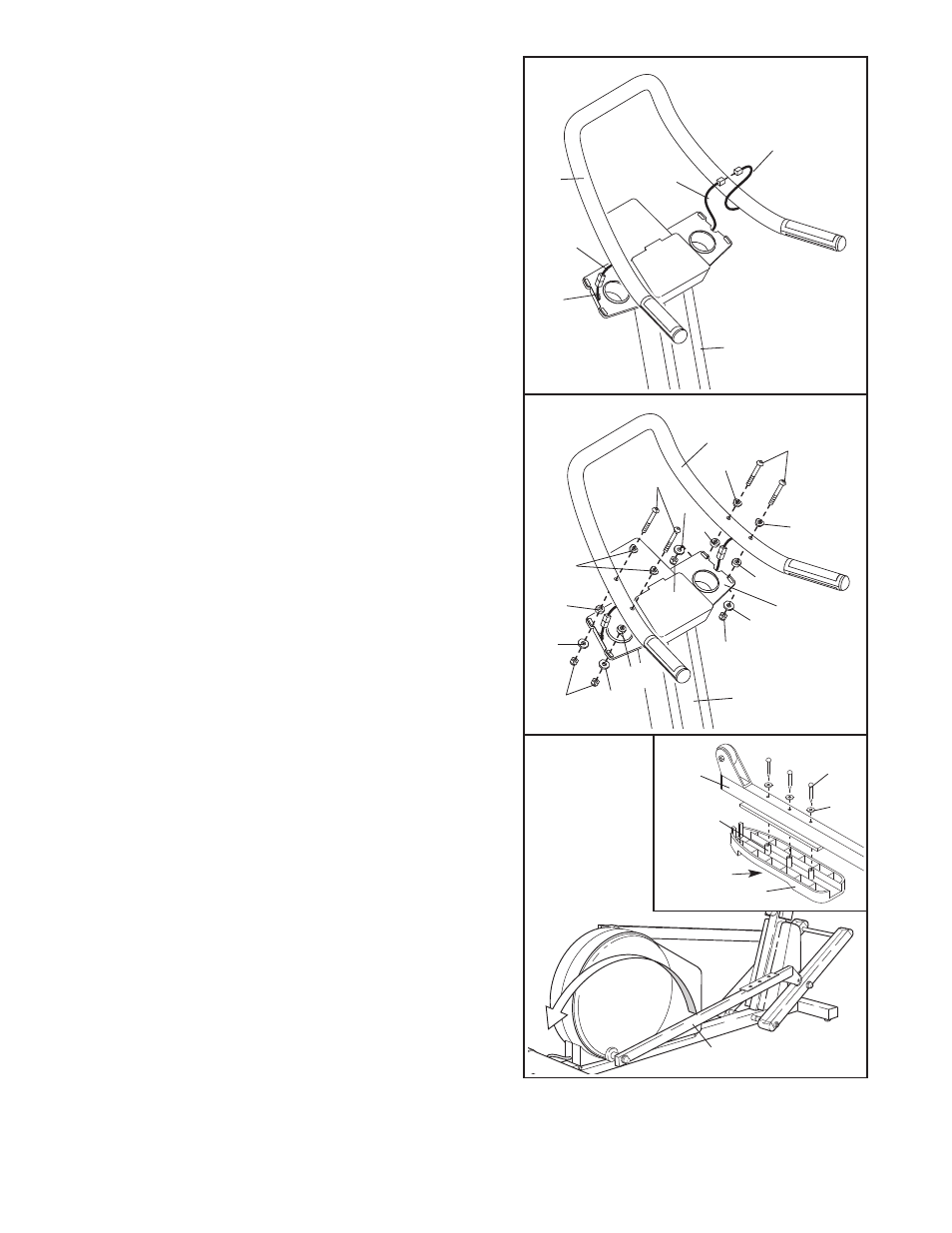

4. While another person holds the Handlebar (13) in the
position shown, connect the two console wires to the
two Pulse Wires (96).
Push the wires and connectors into the Handlebar (13).
5. With the help of another person, loosely attach the
right side of the Handlebar (13) to the Upright (3) with
two 3/8” x 2.75” Button Bolts (92), two 3/8” Curved
Washers (114), two Spacers (93), two 3/8” Washers
(94), and two 3/8” Nylon Locknuts (113). Make sure
that the Spacers are positioned between the
Handlebar and the console plate. Be careful to avoid
pinching the wires.
Attach the left side of the Handlebar (13) in the same
manner.
Firmly tighten all four 3/8” x 2.75” Bolts (92).
13
93
93
113
113
114
114
114
94
3 94
94
93
93
113
Console
Plate
92
92
94
5
6. Rotate the Right Pedal Leg (6) in the direction shown.
See the inset drawing. Identify the Right Pedal (23); the
Right Pedal has an opening on the indicated side. Slide
the Right Pedal onto the Right Pedal Leg (6) as shown.
Make sure that the plastic posts are completely inserted
into the holes in the Right Pedal Leg.
Place three #10 Washers (89) on three #8 x 1 1/2”
Screws (88). Insert the three Screws about halfway into
the Right Pedal Leg (6) and thread the Screws into the
plastic posts on the Right Pedal (23). Using a phillips
screwdriver, tighten the three Screws into the plastic
posts. Do not overtighten the Screws or the plastic
posts may break.
Attach the Left Pedal (not shown) in the same way.
6
Plastic
Posts
Opening
88
89
23
6
6
