ASSEMBLY
Assembly requires two people. Place all parts of the elliptical crosstrainer in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
The following tools are required for assembly: the included allen wrenches and your own
phillips screwdriver adjustable wrench and a rubber mallet .
1
39
76
7
91
14
Motor
Screw
39
2
90 94
3
1
3
87
Console
Plate

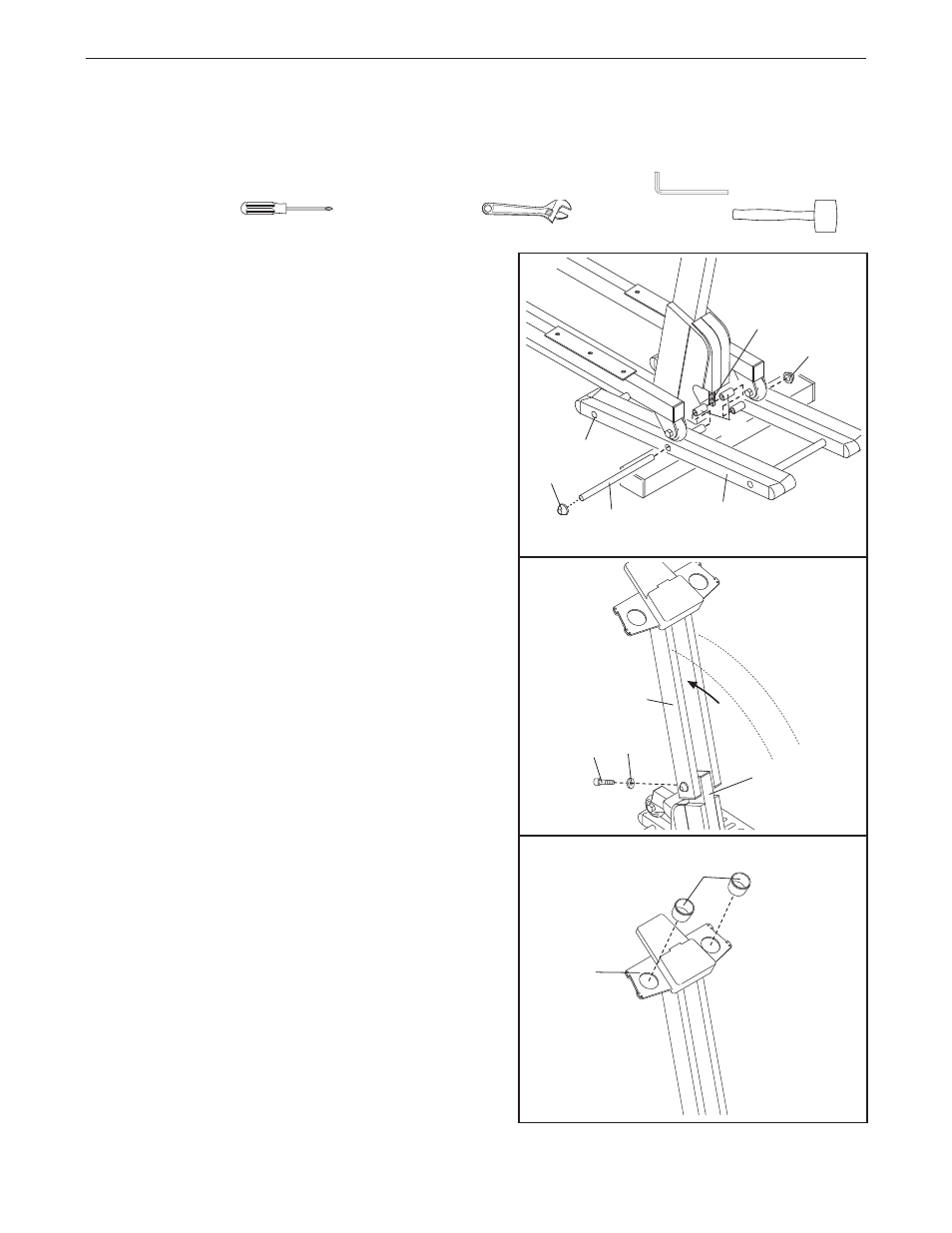

1. Note: Make sure that the two 5/16” x 1” Screws (76)
are loose.
Tap a 1/2” Axle Cap (39) onto one end of the Incline
Motor Axle (14). With the help of a second person,
raise the Incline Frame (7). Insert the Incline Motor
Axle through one side of the Incline Frame, through
a Plastic Spacer (91), through the end of the motor
screw, through another Plastic Spacer (91), and
through the other side of the Incline Frame.
Tap a 1/2” Axle Cap (39) onto the other end of the
Incline Motor Axle (14).
Tighten the two 5/16” x 1” Screws (76).
2. Raise the Upright (3). Slide the 3/8” Washer (94)
onto the Patch Bolt (90). Secure the Upright by tight-
ening the Patch Bolt (90) into the Base Frame (1).
3. Secure the Cup Holders (87) in the console plate by
tapping the Cup Holders into the indicated holes.
