IMPORTANT! Before installing this control make sure the

position of the dip switches of the transmitter and receiver are

matched. If they are not matched, the control will not function.
Select different combinations of dip switches for each fan instal-

lation in the house to prevent interference of one control with

another. See Figure 6.
IMPORTANT! When you change dip switches, make sure the

battery is not connected to the transmitter.

Install a fresh 9-volt battery into the transmitter (battery not

supplied).
Place the receiver inside the canopy. First make sure the oval

shaped holes in the bottom of the receiver and dip switches

are facing down, toward the bottom of the canopy. Spread the

receiver lead wires to each side and feed the wires from the top

of the fan through the open slot in the receiver. Now place the

receiver into the canopy making sure the slot in the receiver

is aligned with the hook in the ceiling plate. When properly

installed the hook in the ceiling plate will fit inside the open

slot of the receiver. If the hook and slot do not line up with each

other, rotate the receiver until the two parts align. The canopy

can not be attached to the ceiling plate unless the hook is posi-

tioned in the receiver slot.

Connect electrical supply leads from the motor, using

approved connectors. Connect the yellow from the fan to the

yellow from the receiver, pink from the fan to the pink from

the receiver, grey from the fan to the grey from the receiver and

the black with white tracer from the fan to the black with white

tracer from the receiver.
Connect the red and white wires from the fan with the white

from the receiver to the white power (common) wire. Connect

the larger black wire from the receiver to the black power wire.
Run the thin white antenna wire from the receiver through one

of the slots in the ceiling plate and outside the canopy (when

installed). See Figure 6A.
Connect the ground wire to the green lead wires from the ceiling

plate and the hanger ball.
After wiring is completed, check all connections to ensure that

they are tight and there are no bare wires visible at the wire

connectors.
CAUTION: No bare wire or wire strands should be visible after

making connections.

After making the wire connections, the wires should be

spread apart with the white and green wires on one side of the

outlet box and the other wires on the other side of the outlet box.
The splices should be turned upward and pushed carefully into

the outlet box.

Step 7: Finish Hanging Fan

The ceiling plate has (3) mounting screw holes located on

the side. Install (2) #10-32 x 1/2” Phillips round head screws

halfway into two of these holes. See Figure 7.
Remove the fan from the ceiling plate hook. Make sure not to

break any wire connections. The canopy has (2) mating slots

and (1) mating hole. See Figure 7.

Position (2) slots in canopy directly under and in line with

(2) mounting screws in ceiling plate. Lift fan until ceiling plate

mounting screws are seated in bottom of slots in canopy. Rotate

fan counterclockwise until both mounting screws drop into slot

recesses. Tighten screws securely. Install third screw in mount-

ing hole.
CAUTION: Failure to properly tighten the (3) screws could

result in the fan falling.
NOTE: For the ball hanging fan configuration make sure the (2)

grooves in the ball are engaged with the (2) tabs in the canopy.
Failure to do so could result in the fan falling. See Figure 5C.

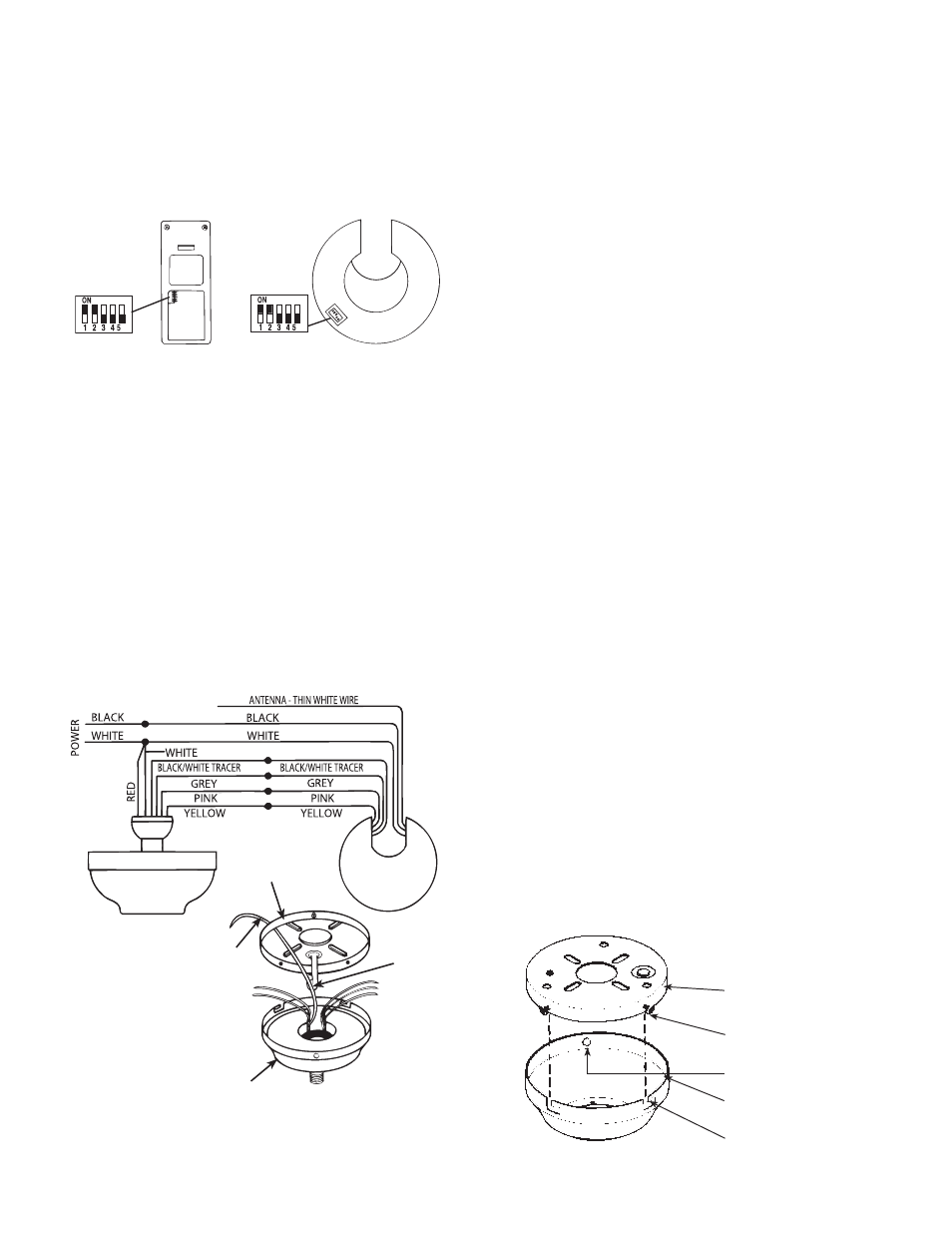

FIGURE 6

DIP

SWITCHES

DIP

SWITCHES

TRANSMITTER

RECEIVER

FIGURE 6A

CANOPY

FAN

RECEIVER

CEILING

PLATE

ANTENNA

HOOK

CANOPY

FIGURA 7

CEILING PLATE

MOUNTING SCERW

MOUNTING HOLE

CANOPY

MOUNTING RECESS
